Step 4:
If you have Wireless camera pod from NEX Robotics and USB TV Tuner card then you can also
see the video on the GUI.
For more information on the installation and usage process, refer to documentation of the
wireless camera pod.
Follow these steps for video acquisition:
1. Connect USB TV Tuner card with PC and wait for 5 seconds.
2. Start the Fire Bird V robot's GUI
3. In the video window, select devices as USB TV Device. This option will be visible only
if USB TV Tuner card is installed and connected.
4. Press start button to acquire the video.

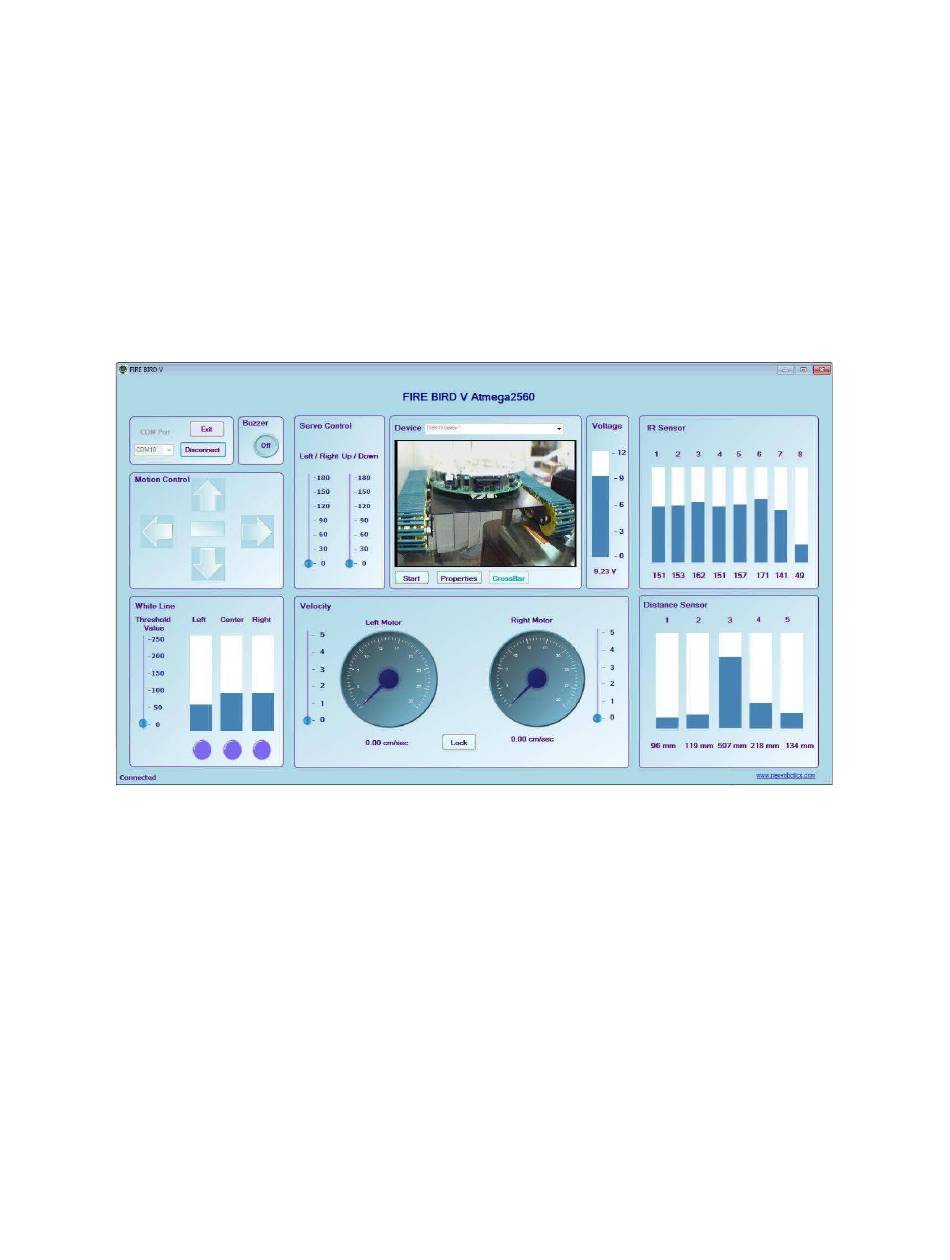

Figure 7.4 : Video display on the Fire Bird V robot's GUI
