Fire Bird V ATMEGA2560 Hardware Manual
5.3 LCD mounting

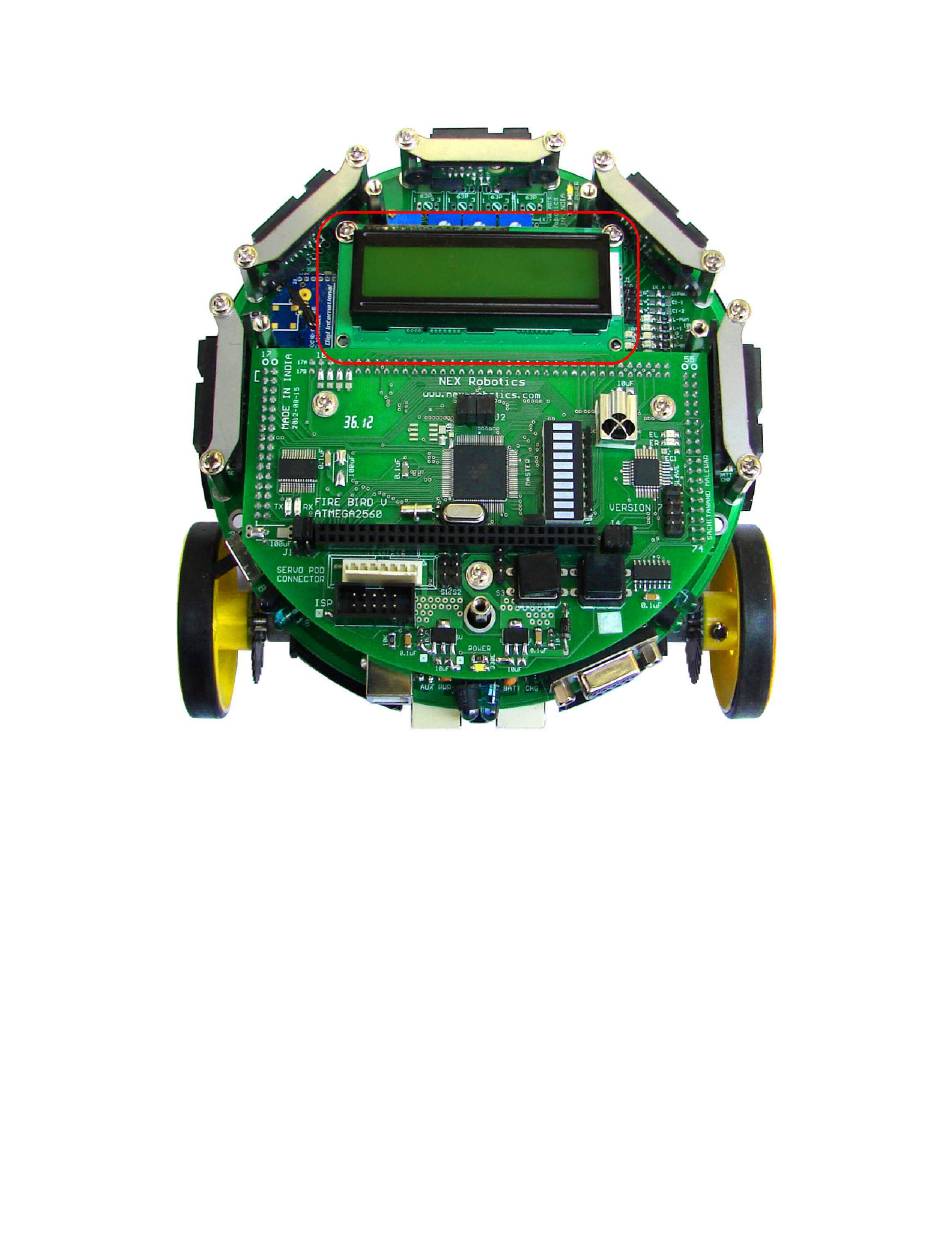

Figure 5.4: LCD mounting
• Be careful while inserting LCD connector pins into the socket on the main board. Screw in
the LCD firmly on the studs.
© NEX Robotics Pvt. Ltd. and ERTS Lab, CSE, IIT Bombay, INDIA
90
