Distech Controls ECLYPSE Installation Manual page 7

ECY-8UI, ECY-6UO, ECY-6UO-HOA, ECY-4UI4UO, ECY-4UI4UO-HOA, ECY-8UI6UO, ECY-8UI6UO-HOA,
ECY-8UI6DOT, and ECY-8UI6DOT-HOA
These IO modules have the following onsite configurable DIP switches located inside the cover. Orient the circuit board as shown in the figure below.

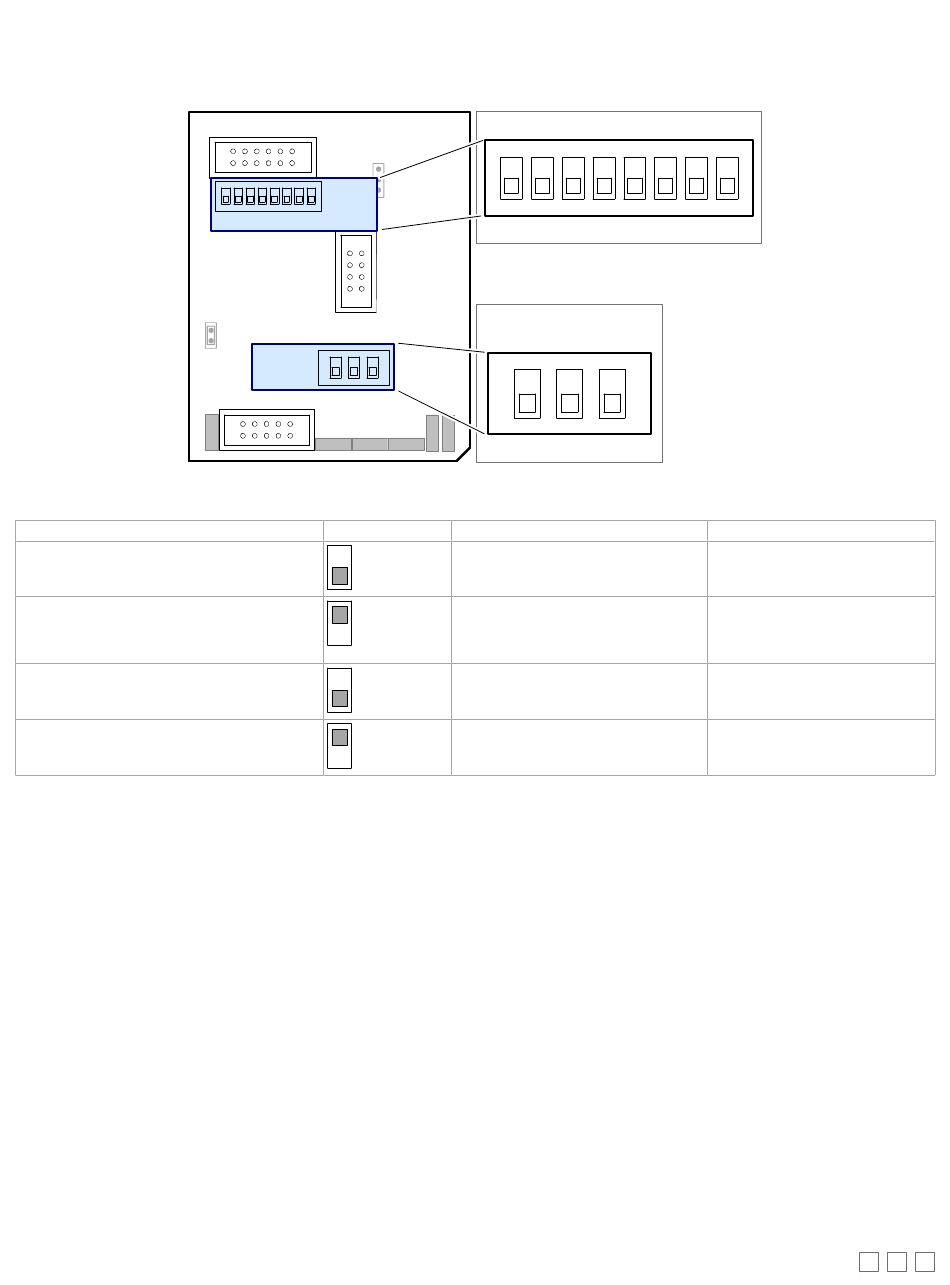

Figure 11: IO Module DIP Switch Configuration Options
Table 1: IO Module DIP Switch Configuration Options
Applies to IO Module Models
ECY-8UI, ECY-4UI4UO,
ECY-8UI6UO,
ECY-8UI6DOT, and ECY-8UI6DOT-HOA
ECY-8UI, ECY-6UO,
ECY-4UI4UO, ECY-4UI4UO-HOA, ECY-8UI6UO,
ECY-8UI6UO-HOA, ECY-8UI6DOT,
ECY-8UI6DOT-HOA
ECY-6UO, ECY-6UO-HOA,
ECY-4UI4UO-HOA, ECY-8UI6UO,
ECY-8UI6UO-HOA
ECY-6UO, ECY-6UO-HOA,
ECY-4UI4UO-HOA, ECY-8UI6UO,
ECY-8UI6UO-HOA
* Factory-default position
IO Module Status LED
The UI1 LED on IO Modules blinks while the module is booting up.
ECY-RS485
The ECY-RS485 has the following onsite configurable DIP switches located inside on the base. Orient the circuit board as shown in the figure below.
ON
O N
OFF
1 2 3 4 5 6 7 8
0-20mA
UI Input Option
Configuration
UO Output Option Configuration
0-20mA ·1 ·2 ·3
0-10V
· · ·
DIP Switch Position Input / Output Option Configuration Type Available Signal Type Options
ECY-4UI4UO-HOA,
ECY-8UI6UO-HOA,
*
ECY-6UO-HOA,
and
ECY-4UI4UO,
and
*
ECY-4UI4UO,
and
UI Input Option Configuration
O N
1 2 3 4 5
UI1 UI2 UI3 UI4 UI5 UI6 UI7 UI8
UO Output Option
Configuration
·1 ·2 ·3
· · ·
UO1 UO2 UO3
UI Input option configuration
UI Input option configuration
UO Output option configuration (UO1,
UO2, and UO3)
UO Output option configuration (UO1,
UO2, and UO3)
6 7 8
Contact, Counter, 0 to 10VDC, 0 to
5VDC, Resistance, Thermistor
0 to 20mA
0 or 12VDC, PWM, Floating, 0 to
10VDC
0 to 20mA
