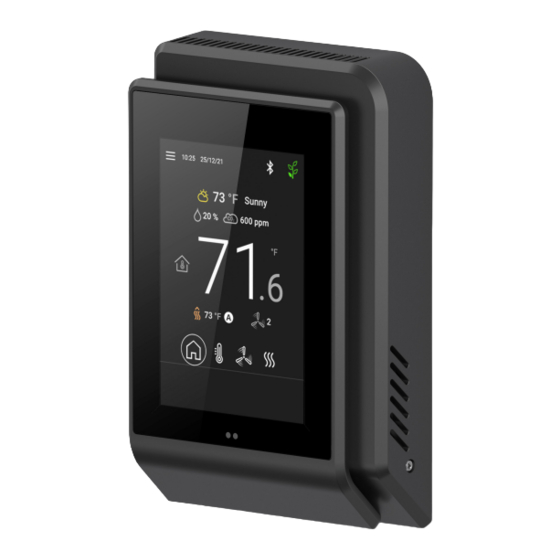

ECLYPSE Connected Thermostat
Product Description
The ECLYPSE Connected Thermostat (ECY-STAT) is geared towards new or existing rooftop unit, heatpump unit, fancoil unit and other zone control ap-
plications. It features a touchscreen interface, multiple connectivity options (both wired IP and Wi-Fi) for system communication, and Bluetooth
ergy (BLE) for mobile connectivity.
General Installation Requirements
For proper installation and subsequent operation of the device, pay special attention to the following recommendations:
£
Allow for proper clearance around the device's enclosure and wiring terminals to provide easy access for hardware configuration and maintenance.
£
Orient the device with the ventilation slots towards the top to permit proper heat dissipation.
£
The device is designed to operate under the following environmental conditions:
– Operating temperature from 32°F to 104°F (0°C to 40°C)
– Storage temperature from -4°F to 122°F (-20°C to 50°C)
– Relative humidity from 0% to 90%, non-condensing.
£
Upon unpacking, inspect the contents of the carton for shipping damages. Do not install a damaged device.
£
Ensure proper ventilation of the device and avoid areas where corroding, deteriorating or explosive vapors, fumes or gases may be present.
£
Do not install the device in a location with direct airflow to ensure correct temperature regulation.
£
If the device is used and/or installed in a manner not specified by Distech Controls, the functionality and the protection provided by the device may
be impaired.
£
SELV (Separated Extra Low Voltage) inputs/outputs must be connected to other SELV equipment inputs/outputs.
Any type of modification to any Distech Controls product will void the product's warranty
Take reasonable precautions to prevent electrostatic discharge to the device when installing, servicing or during operation. Discharge
accumulated static electricity by touching one's hand to a well-grounded object before working with the device.
General Wiring Recommendations
£
Comply with all network and power supply guidelines outlined in the Network Guide.
£
Use the screws, wall anchors, and wire nuts included for wall mounting and wiring.
£
All wiring must comply with electrical wiring diagrams as well as national and local electrical codes.
£
For an easier installation, a flat style Cat5e cable with a low profile connector is recommended. See Distech Controls Field Device product offerings
for more information.
I n s t a l l a t i o n G u i d e
®
low en-
