Test Results Menu

Test Results Introduction

Test results are where comparative data on leak test results is viewable. Based on this information an operator or
supervisor can make quality control decisions on current production runs.

Test Result Descritption Table

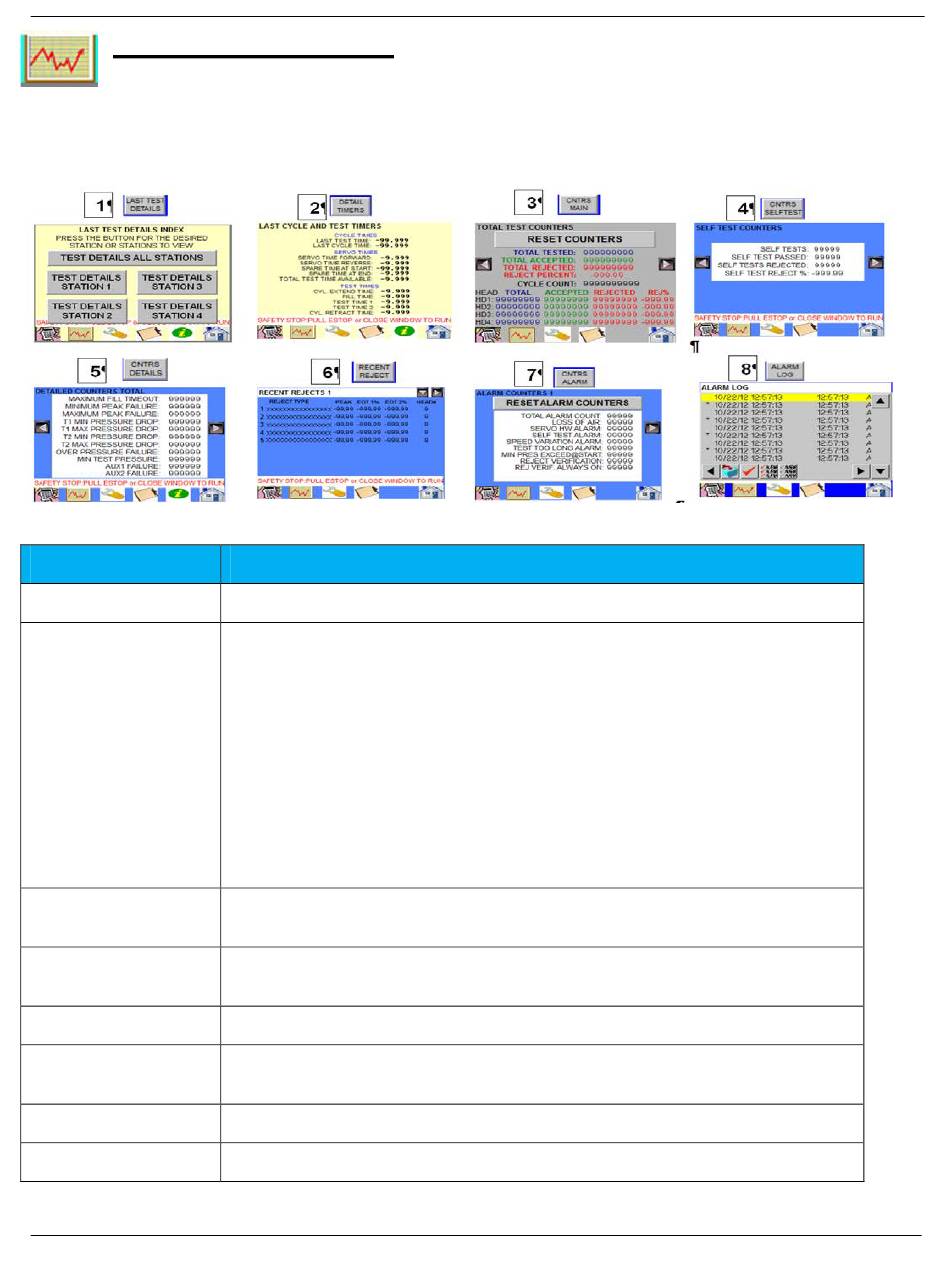

Test Result Display
1. Last Test Detail
2. Detail Timers
3. Counters Main
4. Counters Self-Test
5. Counters Details
6. Recent Reject
7. Counters Alarm
8. Alarm Log
SPEEDGLIDER  ADVANCED OPERATOR MANUAL
Provides real time test details, overall or per head
•
CYCLE TIMES:
signal to test head 1 probe retract time expires. The Last Cycle Time is
from the servo Go to the Servo returned to zero. These perimeters can
help determine available leak test time.
•
Servo Times: These time are used to help determine servo Alarms the
key is to have "Spare Time at Start and End" to avoid Servo timing
Alarms. See information help screens on SpeedGlider HMI on how to
use spare time.
•
Test Times: The Cycle Extend, Fill Time, Test 1, Test 2, and Cycle
Retract Time shows the current time settings for easy comparison to
the cycle time. These times combined should not exceed the cycle
time, however in using all available test time it should be close
Total counts, overall and per test head, for leaks test performed, accepted,
rejected and reject %
Total counts, overall and per self-test head, for self- test performed, passed,
rejected and self-test reject %.
Total counts for each possible type of leak test reject
The latest reject type, the peak pressure value, the pressure decay % at the
end of Test 1 and Test 2, and on what head it occurred on.
Total counts (how many times they occurred) for every possible alarms
Alarm tracking time stamp details
Description
The "Last Test Time" is measured from servo "Go"
