Jokab Door Sensors: Positions

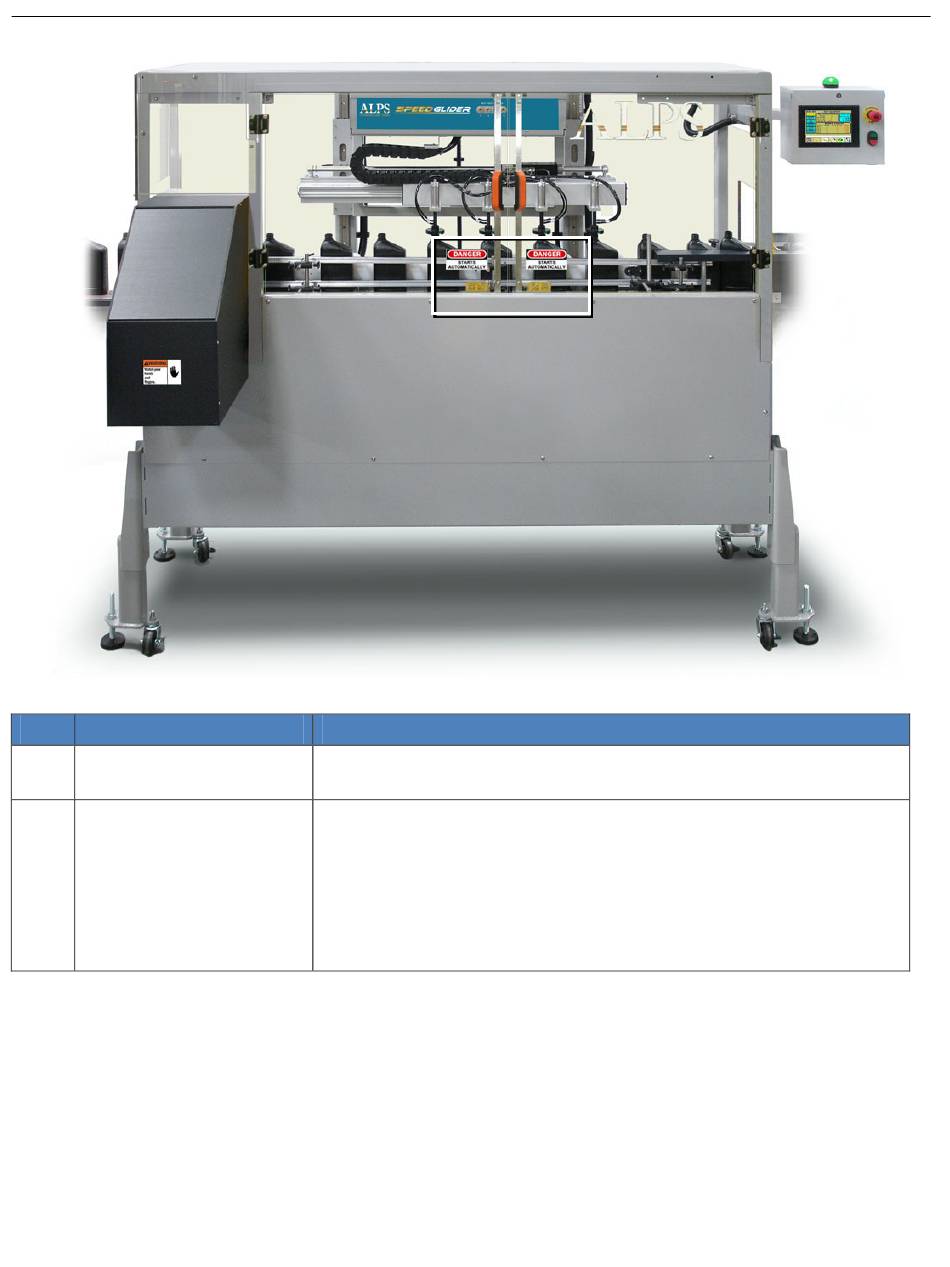

TABLE 1: Door Mounted Safety Switch Locations (from previous page).
ITEM COMPONENT
1 Jokab Door Switches
2 Guard Assembly
FUNCTION
Category 4 rated-pulsed signal non-contact switch. These work the
same as the one in the emergency stop on HMI touch screen panel.
Protects personnel during operation from moving components that are
located inside the enclosure. Plexiglass doors and panels are
designed to limit access to the machine during operation. The doors
have safety interlocks which will stop the machine if a door is opened
while the machine is running. Both doors must be closed before the
machine can be restarted. The colored LED atop the HMI control box
will return to steady green.
SAFETY
