AIR LOGIC POWER SYSTEMS (ALPS)

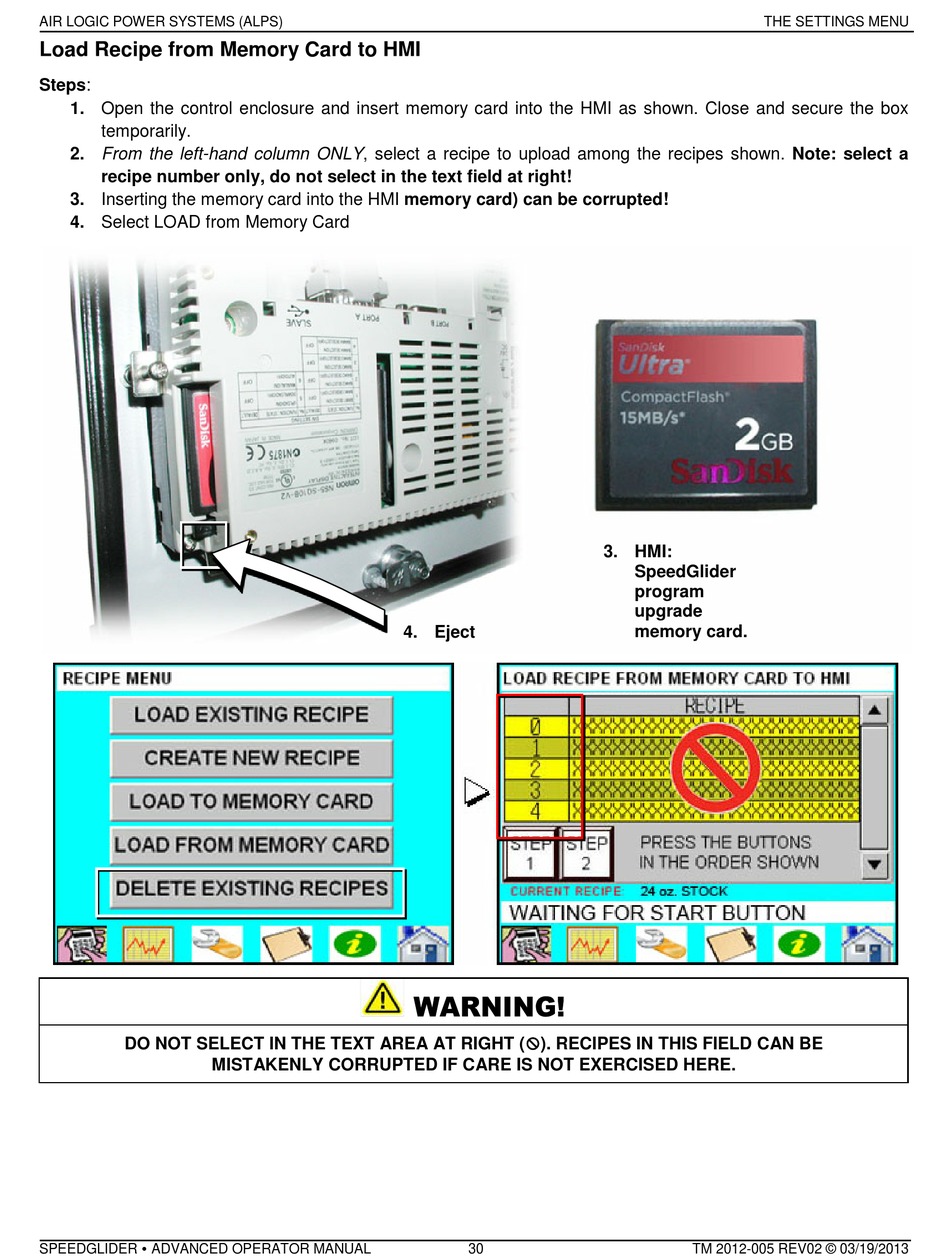

Load Recipe from Memory Card to HMI

Steps:
1. Open the control enclosure and insert memory card into the HMI as shown. Close and secure the box
temporarily.
2. From the left-hand column ONLY, select a recipe to upload among the recipes shown. Note: select a
recipe number only, do not select in the text field at right!
3. Inserting the memory card into the HMI memory card) can be corrupted!
4. Select LOAD from Memory Card
DO NOT SELECT IN THE TEXT AREA AT RIGHT (). RECIPES IN THIS FIELD CAN BE
MISTAKENLY CORRUPTED IF CARE IS NOT EXERCISED HERE.
SPEEDGLIDER  ADVANCED OPERATOR MANUAL
4. Eject
30
THE SETTINGS MENU
3. HMI:
SpeedGlider
program
upgrade
memory card.
TM 2012-005 REV02 © 03/19/2013
