Photo Eye Settings Introduction

The proper set up timing of the photo eyes is critical to the speed mode operations of the SpeedGlider. The

CURRENT PHOTO-EYE STATUS can help set up the proper delays described in the speed mode section. The

delays are set on the photo eyes themselves (not HMI) and usually accomplished by an ALPS Technician at

installation. However, on occasion there may be need for adjustments. When the status indicator is "Green" that

Photo Eye is sending the signal to the SpeedGlider PLC. Remember because of the delays the ON or OFF signal

may not occur when initially blocking the Photo Eye.

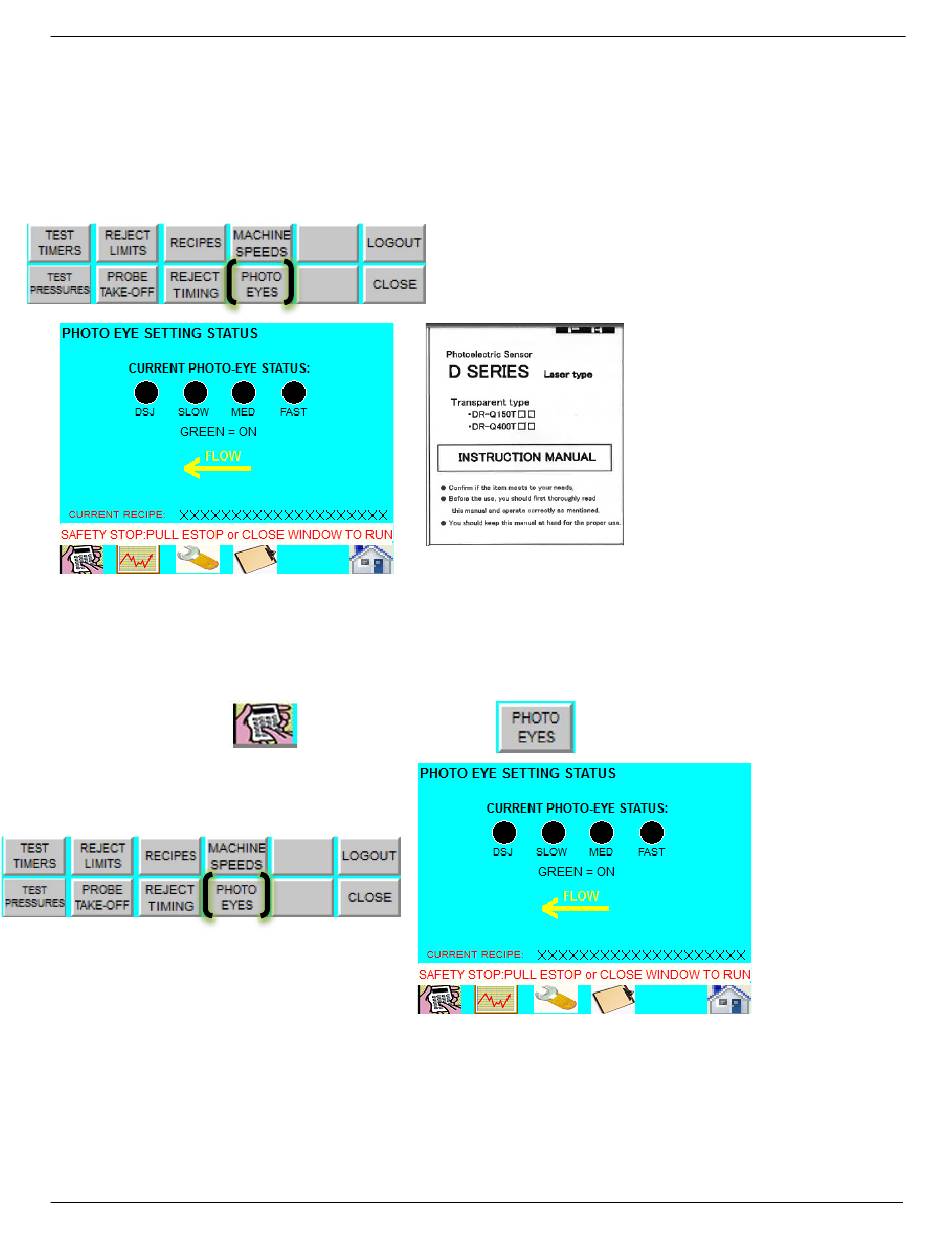

Select Setting Menu

SPEEDGLIDER  ADVANCED OPERATOR MANUAL

then

select


THE SETTINGS MENU

Refer to the Photo Eye D-series

instruction manual including in the

shipping materials for timing delay

setup.
