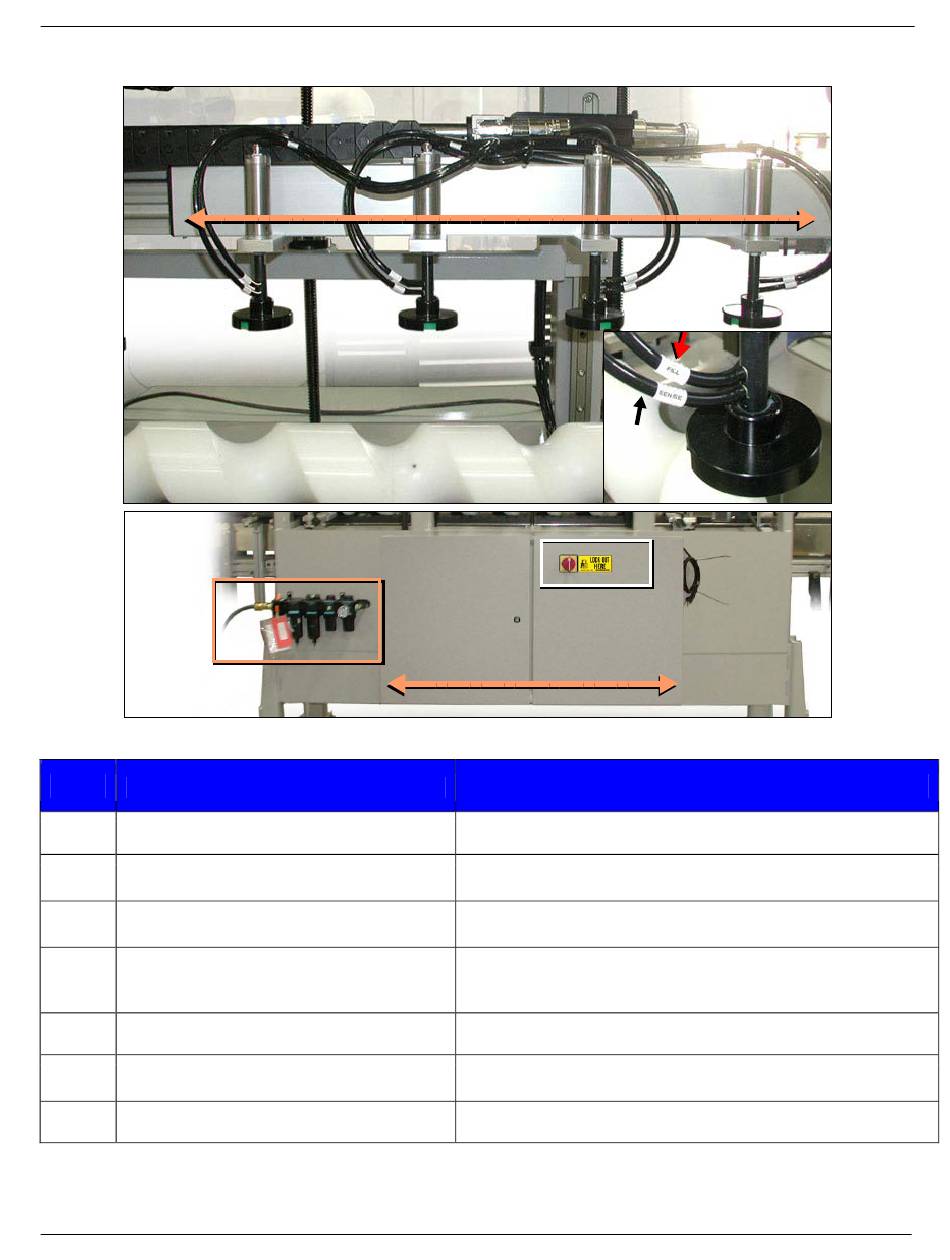

SpeedGlider Main Features

Table 1-2: Operational Components
Item
1 Carriage/Slide: Test Probe Head
2
Sense Line
3 Fill Line
4
Timing Screw
5 Electrical Enclosure
6 Airflow Shut-Off and Filter System
7
Main Power Switch
SPEEDGLIDER  ADVANCED OPERATOR MANUAL
6
COMPONENT
1
2
SENSE
4
7
5
Function
Main operating component where testing takes place.
Outgoing air line for pressure results.
Incoming air line for pressurized inflation.
Advances, synchronizes, and spaces the containers for
test sequence.
Contains essential electronics to run the machine.
Airflow pressure control and filtration.
Controls incoming power to the machine.
15
INTRODUCTION
3
FILL
TM 2012-005 REV02 © 03/19/2013
