Reject Timing Introduction; Reject Timing Navigation - Alps Electric SPEEDGLIDER Operator's Manual

AIR LOGIC POWER SYSTEMS (ALPS) THE SETTINGS MENU

Reject Timing Introduction

Reject timing contains the encoder positions that tell the SpeedGlider when and where to reject a defective
container. When making changes to these setting it is very important to test and verify that the failed leak test
container is being rejected and not good containers. Follow the on screen instructions for setting the reject timing.

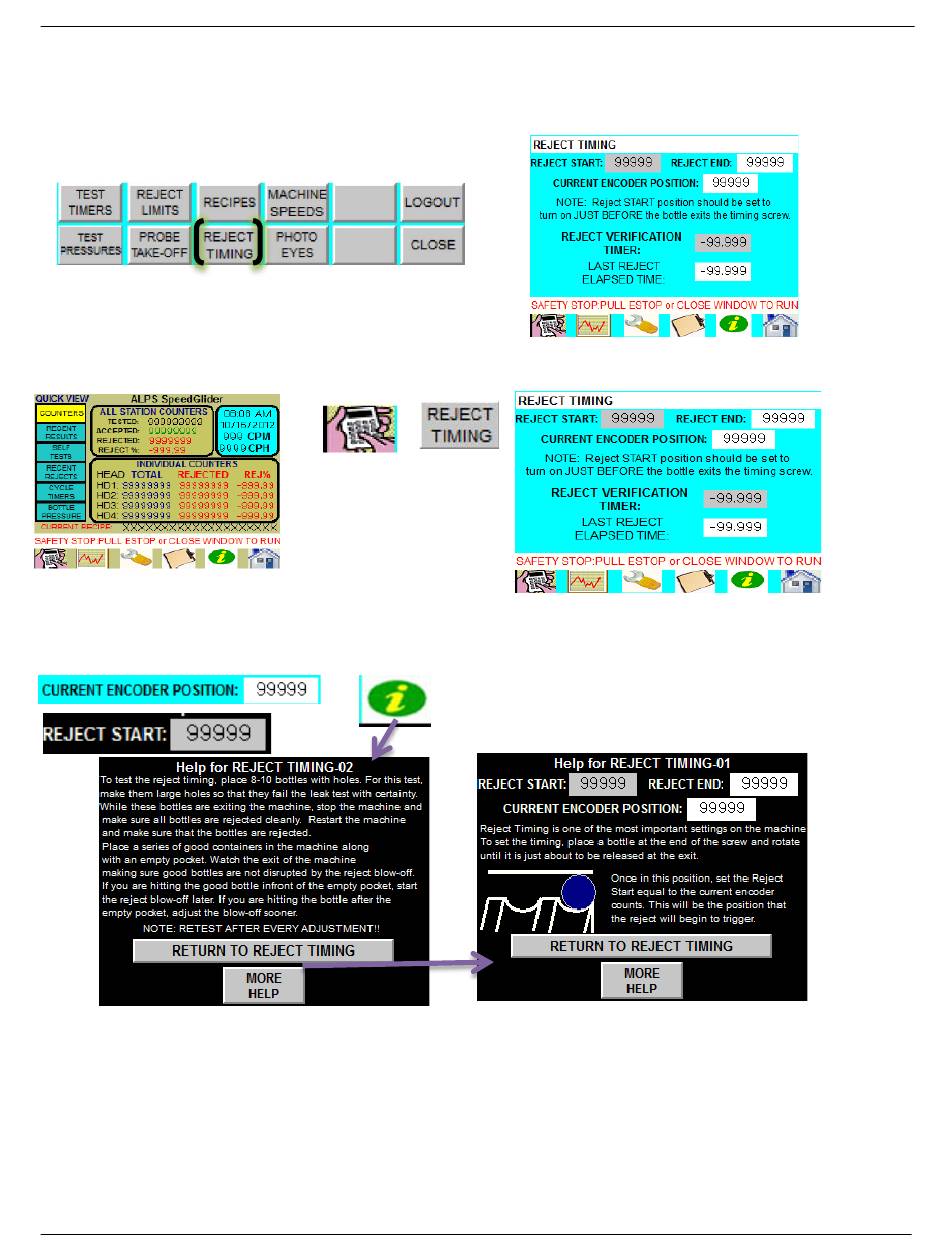

Reject Timing Navigation

From the Home Screen select the Setting Menu then select Reject Timing
Select Reject Start to enter the current encoder value. Reject end is a fixed position and no entry here is possible
SPEEDGLIDER  ADVANCED OPERATOR MANUAL
32 TM 2012-005 REV02 © 03/19/2013
