AIR LOGIC POWER SYSTEMS (ALPS)

Viewing and editing HMI Displays

A password is required for viewing and editing some displays. If not previously logged in, when attempting to edit
or change settings a password login pop up box and keyboard will appear. The SpeedGlider ships with a default
password.

Password Protected Options and Settings

The options and settings features built into the SpeedGlider ™ are password-protected. This is done to

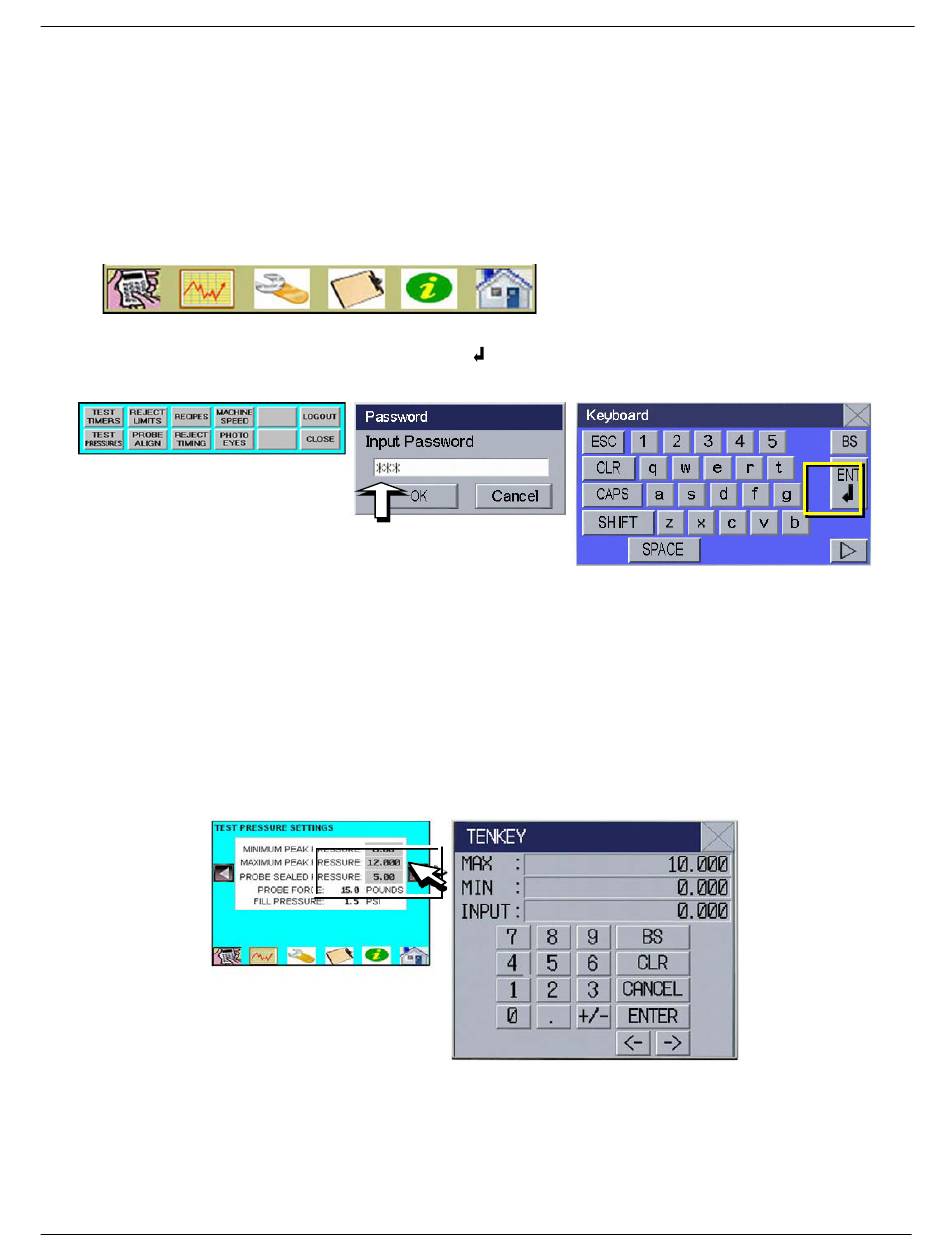

1. Sample password access sequence
adjustments as required.
Steps:
1.
2. A password prompt screen appears. Touch the white area.
3. Enter your PASSWORD and touch ENTER (ENT
4. Press OK.

Creating and changing On-Screen Variables, Values, and Settings

There are screen values and settings that can be changed from time to time.

Changing settings and values using the TENKEY screen

Steps:
1. Press on any grayed out information box.
2. Enter the new value at (INPUT) on the TENKEY keypad and press ENTER.
The new information is displayed. A built-in fail-safe prevents values from exceeding MINIMUM and
MAXIMUM limits. Touch CLR (clear) to clear an errant value. Touch BS (back space) to correct a mistake.
Click CANCEL to nullify entry. Note: Values in white background areas are readings and view only.
SPEEDGLIDER  ADVANCED OPERATOR MANUAL
ensure that only authorized personnel have access to make
Select an option from the HOME SCREEN.
) on the keypad screen at right.
16
