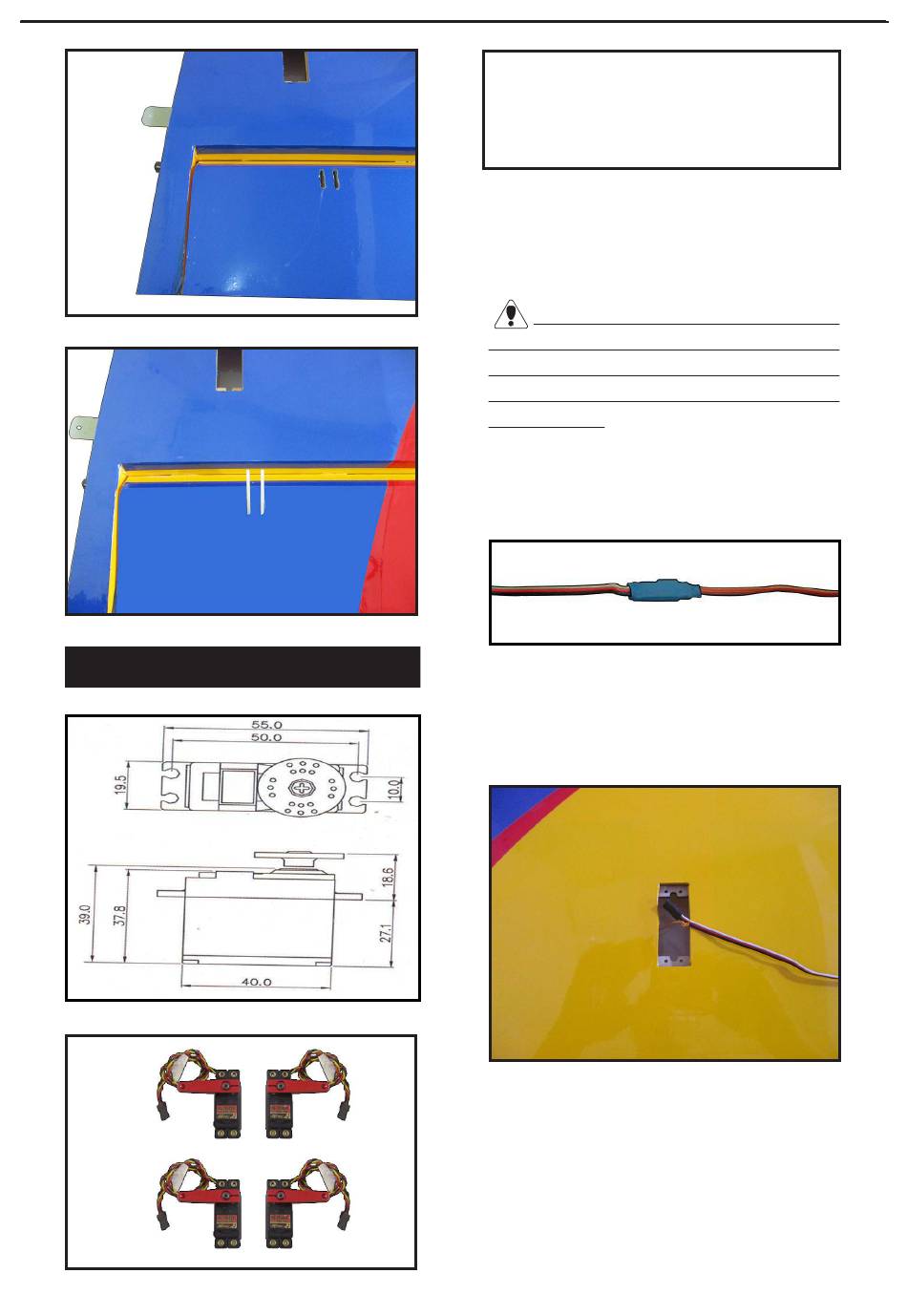

INSTALLING THE AILERON SERVOS

1.
2.
Minimum servo spec.
Torque : 333.00 oz-in (23.98 kg-cm) @
6.0V; oz-in (29.02 kg-cm) @ 7.4V
Install the rubber grommets and brass
collets onto the aileron servo. Test it the
servo into the aileron servo mount.
Because the size of servos difer, you
may need to adjust the size of the precut
opening in the mount. he notch in the
sides of the mount allow the servo lead to
pass through.
Use dental loss to secure the connec-
tion so they cannot become unplugged.
3.
Using a small weight (Weighted fuel
pickup works well) and thread, feed the
string through the wing as indicated.
4.
Attach servo lead to the aileron servo.
Attach the string to the servo lead and
carefully thread it though the wing. Once
you have thread the lead throught the
wing, remove the string so it can use for
the other servo lead.
