6.3.2
Board power supply - Hardware configuration
The power supply is configured by setting the related jumpers JP3, JP29 and JP37 as described in
Jumper
JP3
JP29
UM2662 - Rev 1
Table 9.
Power related jumpers
JP3 is used to measure current consumption manually with a multimeter.

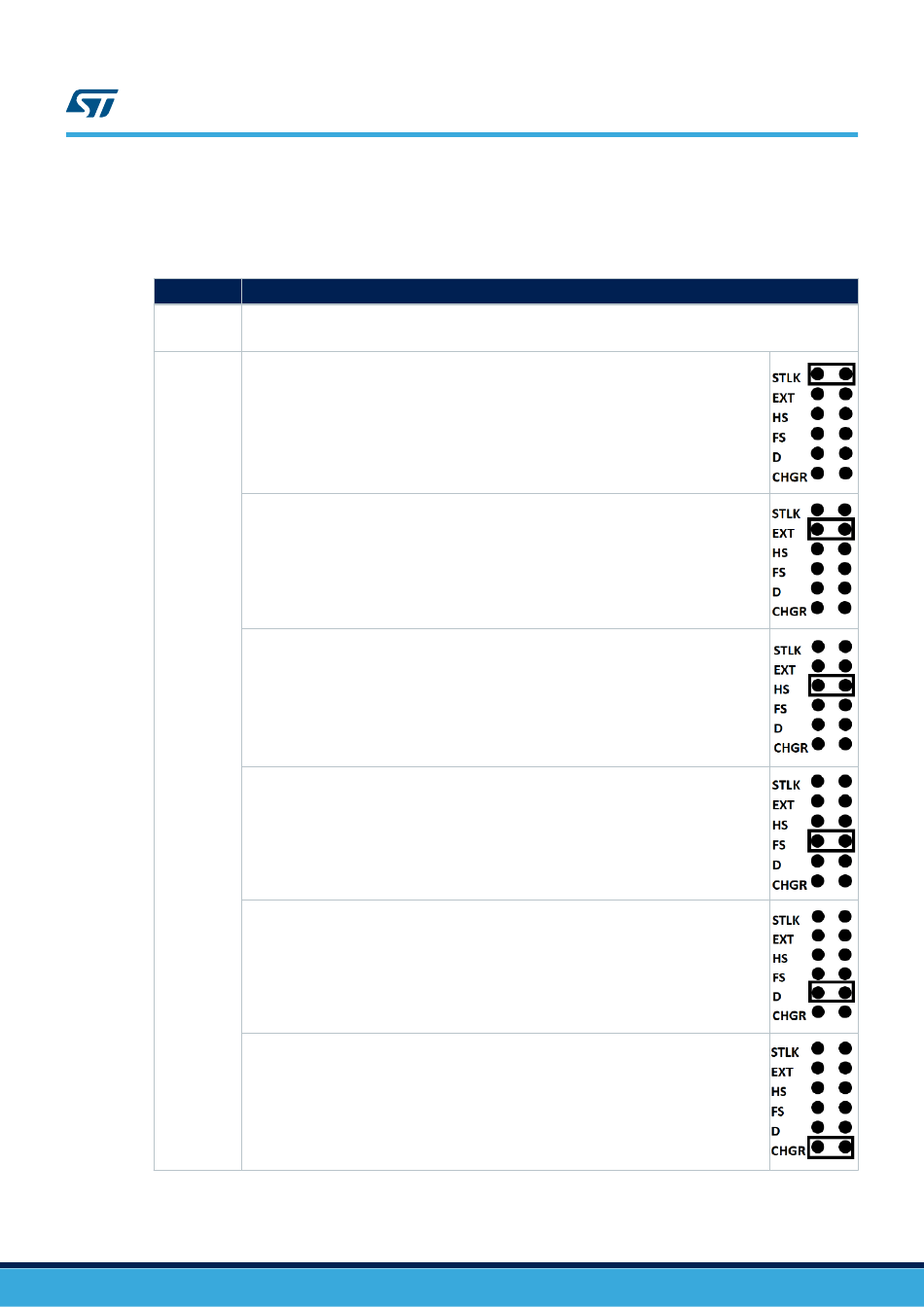

JP29 is used to select one of the six possible power supply resources:
For power supply from USB connector of STLINK-V3E (CN21) to
STM32H7B3I-EVAL, JP29 is set as shown on the right.
For power supply jack(CN17) to the STM32H7B3I-EVAL,
JP29 is set as shown on the right.
For power supply from USB OTG HS (CN14) to STM32H7B3I-EVAL,
JP29 is set as shown on the right.
For power supply from USB OTG FS (CN27) to STM32H7B3I-EVAL,
JP29 is set as shown on the right.
For power supply from the daughterboard connectors (CN5 and CN6)
to STM32H7B3I-EVAL, JP29 is set as shown on the right.
For power supply from a USB wall charger plugged to CN21
to STM32H7B3I-EVAL, JP29 is set as shown on the right.
Description
(1)
ON
UM2662
Power supply
Table
9.
page 17/95
