En
inSTALLATiOn PROCEDURES
CAT6 network cable
Follow the standard of EIA/TIA-568B:
1 - Orange/white
2 - Orange
3 - Green/white
4 - Blue
5 - Blue/white
6 - Green
7 - Brown/white
8 - Brown

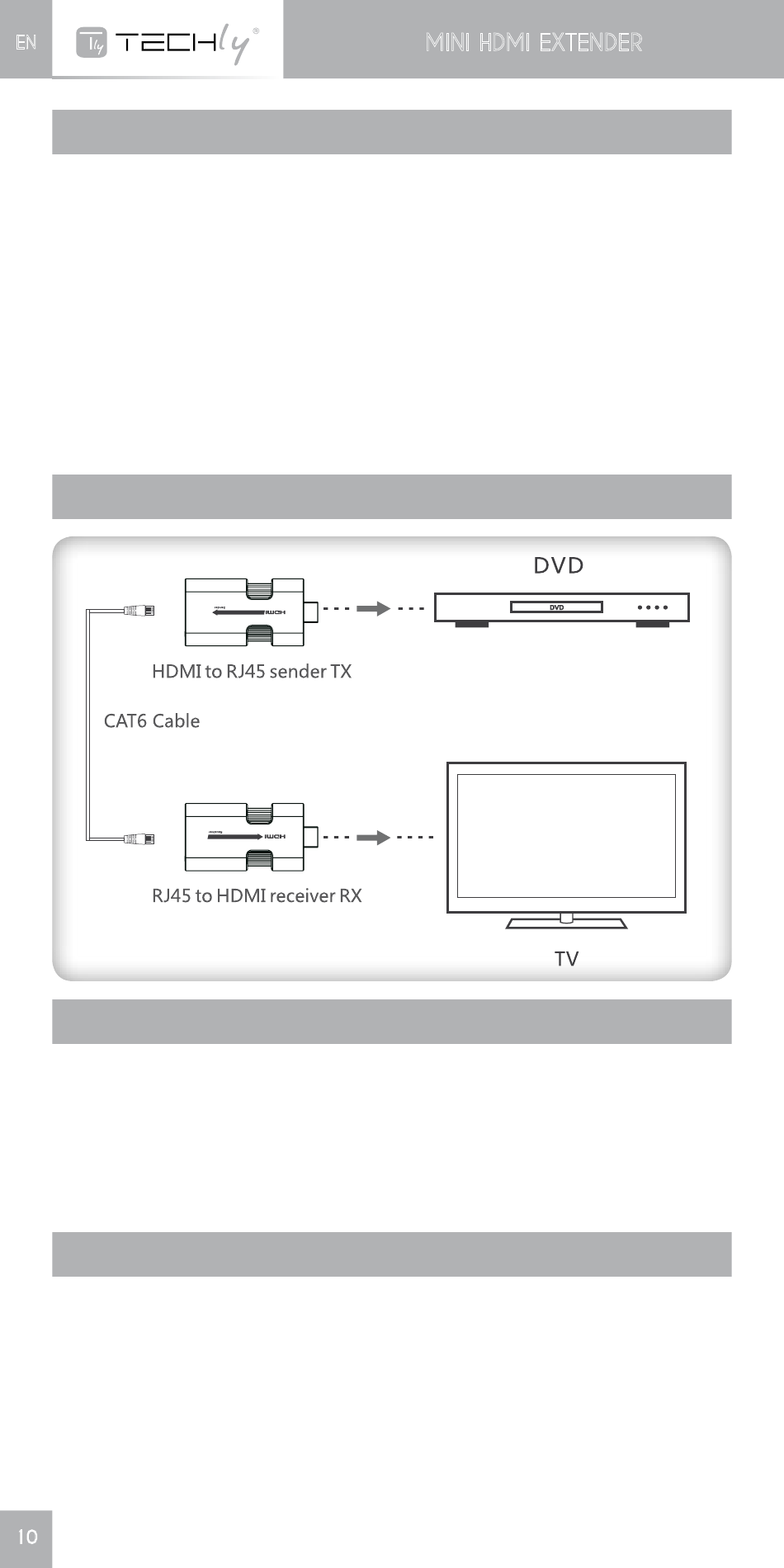

COnnECTiOnS
COnnECTiOn inSTRUCTiOn:
1) Connect TX HDMI input to source device HDMI output.
2) Connect TX RJ45 to RX RJ45 with CAT6 cable.
3) Connect RX HDMI output with HDTV HDMI input and set TV
source input signal to be the right HDMI channel.
4) Power on the device and it works.
RFQ
Q: no image output or audio and video display is not normal?
A: 1) Press RX "RESET" button to reset the device.
2) Try shorter network cable to reconnect.
Q: RX indicator led is flashing all the time?
A: 1) Make sure network cable connection follows the standard EIA/
TIA-568B.
2) Check whether TX has HDMI signal input.
3) Reset TX&RX and reconnect.
10
mini HDmi EXTEnDER
