4

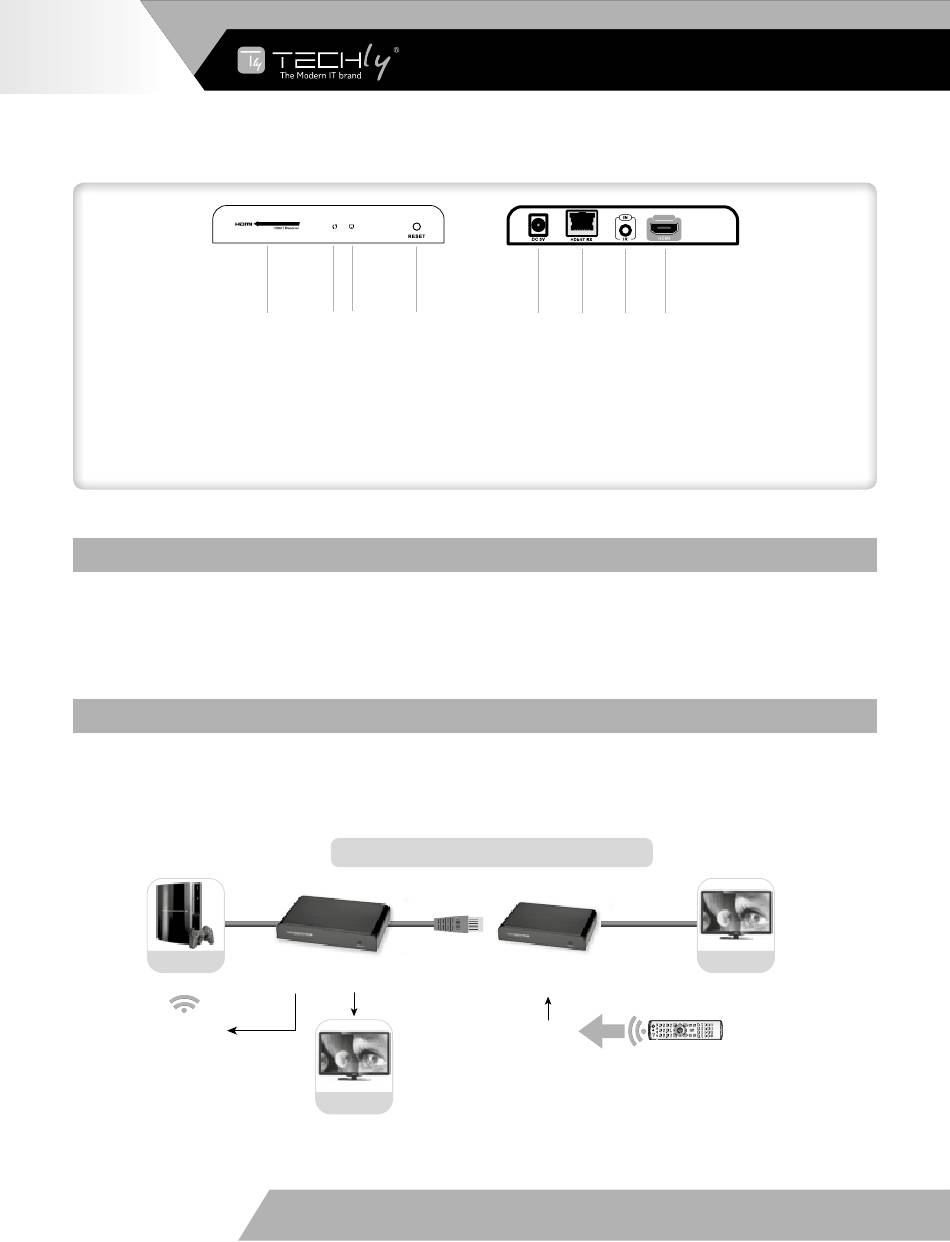

HDMI EXTENDER RX (Receiver)
➊
Power Light
➋
Data transmission light
➌
Network link light
➍
Reset
➎
Power input (DC5V)

INSTALLATION PROCEDURES

How to make a Cat5e/6 network cable
Follow the standard of EIA/TIA-568B:
1=Orange/white
2=Orange
3=Green/white
CONNECTIONS
Point to Point connection: Up to 120 meters transmission distance over single CAT6 (High quality
cable can reach 150 meters)
HDMI IN
PS3
PS3
HDMI Source
WWW.TECHLY.COM
➊ ➋➌ ➍
4=Blue
5=Blue/white
6=Green
POINT-TO-POINT CONNECTION
Cat5e/6 Cable
HDMI Extender
‹‹ ››
TX Sender
HDMI Display
ROUTER CONNECTION
HDMI SPLITTER/ EXTENDER OVER
SINGLE CAT5E/6 WITH IR
➎ ➏ ➐ ➑
➏
Signal input
➐
IR signal input to connect with IR
receiver extension cable
➑
HDMI signal output
7=Brown/white
8=Brown
HDMI OUT
HDMI Extender
‹‹ ››
RX Receiver
HDMI Display
