HDMI EXTENDER 4K@60HZ
①

INSTALLATION PROCEDURES

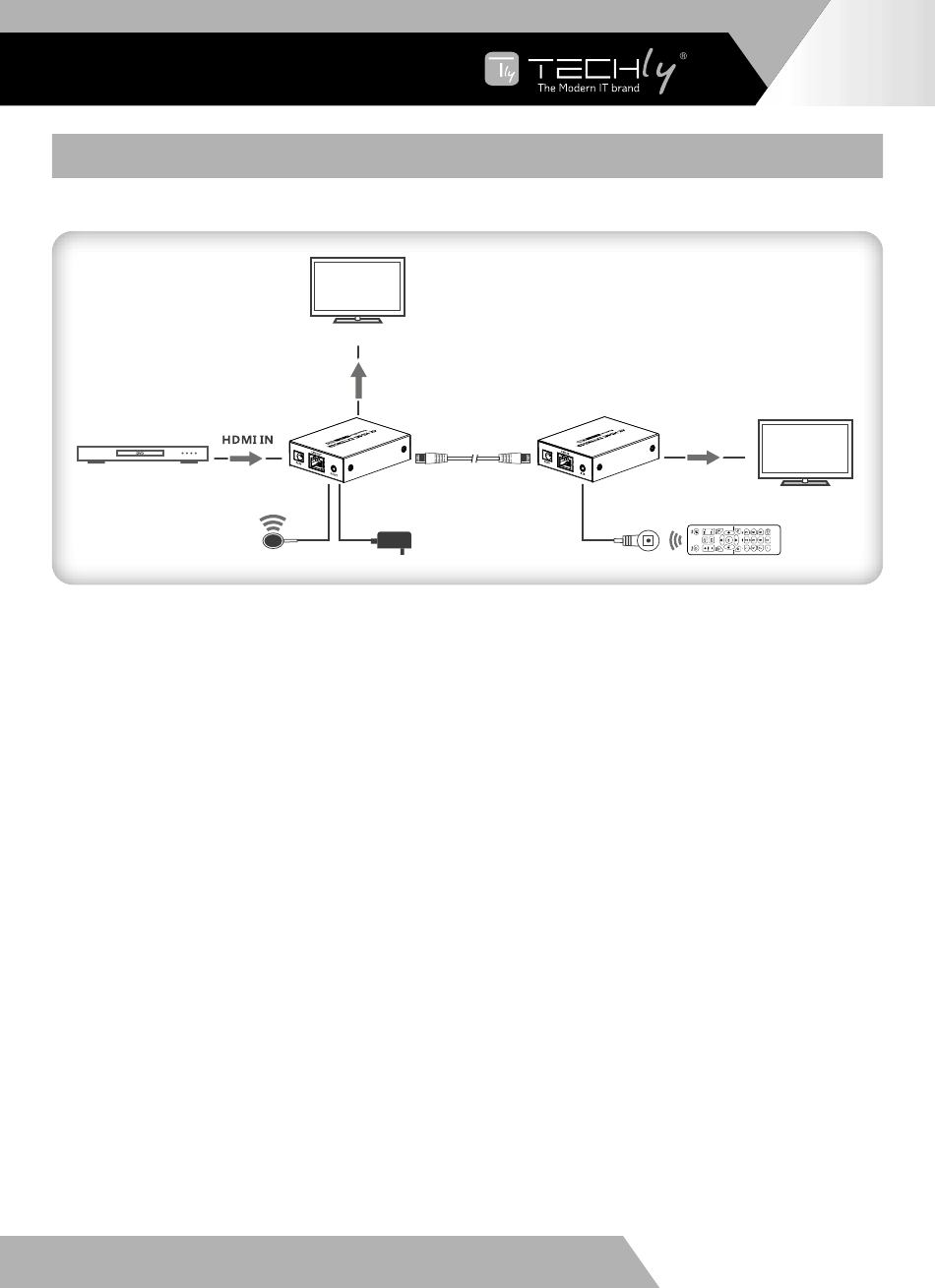

1. Connection Diagrams
Video Source
2. Connection Instructions
1) Connect the source device to the HDMI IN port of the transmitter with an HDMI cable, and connect
the HDMI OUT port of the receiver to the display device with another HDMI cable.
2) Use a Cat6/6A/7 cable to connect the RJ45 port of the transmitter and receiver.
3) If using HDMI loop out, connect the display device to the HDMI OUT port of the transmitter.
4) If using IR passthrough, the IR blaster extension cable should plug in the IR OUT port of the
transmitter, the IR receiver extension cable should plug in the IR IN port of the receiver.
5) Plug the power supply into the devices to get started.
IR blaster
② ③
H D M I D isp lay
TX
D C 5V
④ ⑤
N et w o rk cab le
Po C
RX
⑥
H D M I O U T
H D M I D isp lay
IR receiver
