Section Vii: Troubleshooting; Overview; Opening The Sqa-V; Closing The Sqa-V - MES SQA-V Gold Service Manual

SQA-V
and
NOTE:

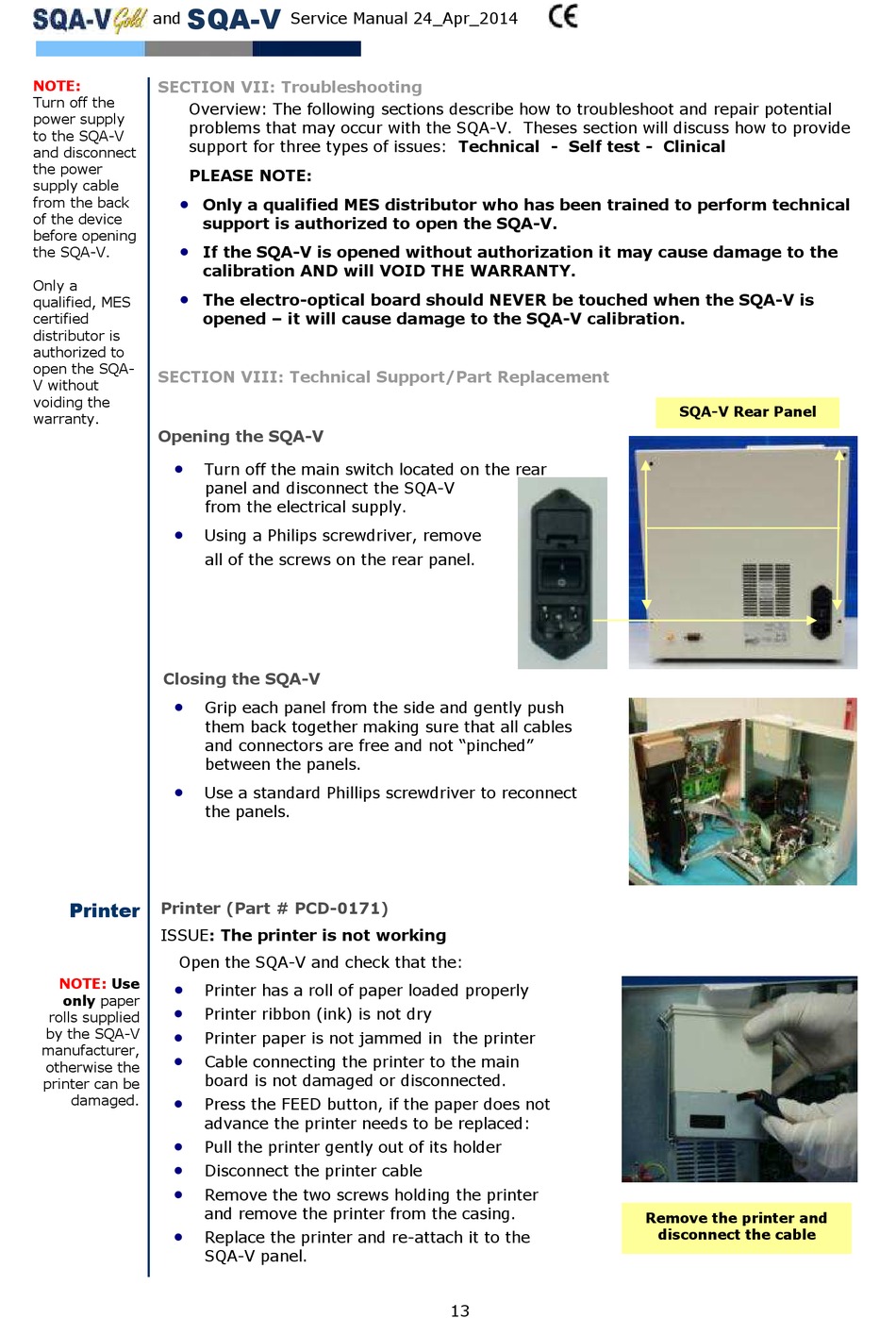

SECTION VII: Troubleshooting

Turn off the
Overview: The following sections describe how to troubleshoot and repair potential
power supply
problems that may occur with the SQA-V. Theses section will discuss how to provide
to the SQA-V
support for three types of issues: Technical - Self test - Clinical
and disconnect
the power
PLEASE NOTE:
supply cable

from the back
Only a qualified MES distributor who has been trained to perform technical
of the device
support is authorized to open the SQA-V.
before opening

the SQA-V. If the SQA-V is opened without authorization it may cause damage to the
calibration AND will VOID THE WARRANTY.
Only a

The electro-optical board should NEVER be touched when the SQA-V is
qualified, MES
opened – it will cause damage to the SQA-V calibration.
certified
distributor is
authorized to
open the SQA-
SECTION VIII: Technical Support/Part Replacement
V without
voiding the
warranty.

Opening the SQA-V




Closing the SQA-V



Printer (Part # PCD-0171)

Printer

ISSUE: The printer is not working
Open the SQA-V and check that the:

NOTE: Use
only paper

rolls supplied

by the SQA-V
manufacturer,

otherwise the
printer can be

damaged.




Service Manual 24_Apr_2014
Turn off the main switch located on the rear
panel and disconnect the SQA-V
from the electrical supply.
Using a Philips screwdriver, remove
all of the screws on the rear panel.
Grip each panel from the side and gently push
them back together making sure that all cables
and connectors are free and not "pinched"
between the panels.
Use a standard Phillips screwdriver to reconnect
the panels.
Printer has a roll of paper loaded properly
Printer ribbon (ink) is not dry
Printer paper is not jammed in the printer
Cable connecting the printer to the main
board is not damaged or disconnected.
Press the FEED button, if the paper does not
advance the printer needs to be replaced:
Pull the printer gently out of its holder
Disconnect the printer cable
Remove the two screws holding the printer
and remove the printer from the casing.
Replace the printer and re-attach it to the
SQA-V panel.
13
SQA-V Rear Panel
Remove the printer and
disconnect the cable
