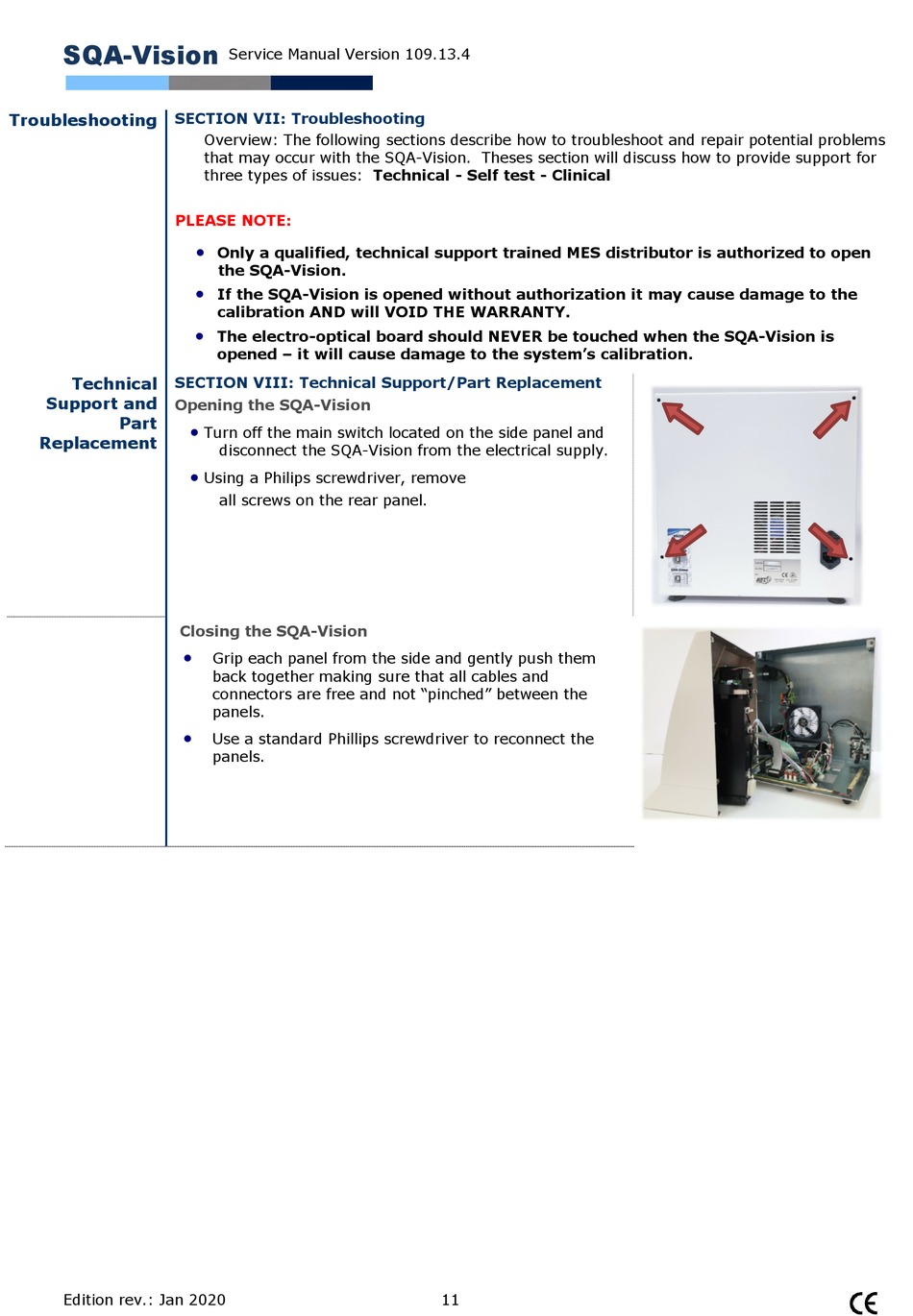

SQA-Vision
Troubleshooting

SECTION VII: Troubleshooting

PLEASE NOTE:
Technical SECTION VIII: Technical Support/Part Replacement
Support and

Opening the SQA-Vision

Part
Replacement
Edition rev.: Jan 2020
Service Manual Version 109.13.4
Overview: The following sections describe how to troubleshoot and repair potential problems
that may occur with the SQA-Vision. Theses section will discuss how to provide support for
three types of issues: Technical - Self test - Clinical

Only a qualified, technical support trained MES distributor is authorized to open
the SQA-Vision.

If the SQA-Vision is opened without authorization it may cause damage to the
calibration AND will VOID THE WARRANTY.

The electro-optical board should NEVER be touched when the SQA-Vision is
opened – it will cause damage to the system's calibration.

Turn off the main switch located on the side panel and
disconnect the SQA-Vision from the electrical supply.

Using a Philips screwdriver, remove
all screws on the rear panel.

Closing the SQA-Vision


Grip each panel from the side and gently push them
back together making sure that all cables and
connectors are free and not "pinched" between the
panels.

Use a standard Phillips screwdriver to reconnect the
panels.
11
