Serial Communication, cont'd

Command/response table

Symbol Definitions:
= CR/LF, • = space
= Horizontal VSC 200: 1–4
X1
filtering level VSC 300: 1–8
= Vertical VSC 200: 0–4
X2
filtering level VSC 300: 0–9
= Input 1 = S-video
X3
2 = RGB
3 = Component
=Output 1 = NTSC
X4
2 = PAL
3–8
COMMAND ASCII RESPONSE
Horizontal Shift
Shift Right {H
Shift Left }H
Vertical Shift
Shift Down {/
Shift Up }/
Horizontal Size
Increase Size {:
Decrease Size }:
Vertical Size
Increase Size {;
Decrease Size };
Zoom
Zoom In {+
Zoom Out }+
Horizontal Filter (Detail)
Specific Value
X1
Increment Up {D
Increment Down }D
Vertical Filter (Detail)
Specific Value
X2
Increment Up {d
Increment Down }d
Freeze
Enable F
Disable f
www.camboard.de
4-4 VSC 200/200D/300/300D Serial Communication
CAMBOARD Electronics
Space
Scaled output resolutions (VSC 300 only)
3 = 640x480
4 = 800x600
5 = 832x624
6 = 852x480
7 = 1024x768
8 = 720p
DESCRIPTION
Hph+ Shift image right one step
Hph– Shift image left one step
Vph+ Shift image down one step
Vph– Shift image up one step
Hsz+ Increase horizontal size by one step
Hsz– Decrease horizontal size by one step
Vsz+ Increase vertical size by one step
Vsz– Decrease vertical size by one step
Zom+ Increase image size by one step
Zom– Decrease image size by one step
D Dhz Select horizontal filter
X1
Dhz Select next higher horizontal filter (Dhz + 1)
X1
Dhz Select next lower horizontal filter (Dhz – 1)
X1
d Dvt Select vertical filter
X2
Dvt Select next higher vertical filter (Dvt + 1)
X2
Dvt Select next lower vertical filter (Dvt – 1)
X2
Frz1 Set freeze mode to On (freeze current displayed image)
FrzØ Set freeze mode to Off
Tel. 07131 911201
Fax 07131 911203

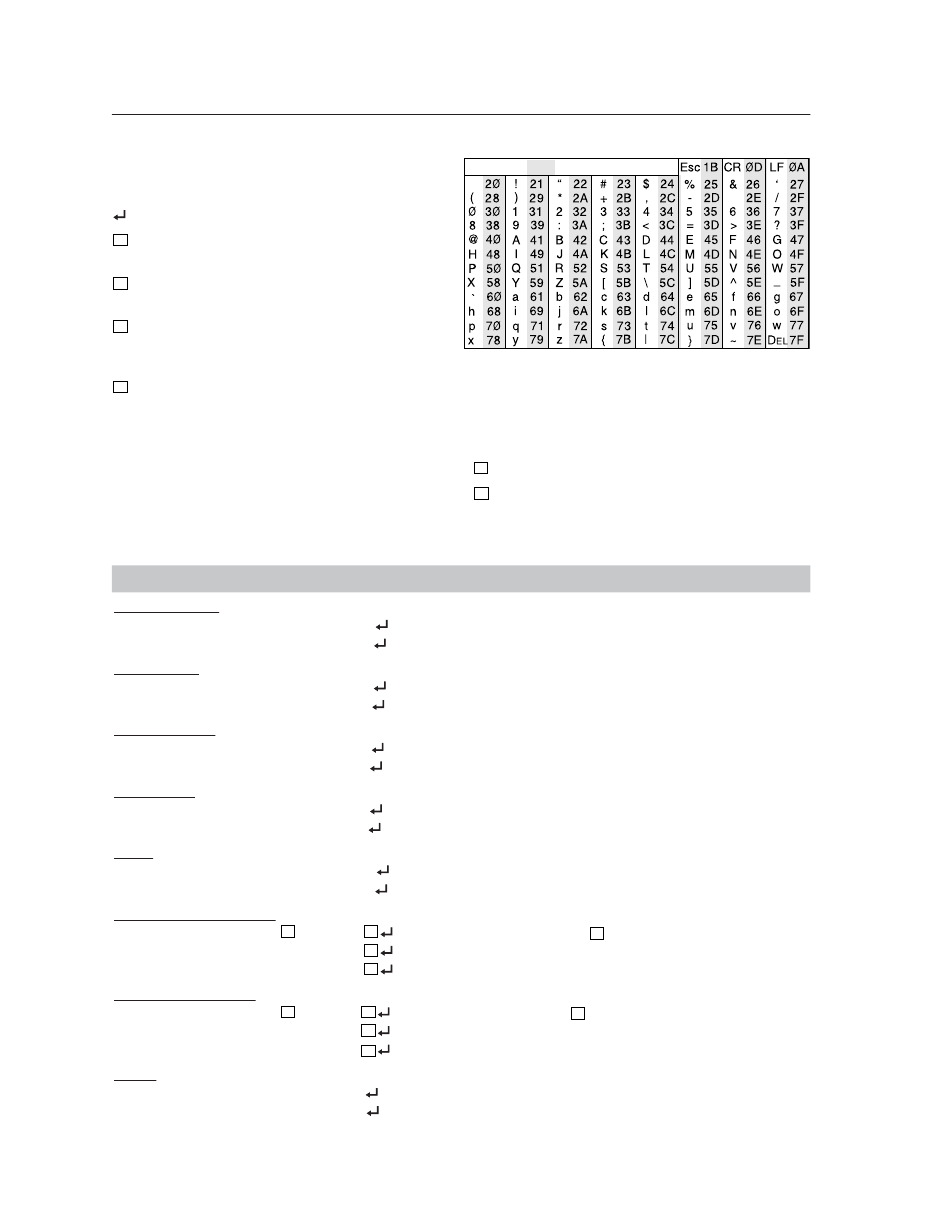

ASCII to HEX Conversion Table
= 1 = On, 0 = Off
X5
= xxx.xx Hrt = Horizontal rate = kHz
X6
Vrt = Vertical rate = Hz
= xxx:xx Signal out of range
(Dhz)
X1
(Dvt)
X2
