Operation, cont'd
A vectorscope is more accurate than a waveform monitor. Figure 23 shows an
example of a vectorscope display when the horizontal phase is adjusted to align it
with the burst (genlock) vector. Adjust the horizontal phase until the difference
A1
A2
A3
B1
B2
B3
between the two vectors is 0º. This example shows black burst only (with no color).
The burst vector is pointing to the left from the center.
Figure 23 — Vectorscope screen during horizontal phase adjustment

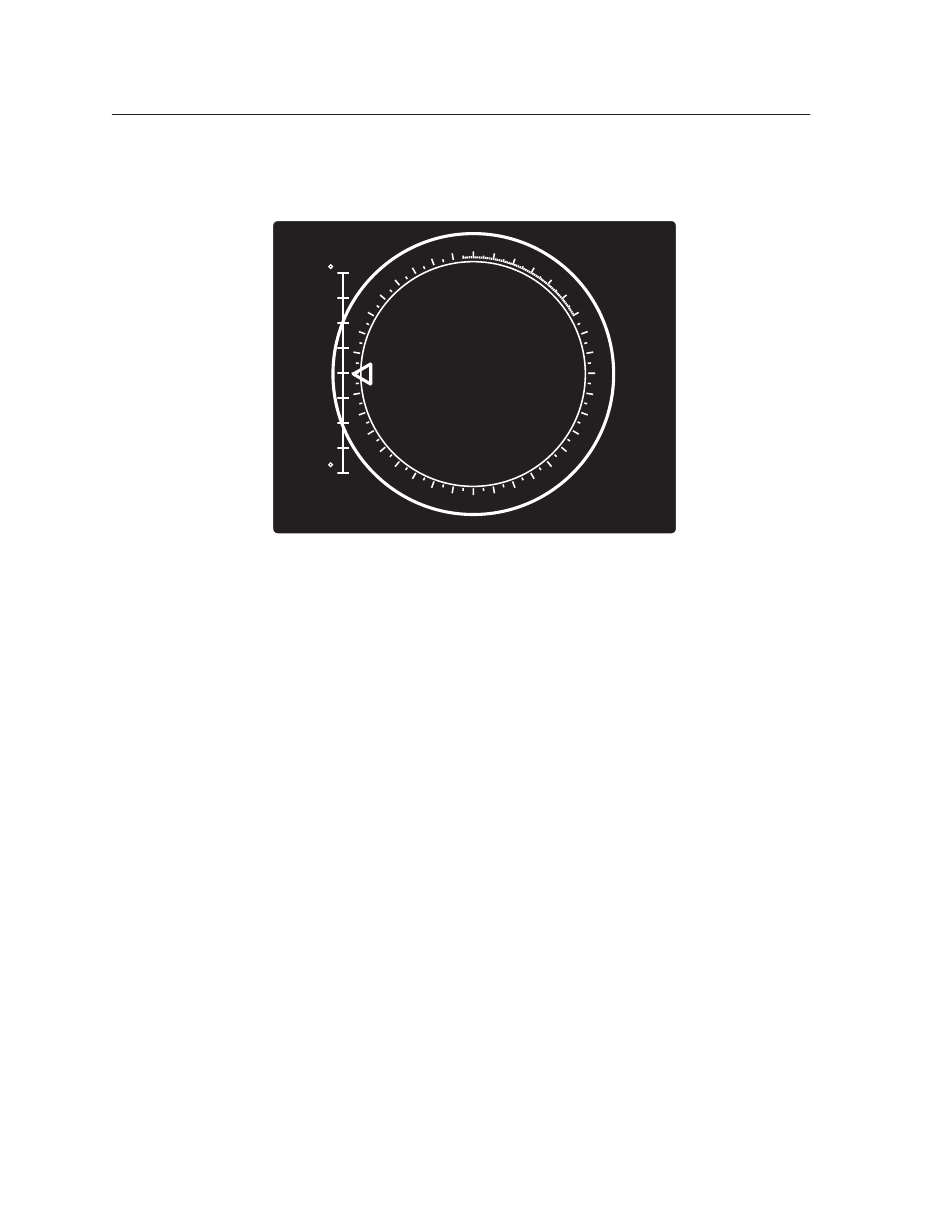

Figure 24 shows an example of a view of a vectorscope during adjustment of the
color subcarrier phase. The subcarrier phase should be aligned to 0º (indicated in
the figure by the triangle).
Figure 24 — Vectorscope screen during color subcarrier phase
adjustment
www.camboard.de
3-10 VSC 200/200D/300/300D Operation
CAMBOARD Electronics
0
350
340
330
+40
320
310
300
290
280
270
260
250
240
230
-40
220
210
200
190
180
Tel. 07131 911201
Fax 07131 911203
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
