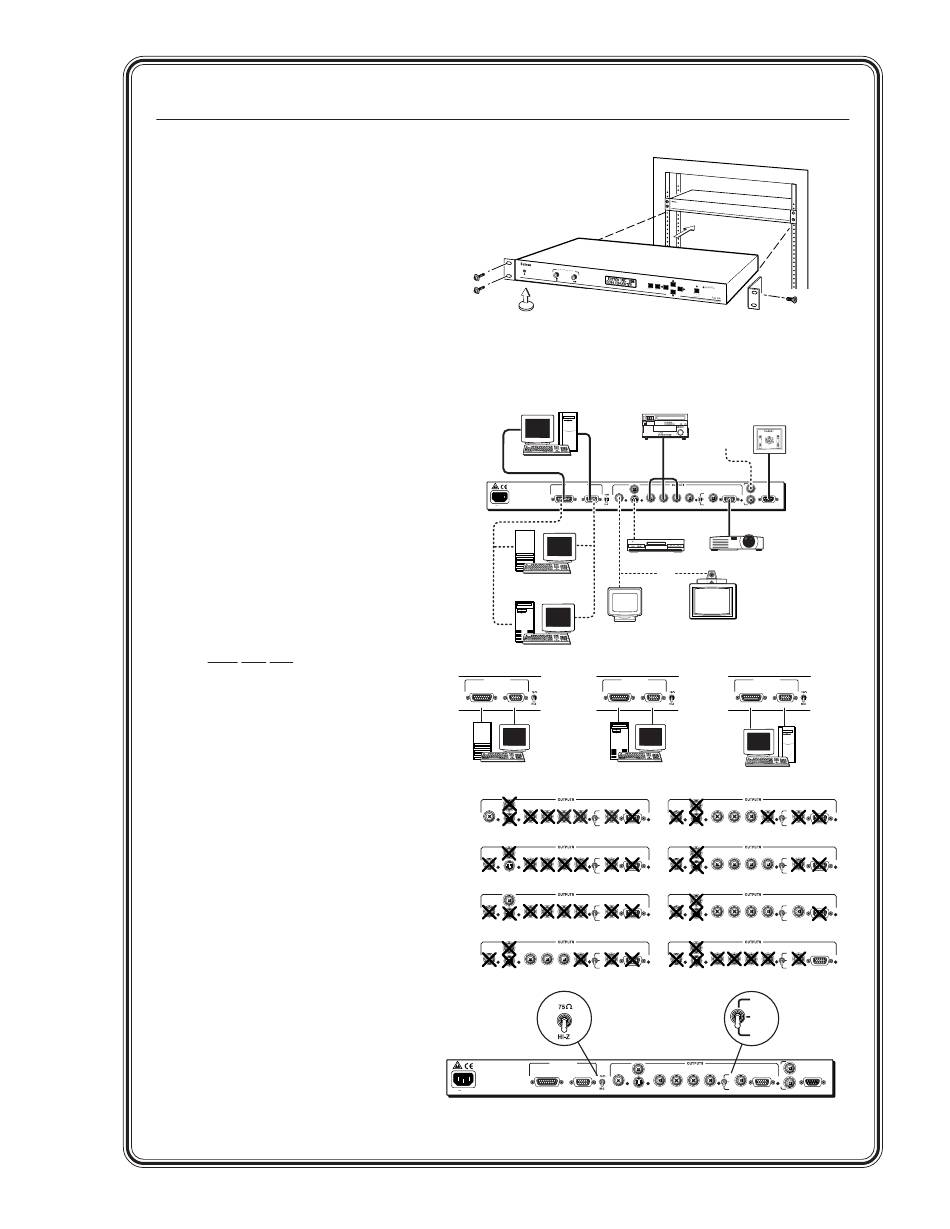

Quick Start — VSC 200/200D/300/300D
Installation
Step 1
Install feet on the bottom of the scan
converter (1A), or mount the scan
converter in a rack (1B).
Step 2
Turn off power to the input and output
devices, and remove their power cords.
Step 3
Attach the input and output devices to
the scan converter:
Input cabling (3A):
1. Connect the local monitor to its corre-
sponding (Mac or VGA) 15-pin input/
loop-out (loop-through) connector.
(For 13W3, use the VGA/13W3 cable
provided with the VSC 300/300D.)
2. Connect the computer to the scan con-
verter's other input connector. (For
13W3, use the Mac/13W3 cable that is
provided with the VSC 300/300D.)
If no local monitor is installed, set the 75
ohm/Hi Z switch to 75W (3C).
Output options (3B) are:
Composite video (connected to VIDEO)
and only any one of the following:
S-video (connected to S-VIDEO)
Digital (connected to D1; VSC
200D/300D)
Component (connected to R/R-Y,
G/Y, and B/B-Y)
RGsB (connected to R/R-Y, G/Y,
and B/B-Y)
RGBS (connected to R/R-Y, G/Y, B/
B-Y, and H/HV)
RGBHV (connected to R/R-Y, G/Y,
B/B-Y, H/HV, and V)
Scaled VGA (connected to VGA
OUT; VSC 300/300D)
Step 4
For RGsB, RGBS, or RGBHV output, set
the sync selection switch (4). (H =
RGBHV, HV = RGSB, SOG = RGsB.)
Step 5
Plug all of the devices into a grounded
AC source, and turn on the input and
output devices.
Step 6
Use the LCD menu screens to configure
the scan converter (see the next page).
