Mounting the scan converter

Rack mounting

www.camboard.de
CAMBOARD Electronics
The scan converter ships with four uninstalled rubber feet. If you are going to rack
mount the unit, do so before cabling the unit, and do not install the rubber feet. If
you are not rack mounting the scan converter, skip to "Tabletop/desktop
placement" on page 2-6.
To rack mount the scan converter, do the following:

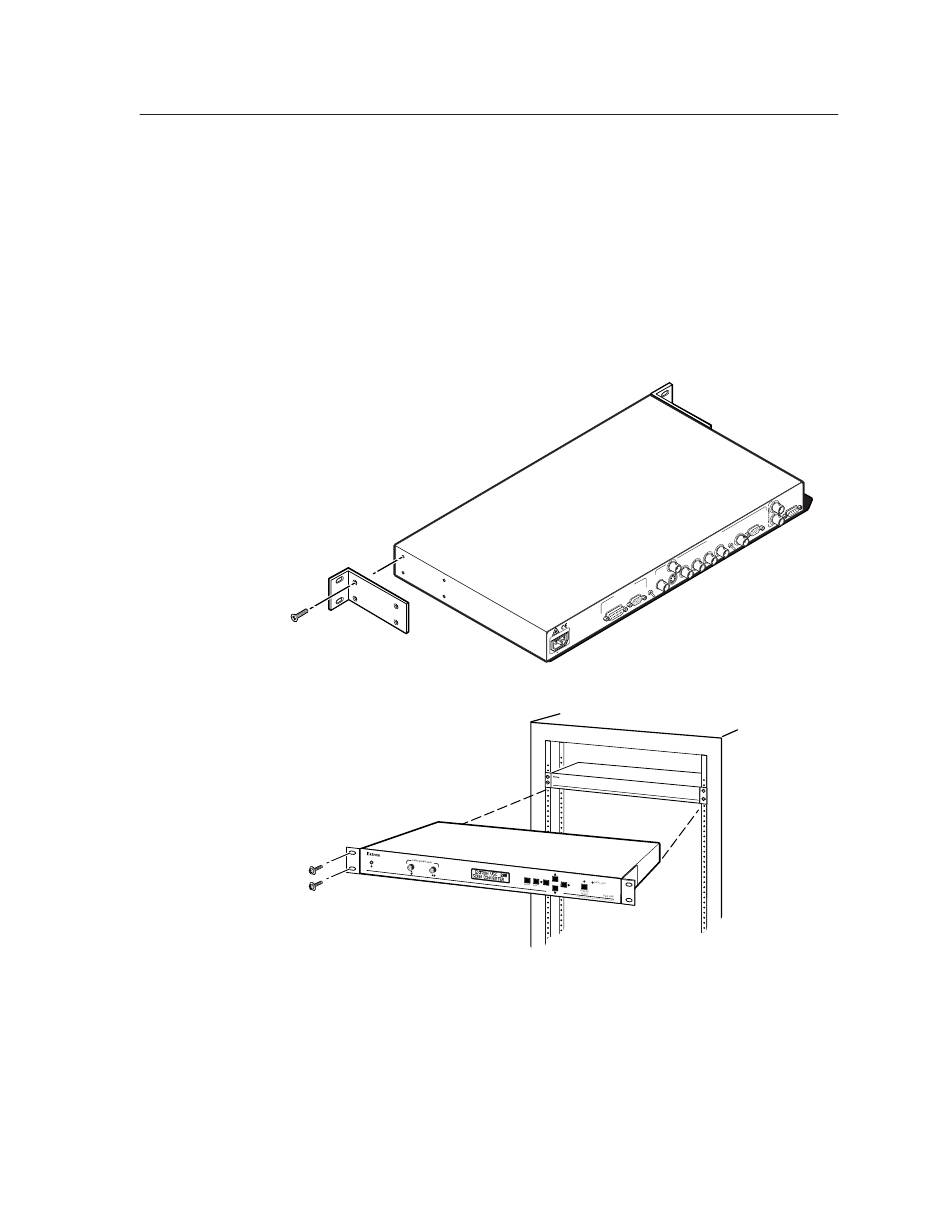

1. Attach the mounting brackets (supplied with the scan converter) on either
side of the scan converter, as shown in figure 5. Use four screws per
mounting bracket.
#8 Screw (4 Plcs) Each Side
Figure 5 — Installing mounting brackets
Figure 6 — Mounting the scan converter
2. Using two screws per mounting bracket, attach the scan converter to the rack
as shown in figure 6.
Tel. 07131 911201
Fax 07131 911203
T
O U
P
O O
T /L
P U
IN
A
V G
C
M A
0. 5A
H z
/6 0
50
0- 24 0
10
ce-info@camboard.de
VSC 200/200D/300/300D Installation
T
O U
T
U T S O U
T P A
V G
O U
2-5
