Invacare® Fox™

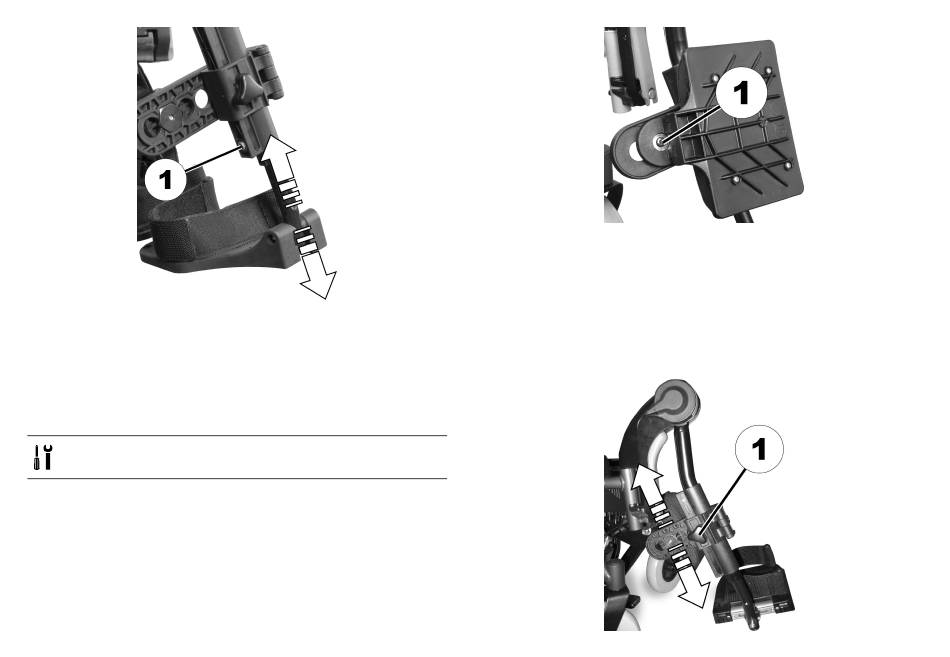

1. Loosen bolt (1) with the Allen key.
2. Adjust to required length.
3. Retighten screw.

5.14.4 Adjusting the depth of the calf pad

The calf pad has four depth settings.
• 4 mm Allen key
54
1. Swivel the calf pad to the front.
2. Release bolt (1) with the Allen key and remove.
3. Set the nut on the other side to the required depth.
4. Adjust the calf pad to match the depth of the nut, put
the screw back in and tighten.

5.14.5 Adjusting the height of the calf pad
