LEVEL SENSOR
Product Specifications
2.2

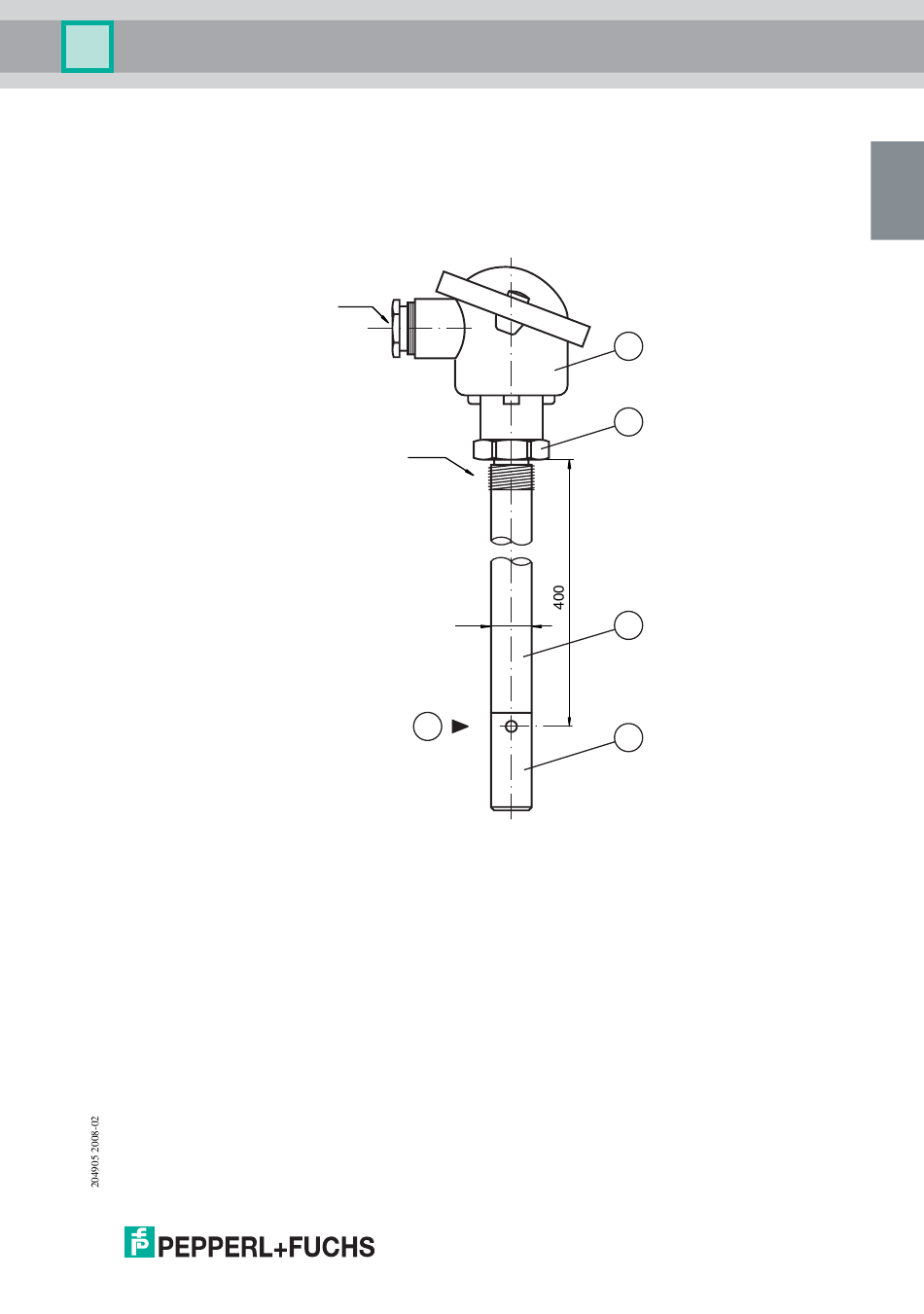

Layout and dimensions

The level sensor NVF-112-0400 is a rod sensor with connection head. The PTC resistor sensor
is sealed in a plastic tube at the end of the brass tube. The rod sensor is mounted to the
container or tank via a process connector with ½¨ external thread.
1 Connection head
2 Process connection with screw connection ½¨
3 Brass tube, length 400 mm
4 Sensor sealed in plastic tube
5 Switching point
The switching point of the level sensor is at the same level as the 5 mm bore on the plastic
tube.
PG16
R½
Ø18
5
1
2
3
4
