PCAN-Router Pro – User Manual
2

Connectors

2.1

Power (Voltage Supply)

The operation of the PCAN-Router Pro requires a voltage source
with a nominal 12 V direct current voltage, 8 to 27 V are possible.
The input is electronically protected against reverse polarity and
overvoltage.

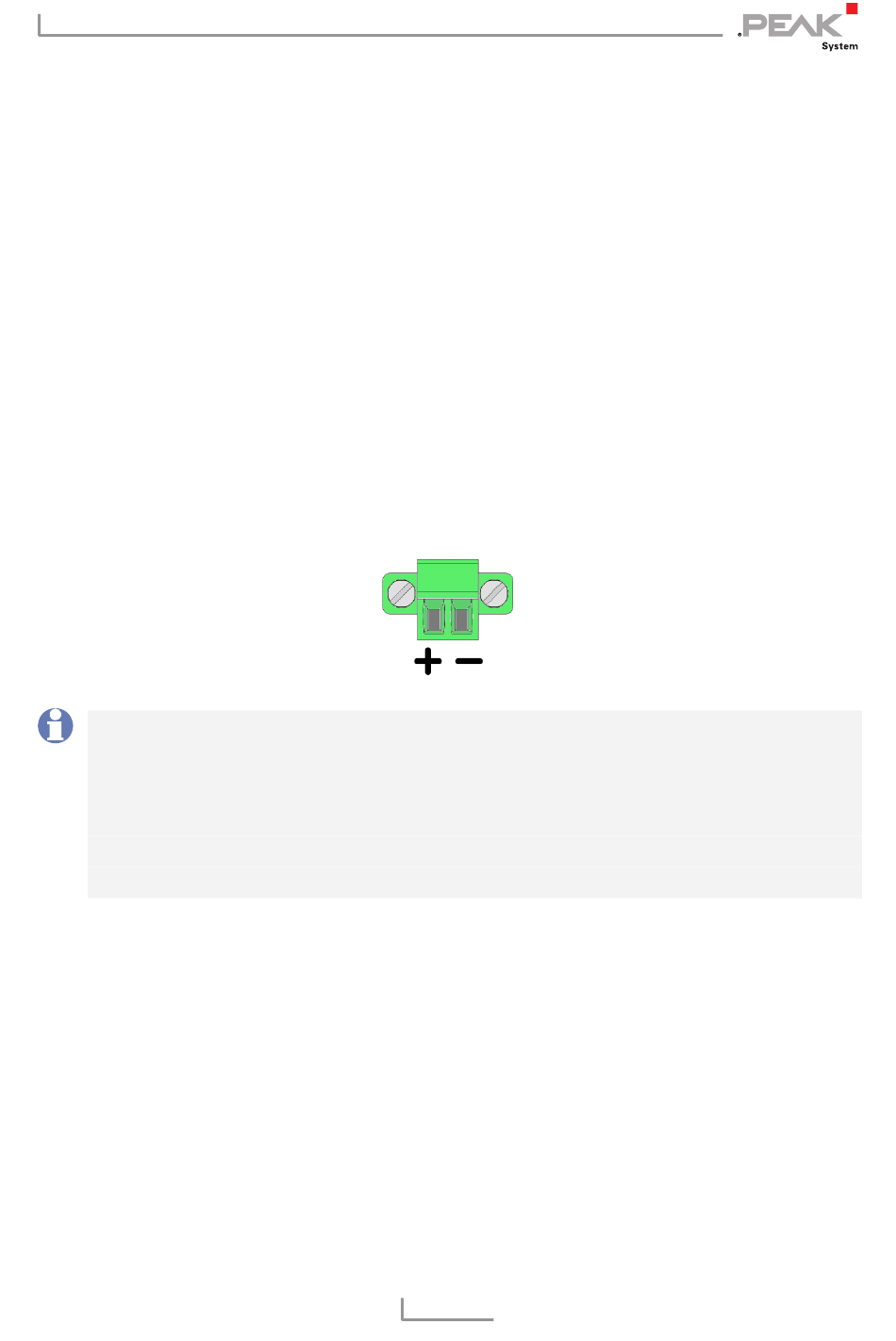

The connection is done with the supplied mating connector
(Phoenix Contact MC1,5/2-STF-3,81) for fastening cable strands. The
polarity is as follows:
Note: After applying the supply voltage, the PCAN-Router Pro
needs a wake-up signal in order to start operation. Having
customized equipment, if there is no CAN transceiver module
with wake-up function, the PCAN-Router Pro must be switched
on with an external wake-up signal (see section 5.7.3 on page
32).
9
