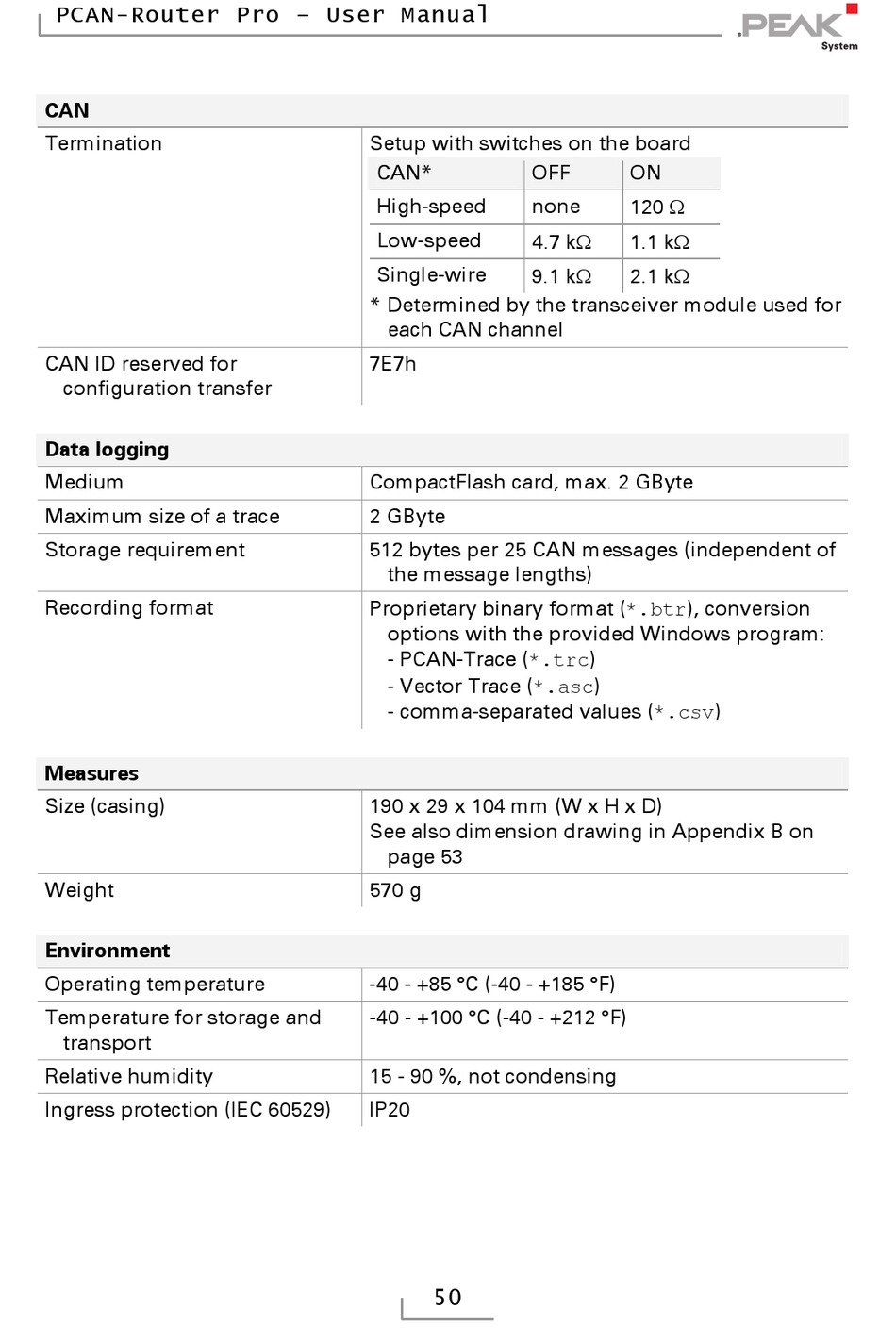

PCAN-Router Pro – User Manual
CAN
Termination
CAN ID reserved for
configuration transfer
Data logging
Medium
Maximum size of a trace
Storage requirement
Recording format
Measures
Size (casing)
Weight
Environment
Operating temperature
Temperature for storage and
transport
Relative humidity
Ingress protection (IEC 60529)
Setup with switches on the board
CAN*
OFF
High-speed
none
Low-speed
4.7 k
Single-wire
9.1 k
* Determined by the transceiver module used for
each CAN channel
7E7h
CompactFlash card, max. 2 GByte
2 GByte
512 bytes per 25 CAN messages (independent of
the message lengths)
Proprietary binary format (*.btr), conversion
options with the provided Windows program:
- PCAN-Trace (*.trc)
- Vector Trace (*.asc)
- comma-separated values (*.csv)
190 x 29 x 104 mm (W x H x D)
See also dimension drawing in Appendix B on
page 53
570 g
-40 - +85 °C (-40 - +185 °F)
-40 - +100 °C (-40 - +212 °F)
15 - 90 %, not condensing
IP20
50
ON
120
1.1 k
2.1 k
