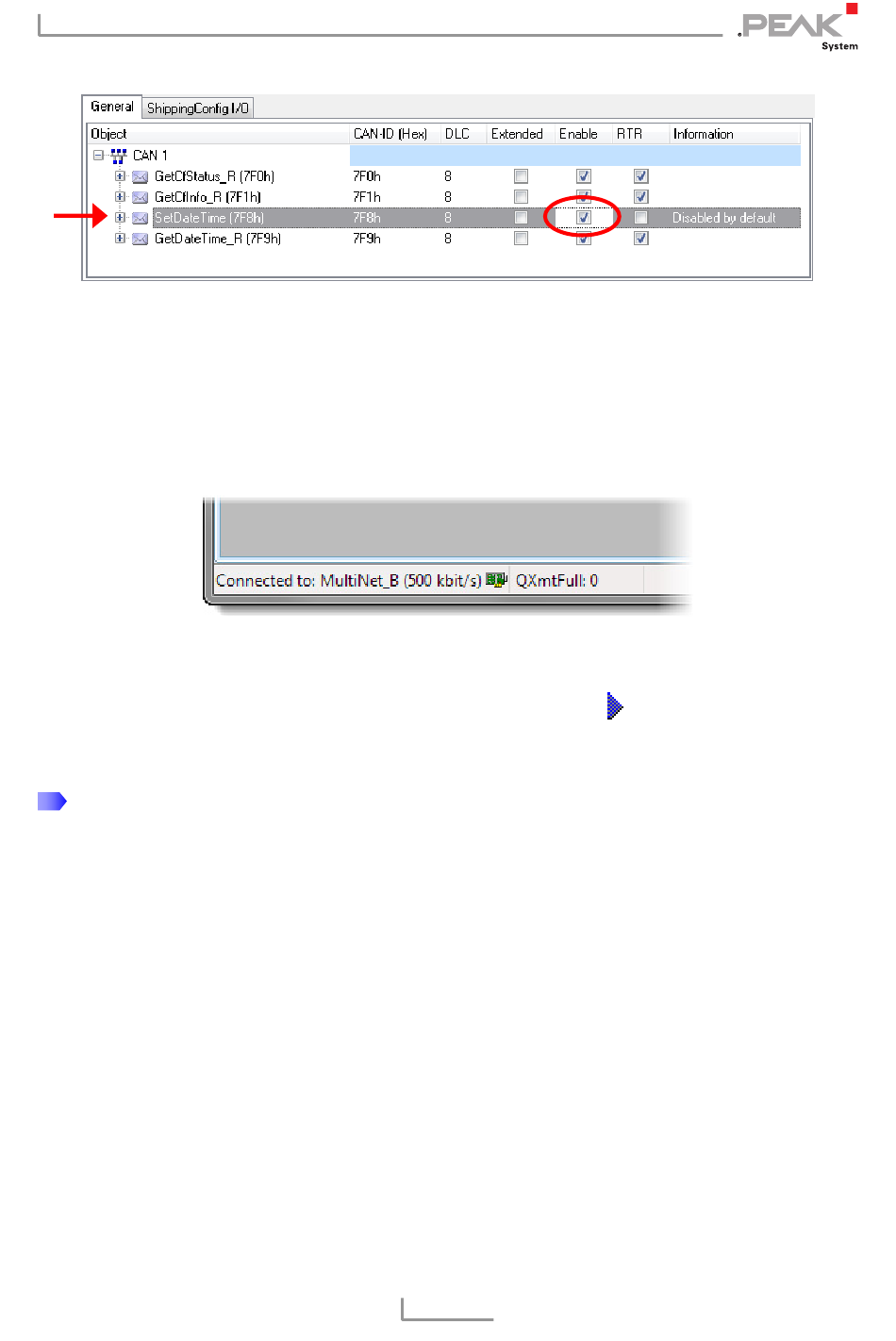

4. Enable the symbol entry by checking the corresponding
field Enable.
5. Make sure that a CAN connection exists between the
computer and the PCAN-Router Pro, and, furthermore, that
the PPCAN-Editor has access to this connection.
PPCAN-Editor: Display of a connection in the status bar on the bottom.
6. With Transmit > Send Configuration or
configuration to the PCAN-Router Pro.
Do the following to set the time with PCAN-View and the
shipping configuration for the PCAN-Router Pro:
1. Under Windows start the program PCAN-View and establish
a connection to the CAN bus that is connected with the
PCAN-Router Pro, CAN channel 1.
2. On the Transmit panel insert the CAN message 7F8h with
8 data bytes for data, time, and the RTC update bit (see
example below). Note that these are hexadecimal values.
Since the message must only received once by the PCAN-
Router Pro, a cyclic transmission isn't set.
