PCAN-Router Pro – User Manual

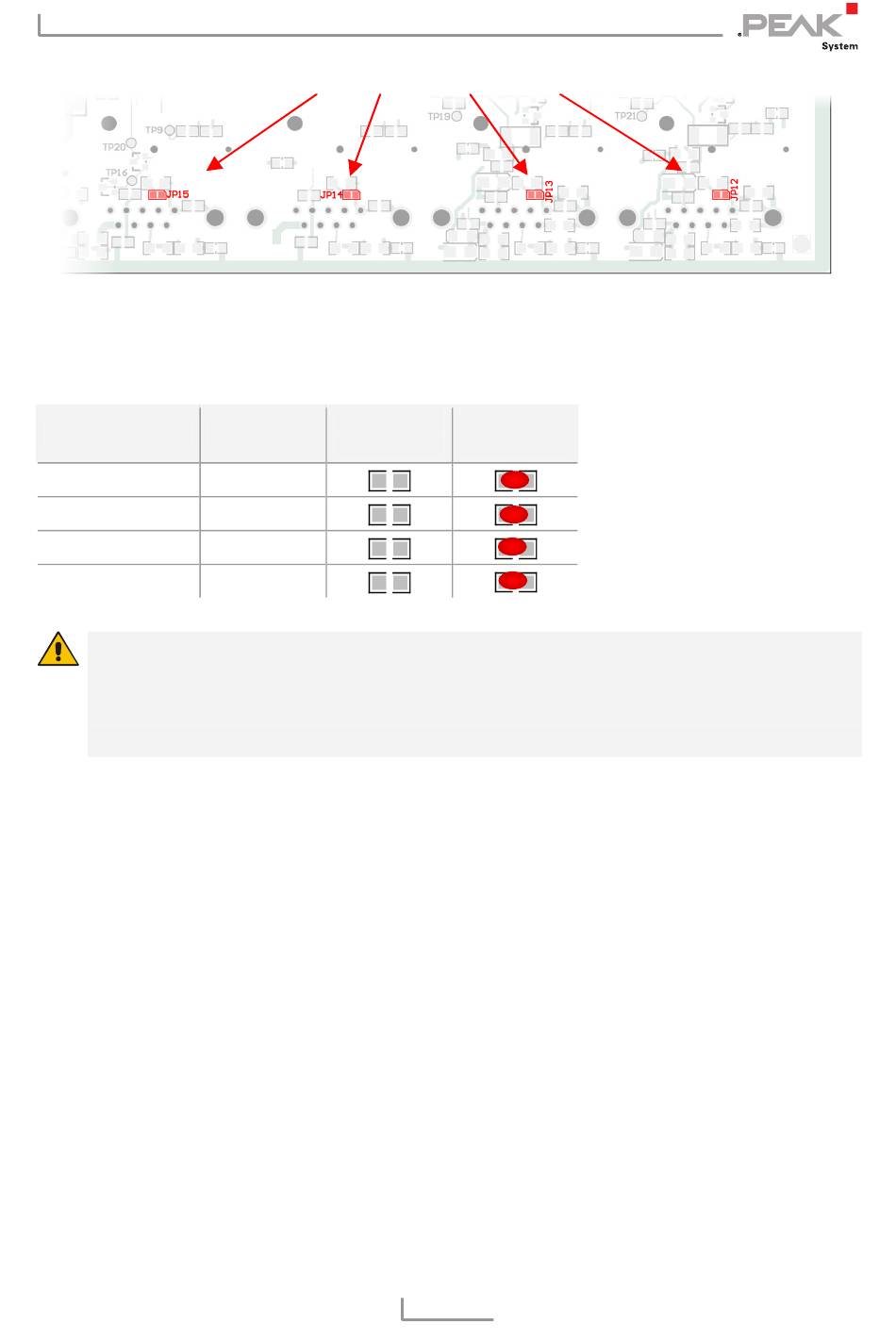

Position of the solder fields on the bottom side of the circuit board
Connection
CAN 1, Pin 1
CAN 2, Pin 1
CAN 3, Pin 1
CAN 4, Pin 1
Attention! Risk of short circuit! If the option described in this
section is activated, you may only connect or disconnect CAN
cables or peripheral systems (e.g. bus converters) to or from
the PCAN-Router Pro while it is turned off.
3.5 Enabling the Supply of the Router via
a D-Sub Connector
As an alternative to the "Power" connector intended for supplying
the PCAN-Router Pro, it can be supplied via pin 9 of the D-Sub
connector CAN 3 or CAN 4 with 8 to 27 V DC. On the circuit board of
the PCAN-Router Pro, a connection to the desired D-Sub connector
must be established with a solder bridge.
Pin 6 "GND" is used as negative for the supply.
for the 5-Volt supply at the D-Sub connector
(JP12 on the right, JP15 on the left)
No
Solder field
function
JP12
JP13
JP14
JP15
+5 V
100 mA
