Using the Recorded CAN Traffic

The recorded CAN traffic on the CompactFlash card (CF card) is
binary-coded in the trace.btr file. For further use you must
convert the data in an appropriate format. To do so, the Windows
program PEAK-Converter is available on the provided DVD.
Possible conversion targets:
Target format
PCAN-Trace
Vector ASC Trace
Character Separated
Values (CSV)

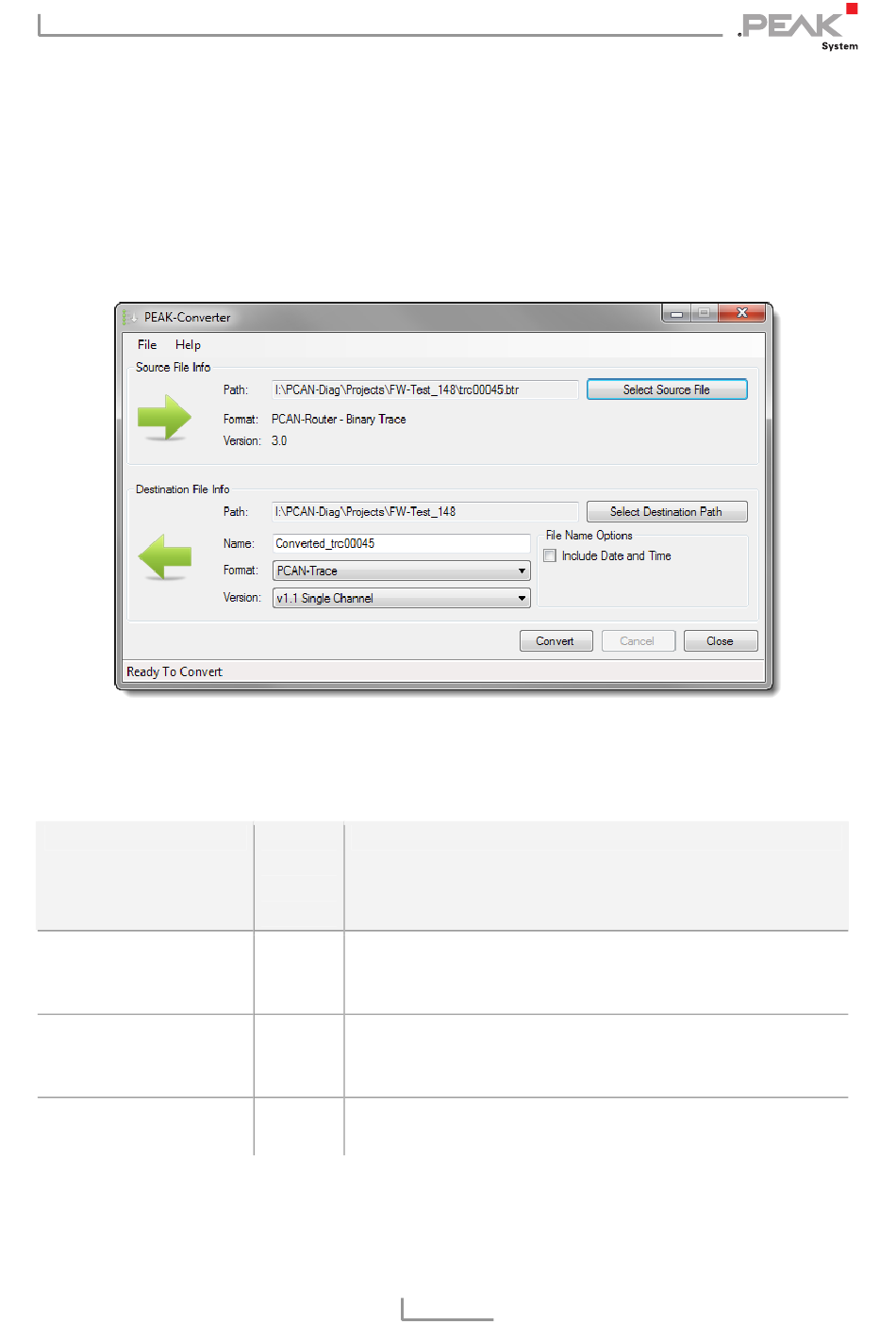

User interface of the PEAK-Converter
File Explanation/usage
name
extensi
on
.trc Text-based trace format by PEAK-System; viewing
of the data in the PCAN-Explorer or playback of the
CAN messages with the PCAN-Trace program.
Text-based trace format by the Vector company
.asc
that also can be used by some third-party
programs.
.csv Common, text-based format for import into a
spreadsheet (semicolon as separator).
