PCAN-Router Pro – User Manual
Proceed as follows to enable the supply via a D-Sub connector:
Set the solder jumper on the circuit board of the PCAN-Router Pro
according to the desired function. During this procedure take
especially care not to produce unwanted short circuits on the board.

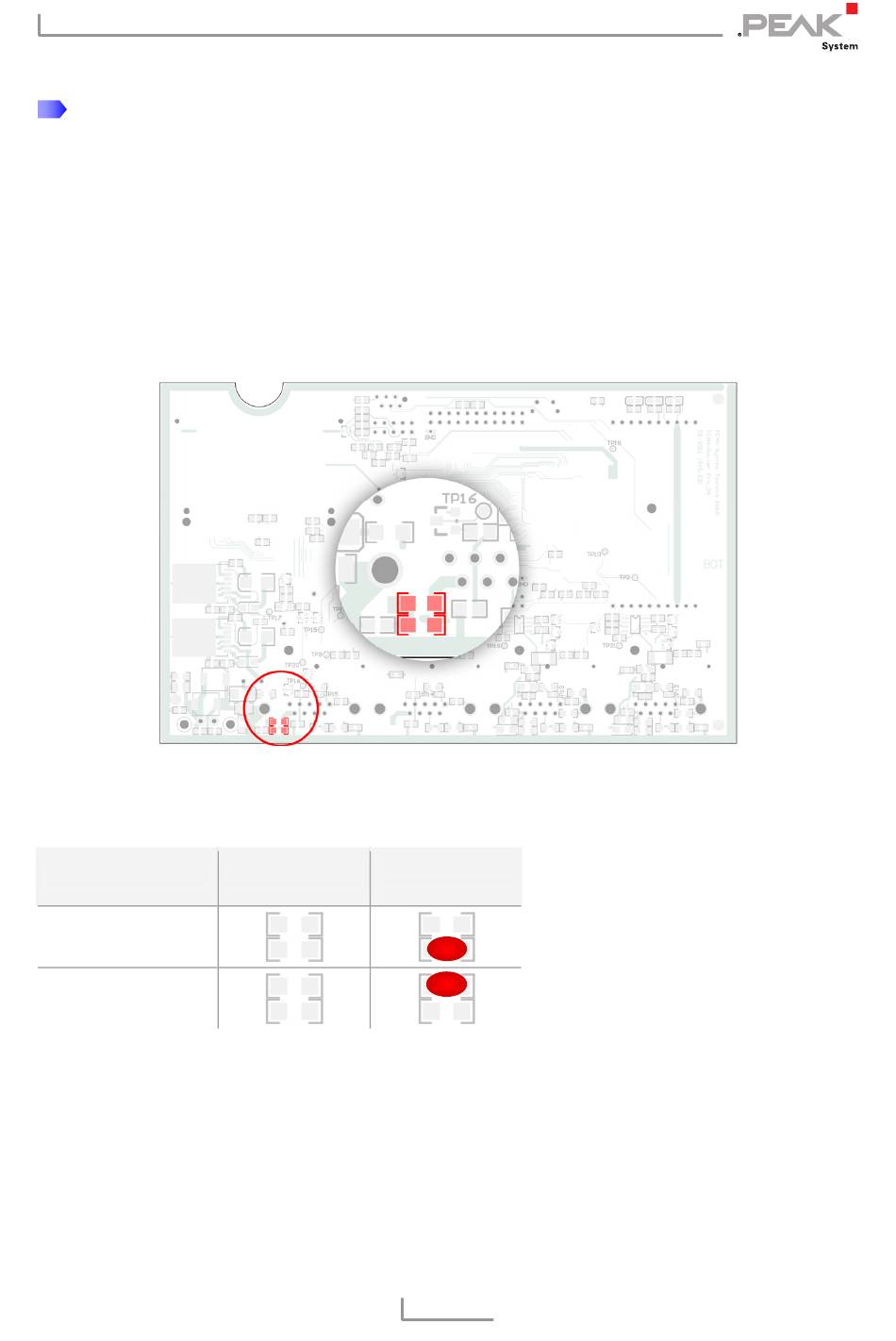

The following figure shows the positions of the solder fields on the
circuit board. The table below contains the possible settings using
solder bridges.
Position of the solder fields on the bottom side of the circuit board
for the supply of the router via the D-Sub connector
Connection
CAN 3, Pin 9
CAN 4, Pin 9
Supply is
No function
possible
