PCAN-Router Pro FD – User Manual

Connectors

This chapter describes the connections on the front panel of the

PCAN-Router Pro FD.

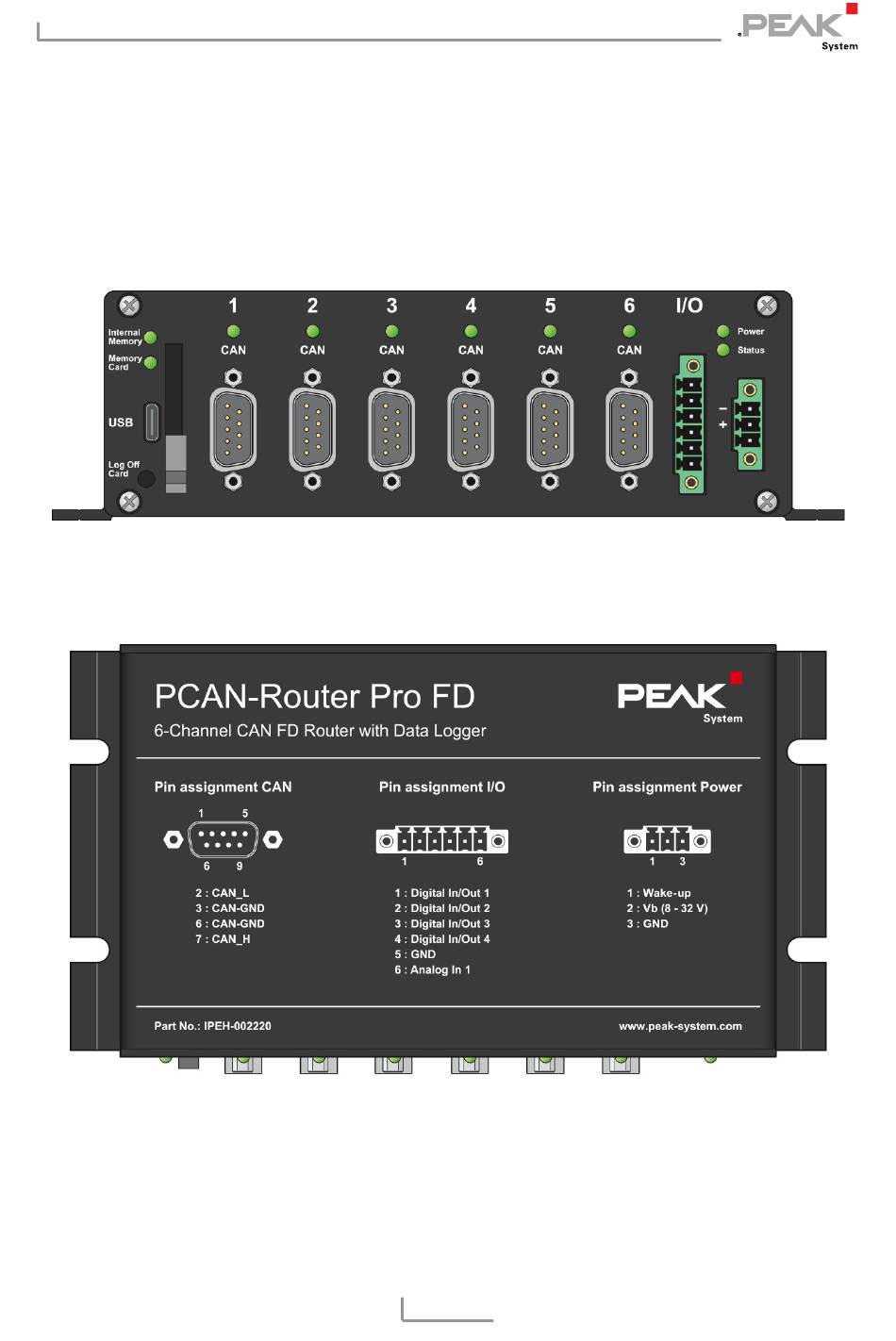

Figure 1: Pin assignment on the front panel of the PCAN-Router Pro FD

Figure 2: Description of the pin assignments on the top of the housing
