PCAN-Router Pro – User Manual
2.2

CAN 1 to CAN 4, D-Sub 9-pin

A CAN bus is connected to a 9-pin D-Sub port.
The assignment of the CAN pins relies upon the used CAN
transceiver module:
Module name
CAN-HS
HSGE2
CAN-HS-1041
(standard)
CAN-LS
CAN-LS-SW

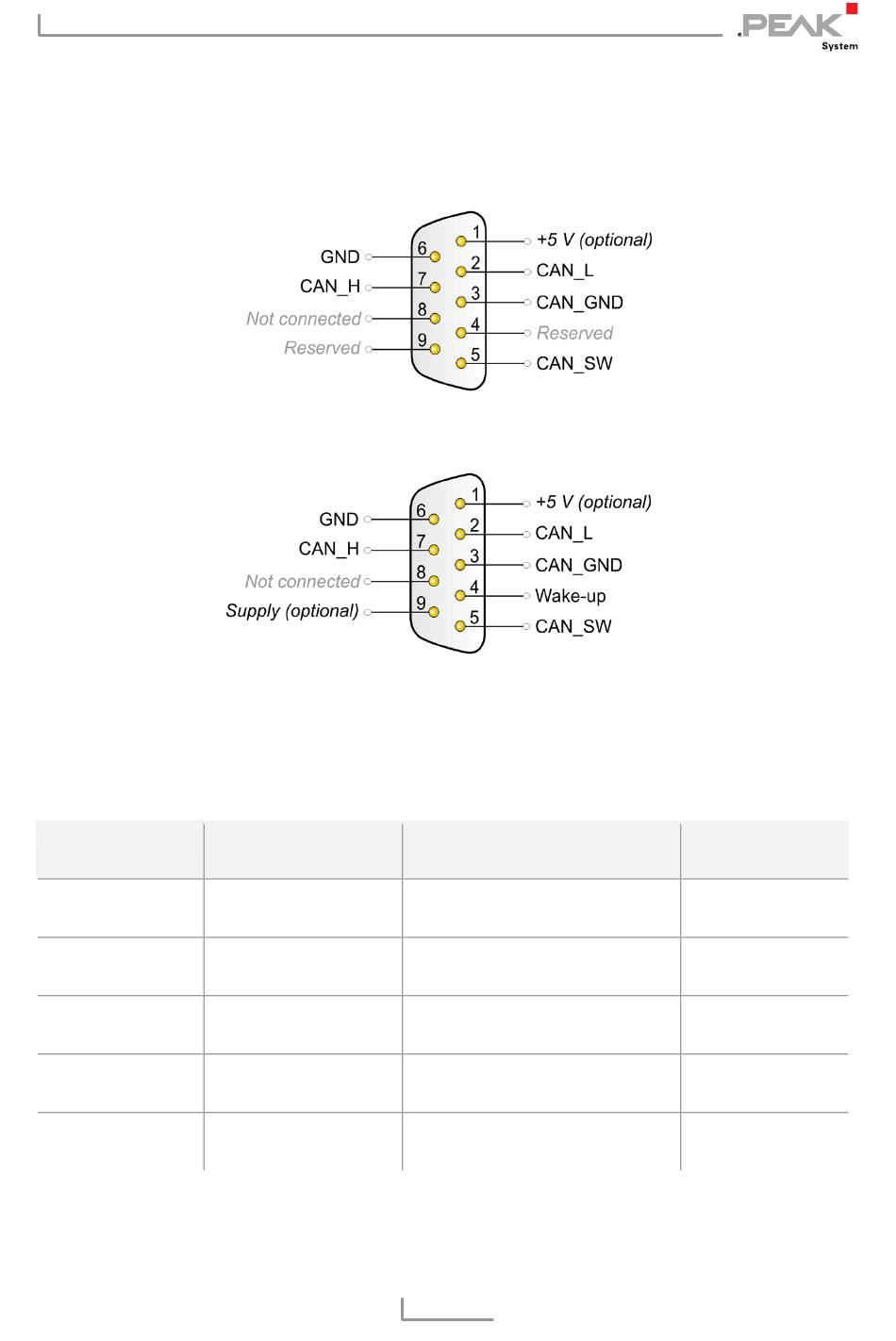

Pin assignment of the ports CAN 1 and CAN 2
Pin assignment of the ports CAN 3 and CAN 4
Transmission
standard
High-speed CAN
ISO 11898-2
High-speed CAN
ISO 11898-2
High-speed CAN
ISO 11898-2
Low-speed CAN
ISO 11898-3
Single-wire CAN
SAE J2411
Special function
Galvanic isolation up to
300 V for the CAN interface
Wake-up via CAN
Wake-up via CAN
Wake-up via CAN
10
Used CAN lines
CAN_L, CAN_H
CAN_L, CAN_H
CAN_L, CAN_H
CAN_L, CAN_H
CAN_SW
