PCAN-Router Pro – User Manual

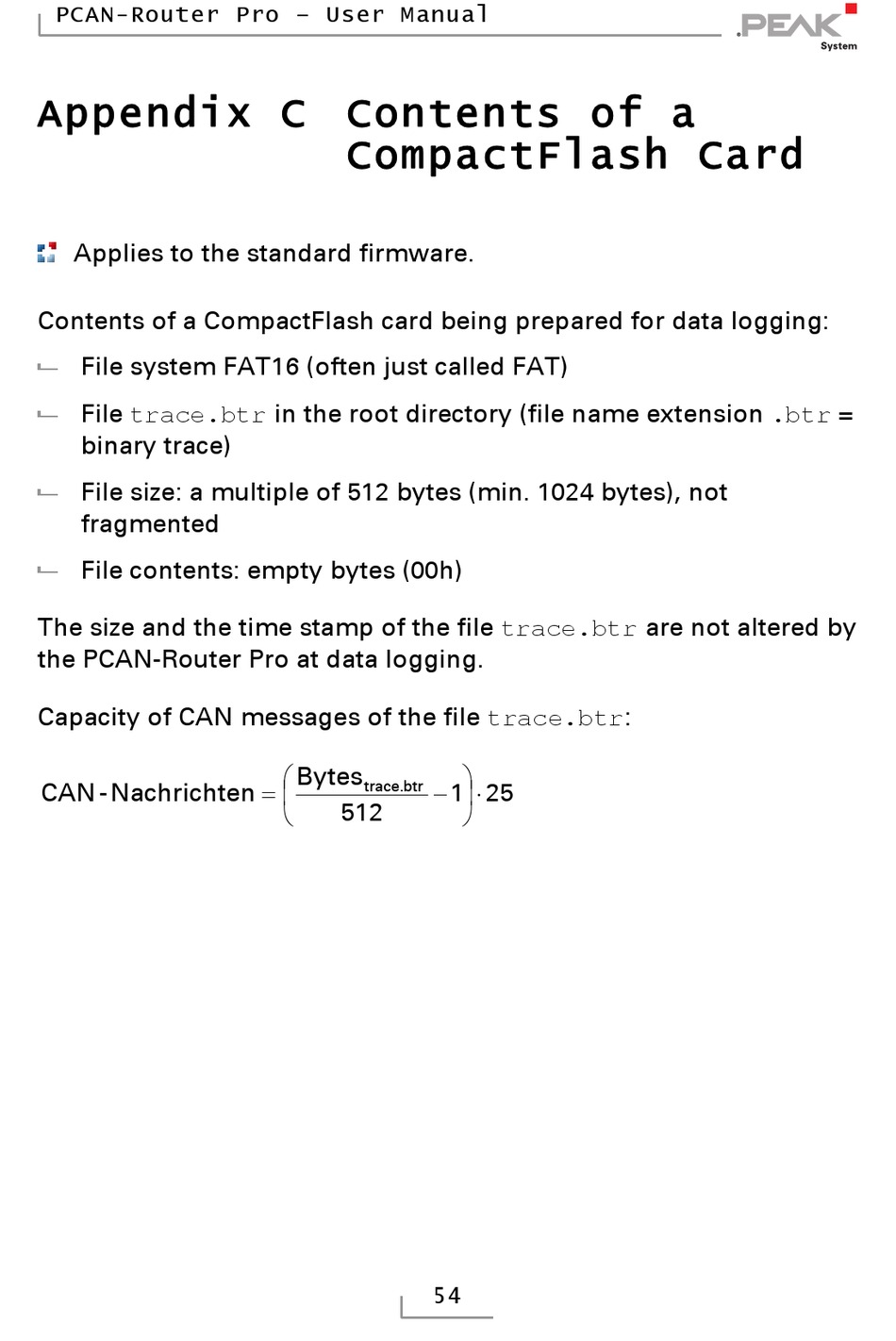

Appendix C Contents of a
Applies to the standard firmware.
Contents of a CompactFlash card being prepared for data logging:
File system FAT16 (often just called FAT)
File trace.btr in the root directory (file name extension .btr =
binary trace)
File size: a multiple of 512 bytes (min. 1024 bytes), not
fragmented
File contents: empty bytes (00h)
The size and the time stamp of the file trace.btr are not altered by
the PCAN-Router Pro at data logging.
Capacity of CAN messages of the file trace.btr:
CAN - Nachrichte
CompactFlash Card
 Bytes

n trace . btr

512


  
1 25

54
