Using the C-Clamp

Align the Mounting Holes in the Upper Base of the
1.
C-Clamp with the Mounting Holes on the Support Pole.
Insert four M5 x 14 mm Screws through the Mounting
2.
Holes on the Upper Base and into the Mounting Holes on
the Support Pole.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

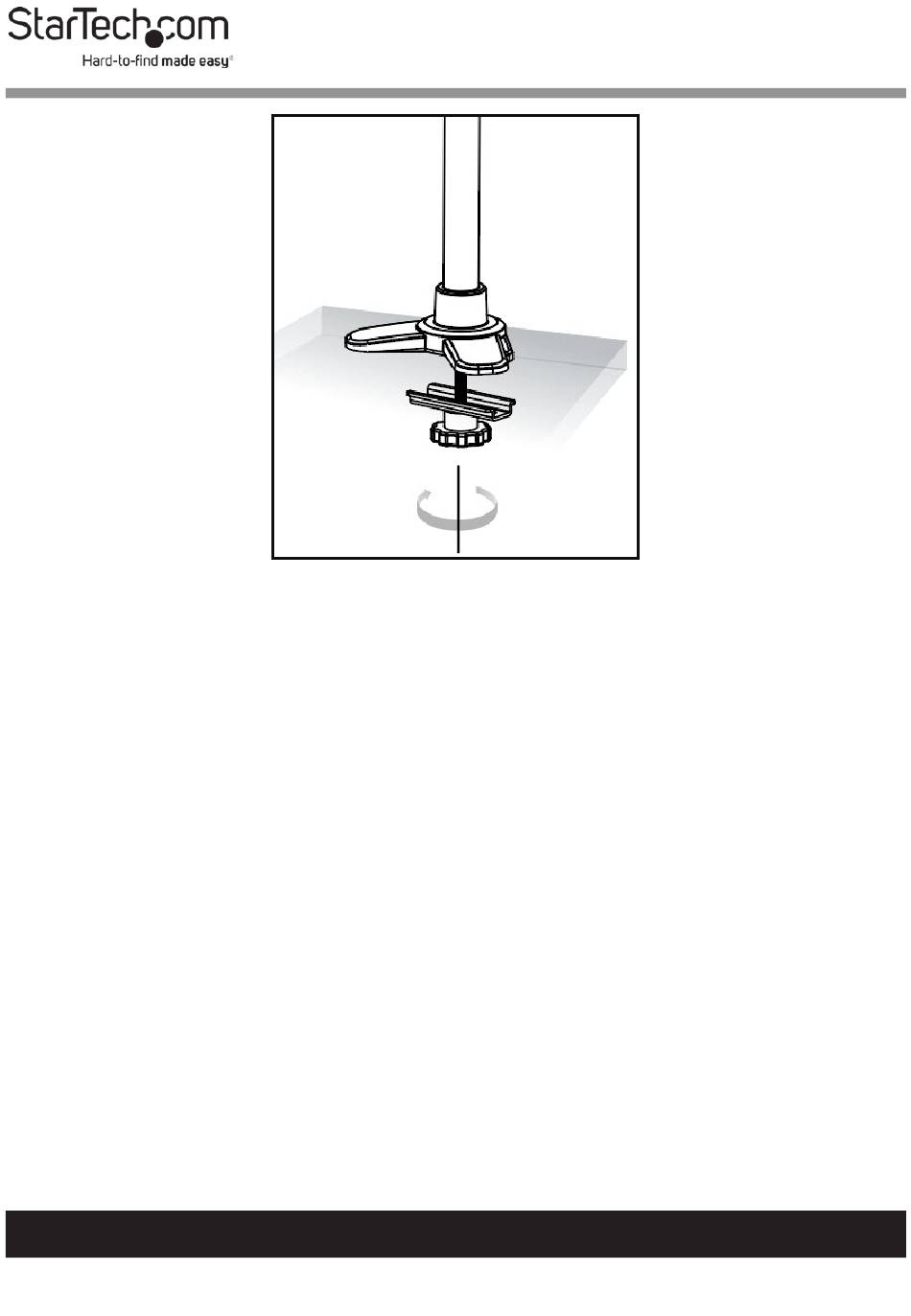

Hand Tightening the Hand Screw
