While supporting the weight of the Support Pole slide the
9.
C-Clamp over the edge of the mounting surface.

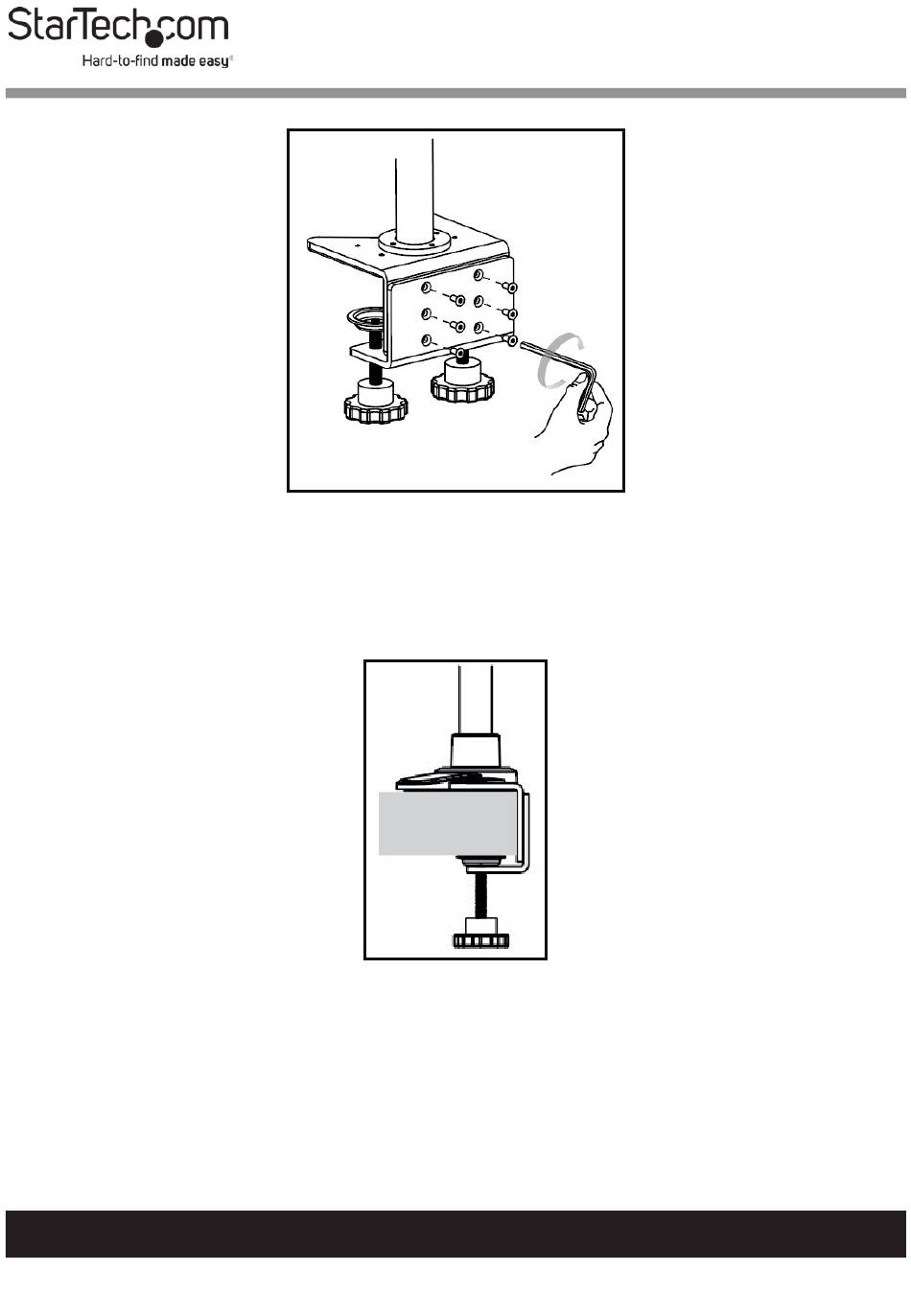

Sliding C-Clamp over the Edge of Mounting Surface
Using the Hand Screws tighten the C-Clamp until the
10.
C-Clamp is pressed tightly against the mounting surface.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Tightening the M5 x 14 mm Screws
20
