Assembling the Monitor Mount
Using the C-Clamp
Using the 6 mm Hex Key loosen the C-Clamp Screw,
1.
opening the C-Clamp to the thickness of the Mounting
Surface you wish to mount the Monitor Mount to. The
C-Clamp Screw is located in the center of the Mounting
Peg on the Base Clamp Assembly.
Align the C-Clamp with the edge of the Mounting Surface.
2.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

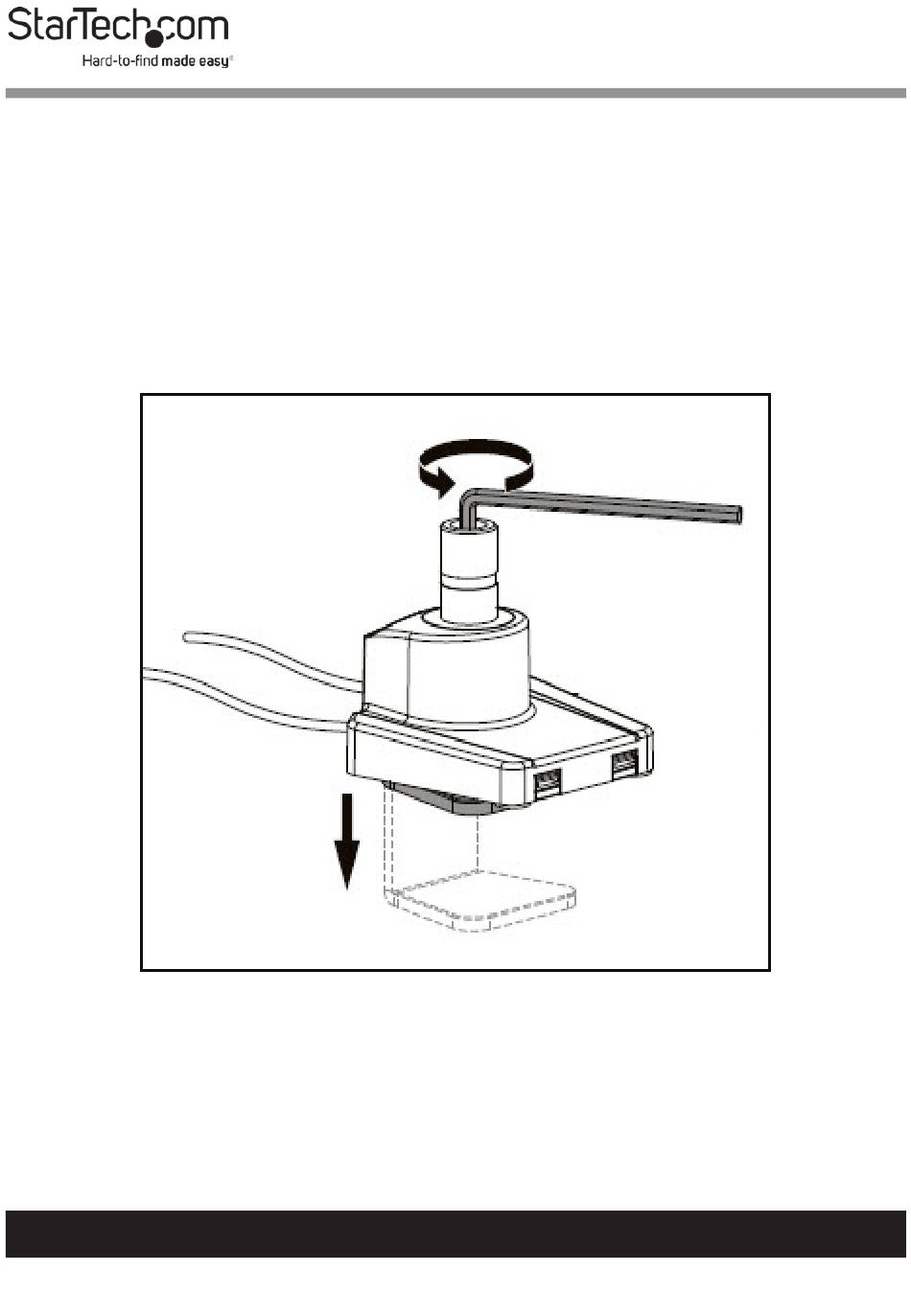

Loosening the C-Clamp Screw
