Installation

Using the Grommet Mount

Align the Mounting Holes in the Grommet Base with the
1.
Mounting Holes on the Support Pole.
Insert four M5 x 14 mm Screws through the Mounting
2.
Holes on the Grommet Base and into the Mounting Holes
on the Support Pole.
Using the M3 Hex Keys, tighten the four M5 x 14 mm
3.
Screws.

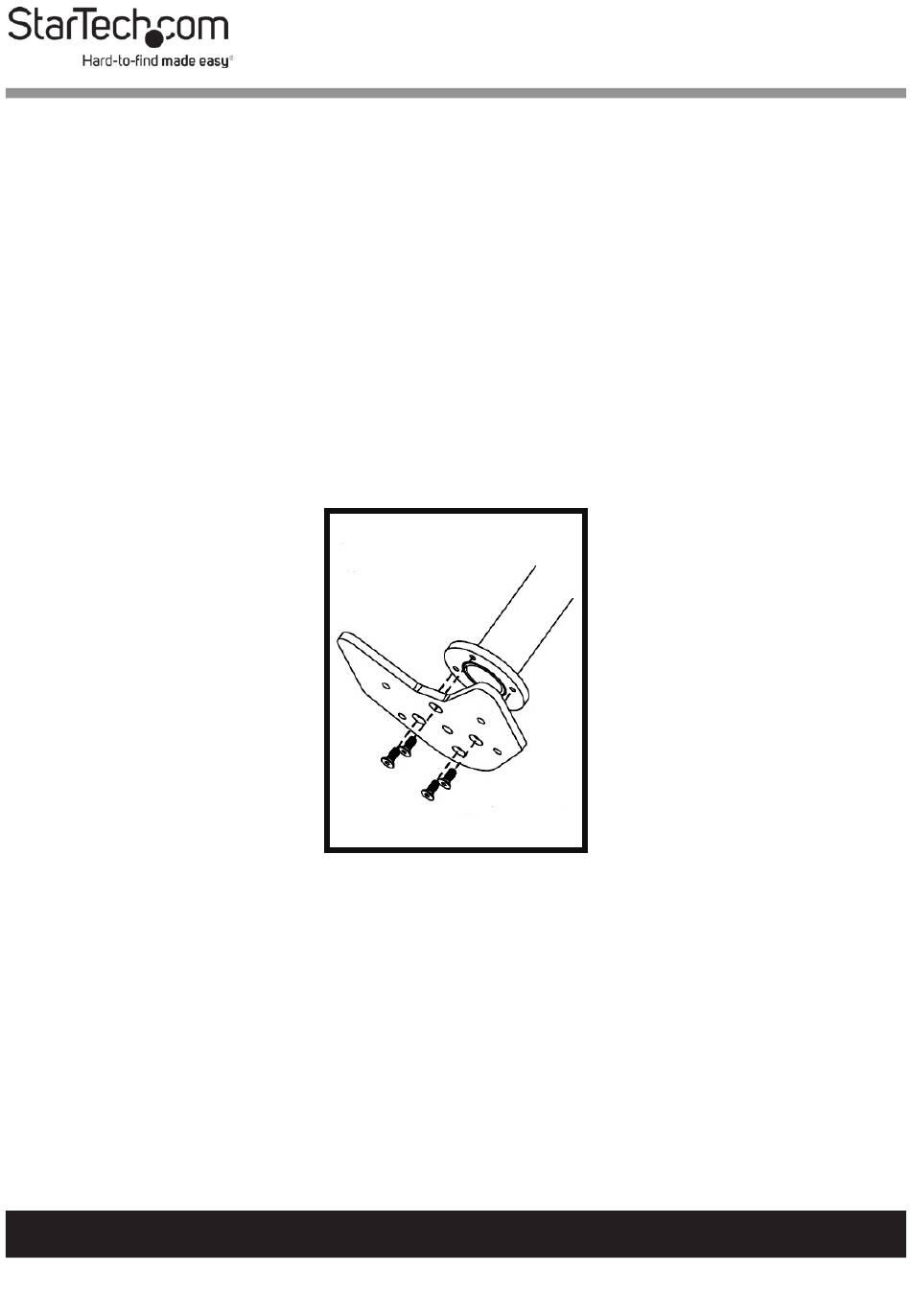

Attaching the Grommet Base to the Support Pole
Slide the four Pegs on the Decorative Plate (attached to
4.
the Support Pole) into the four Peg Holes on the Grommet
Base.
