Repeat step 7 to install Swivel Arms 2, 3, and 4.
8.

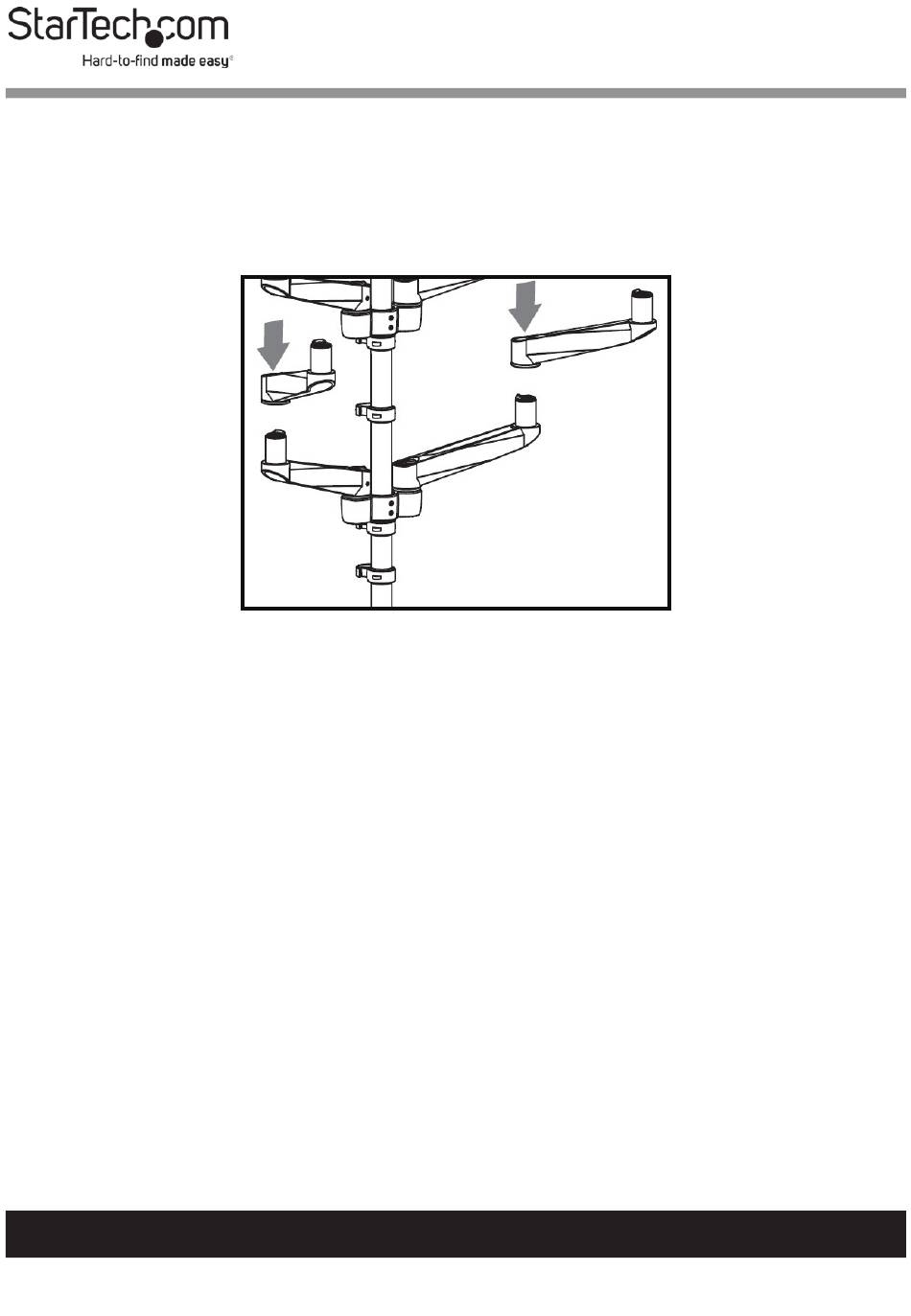

To install the second row of Swivel Arms (5, 6, 7, and 8), slide
9.
the Mounting Hole on Swivel Arm 5 over the Mounting
Peg on Swivel Arm 1 until it clicks into place.
Repeat step 9 to install Swivel Arms 6, 7, and 8.
10.

Attaching a Monitor Using the VESA Mount

Align the Mounting Holes (x 4) on the Monitor Mount with
1.
the mounting holes on the back of the Monitor.
Note: When mounting the VESA mount the orientation of
the Monitor is important.
Insert the Thumb Screws through the Monitor Mount and
2.
into the back of the Monitor.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Attaching the Swivel Arm
