REMOTE MODE

CAUTION: Power must be turned off before connecting the external remote control
!
cable to prevent damage to the drive.
The REGLO Digital Pump Drive features both digital remote control and monitoring through the
MasterflexLive™ website using an Ethernet or Wi-Fi connection and/or analog remote control and monitoring
via the pump drive's DB-25 female connection port. See
During remote operation:
• The Remote Mode Run screen will be displayed on the pump drive's touchscreen.
• All touchscreen functions, with the exception of STOP
disabled.

Remote Mode Run Screen

The Remote Mode Run screen displays the currently selected operation dispense settings (Continuous, Time
or Volume) from an external remote control device. The Remote Mode Run screen is accessed by selecting
REMOTE from the Mode Selection screen.

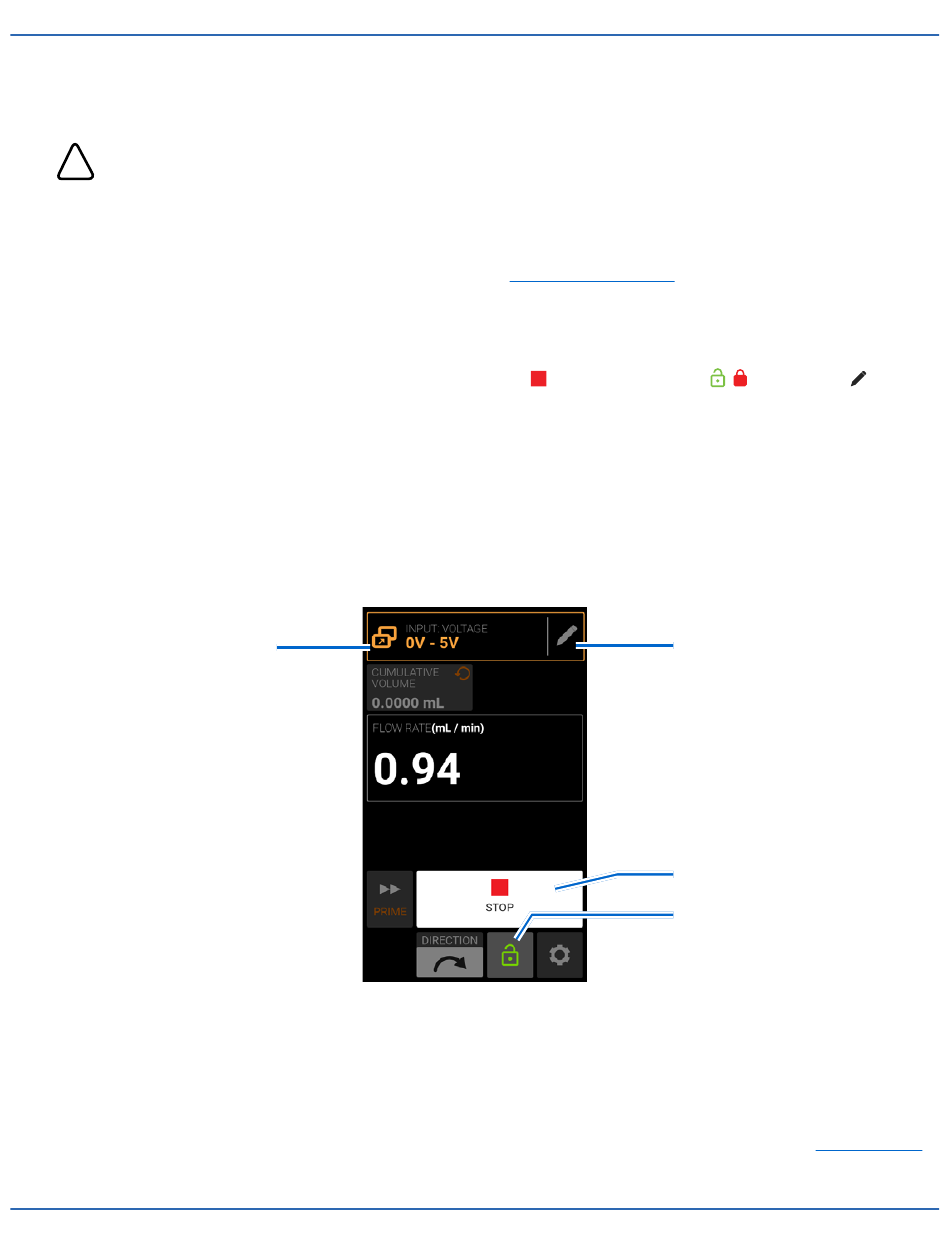

A. Mode Name Banner
A. MODE NAME BANNER: Displays the Mode Name as well as the currently selected remote type
(ANALOG CURRENT, ANALOG VOLTAGE or MASTERFLEXLIVE™). Tap the Mode Name Banner
to return to the Mode Selection screen.
B. EDIT: Tap to access the Remote Mode Edit screen. From the Remote Mode Edit screen adjustments can
be made to analog inputs and outputs for voltage and current (for further information see
on page 3-31).
3-29 Masterflex REGLO Digital Pump Drive with Advanced Connectivity
www.masterflex.com for more information.
, SCREEN LOCK
B. Edit
C. Stop
D. Screen Lock
and EDIT will be
"Analog Input"
