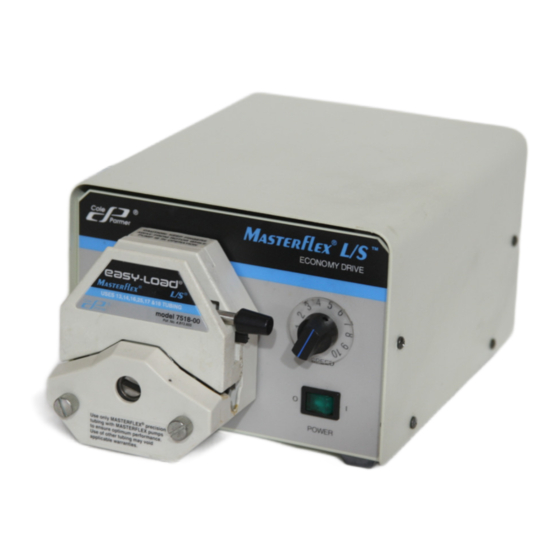

07554-80 with pump head 07518-12
Model No.
Nº de modèle
Modellnummern
Modelo No.
Modello No.
7554-80
7554-85
7554-90
7554-95
®
Cole-Parmer Instrument Co.
Cole
Parmer
11 (847) 549-7600 (Outside U.S.)
®
(847) 549-7600 (Local)
Barnant Company
11 (847) 381-7050 (Outside U.S.)
OPERATING MANUAL:
PUMP DRIVES
MANUEL DE L'UTILISATEUR :
ENTRAÎNEMENTS DE
POMPE
BEDIENUNGSANLEITUNG:
PUMPENANTRIEBE
MANUAL DE OPERACIÓN:
PROPULSORES DE LA
BOMBA
MANUALE DI ISTRUZIONI:
AZIONAMENTI
1-800-MASTERFLEX (627-8373) (U.S. and Canada only)
www.masterflex.com
1-800-637-3739 (U.S. and Canada only)
(847) 381-7050 (Local)
A-1299-0650
Edition 03
www.barnant.com
®
