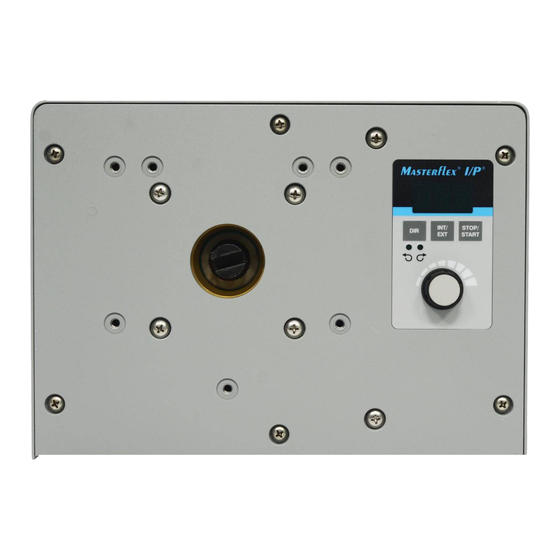

77411-00 pump drive
Model Nos.
N° de modèle
Modellnummer
Número de modelo
Modello nº
77410-10
77411-00
Cole-Parmer Instrument Co.
1-800-MASTERFLEX (627-8373) (U.S. and Canada only)
11 (847) 549-7600 (Outside U.S.)
Barnant Company
1-800-637-3739 (U.S. and Canada only)
11 (847) 381-7050 (Outside U.S.)
®
(847) 549-7600 (Local)
(847) 381-7050 (Local)
OPERATING MANUAL:
PUMP DRIVES
pages 1-10
MODE D'EMPLOI:
ENTRAÎNEMENTS
DE POMPES
F1-F10
BETRIEBSANLEITUNG:
PUMPENANTRIEBE
D1-D10
MANUAL DE FUNCIONAMIENTO:
MOTOR DE BOMBAS
E1-E10
MANUALE DI ISTRUZIONI:
UNITÀ DI
CONTROLLO POMPA
T1-T10
www.masterflex.com
www.barnant.com
1
®
A-1299-1037
Edition 02
Advertisement
Table of Contents
Related Manuals for Masterflex I/P 77410-10
Summary of Contents for Masterflex I/P 77410-10
- Page 1 UNITÀ DI Modello nº CONTROLLO POMPA 77410-10 T1-T10 77411-00 Cole-Parmer Instrument Co. 1-800-MASTERFLEX (627-8373) (U.S. and Canada only) 11 (847) 549-7600 (Outside U.S.) (847) 549-7600 (Local) www.masterflex.com Barnant Company 1-800-637-3739 (U.S. and Canada only) 11 (847) 381-7050 (Outside U.S.) (847) 381-7050 (Local) www.barnant.com...
-
Page 2: Table Of Contents
® ® TABLE OF CONTENTS Title SAFETY PRECAUTIONS ..............INTRODUCTION . -
Page 3: Introduction
® INTRODUCTION ® ® The brushless drive controls the speed of Masterflex pump heads to provide variable flow rates from 0.2 to 17 L/min (0.06 to 4.5 gallons/min). Achieve up to 26 LPM (7 GPM) with two stacked Standard ®... -
Page 4: Setup And Drive Operation
® ® SETUP AND DRIVE OPERATION 1. Attach any external control connections. (Model 77411-00 only) 2. Mount pump head and load tubing (see pump head manual). NOTE: The High-Performance I/P ® pump is mounted with the tubing to the left. The Standard I/P ®... -
Page 5: Remote Control
® ® REMOTE CONTROL (Model 77411-00 only) Selectable input (4–20 mA, 0–10V DC ) ±0.5% linearity control ±50V common mode range with respect to earth ground Internal & External START/STOP; External CW/CCW via contact closure REMOTE CONTROL SETUP 1. Place the power switch in the off position. 2. - Page 6 ® ® 17 18 Figure 2 RED/YELLOW NOTE: Colors are those of Remote Cable. BLUE Catalog number 77300-32 GREEN EXTERNAL EXTERNAL INTERNAL GREY START/STOP CW/CCW START/STOP – – – YELLOW (RESERVED) PINK WHITE PUMP READY INPUT N.O. CONTACT 4-20mA ORANGE RED/GREEN INPUT PUMP READY...
-
Page 7: Troubleshooting And Maintenance
® ® TROUBLESHOOTING AND MAINTENANCE FUSE REPLACEMENT 1 Place the power switch in the off position. 2 Disconnect the AC power input line cord from the attached line and receptacle. 3 Remove and check the fuse and replace if defective 4 Reconnect the AC power input line cord to the receptacle. -
Page 8: Cleaning
® ® TROUBLESHOOTING (Continued) If an error message is displayed, refer to the following list for possible corrective actions you can take. If these do not correct the problem, contact your dealer. ERROR MESSAGE CAUSE REMEDY “Err 2” Motor over-speed 1 Clear by pressing any key 2 Check for proper tube loading and pump operation 3 Return unit for repair if the error persists... -
Page 9: Specifications
® ® SPECIFICATIONS OUTPUT Speed: 33 to 650 rpm Torque output, maximum: Continuous 540 oz-in (39 kg-cm) @ 25°C Ambient 380 oz-in (27 kg-cm) @ 40°C Ambient Start-up 960 oz-in (69 kg-cm) Speed regulation: Line ±0.25% F.S. Load ±0.25% F.S. Drift ±0.25% F.S. -
Page 10: Technical Assistance
28W092 Commercial Ave. 625 East Bunker Court Barrington, Illinois U.S.A. 60010-2392 Vernon Hills, Illinois U.S.A. 60061-1844 1-800-637-3739 (U.S. and Canada only) 1-800-MASTERFLEX (627-8373) 11-847-381-7050 (Outside U.S.) (U.S. and Canada only) 847-381-7050 (Local) 11-847-549-7600 (Outside U.S.) FAX 11 847-381-7053 (Fax outside U.S.)
