VOLUME MODE

In Volume Mode the pump will operate at a selected rpm and/or flow rate until a selected volume of fluid has
been pumped. When the selected volume has been pumped the drive will automatically stop.

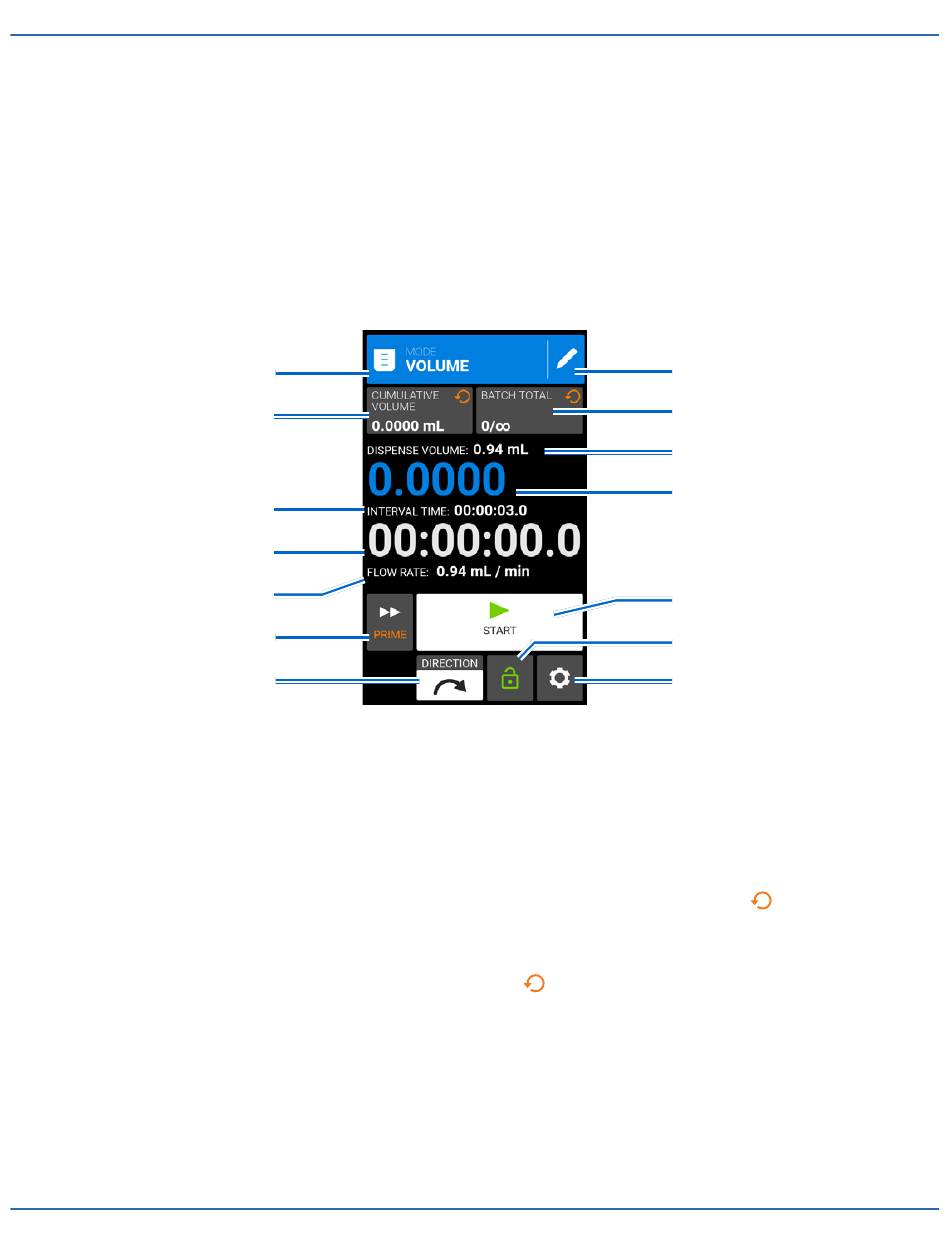

Volume Mode Run Screen

The Volume Mode Run screen is accessed by selecting VOLUME from the Mode Selection screen.
A. Mode Name Banner
C. Cumulative Volume
G. Set Interval Time
H. Interval Time Counter
L. Flow Direction
A. MODE NAME BANNER: Tap the Mode Name Banner to return to the Mode Selection screen.
B. EDIT: Tap to access the Volume Mode Edit screen. From the Volume Mode Edit screen adjustments can
be made to dispense volume, interval time, flow rate, tube options, anti-drip functions, calibration and
batch total. NOTE: Edit is inactive during operation.
C. CUMULATIVE VOLUME: Displays the current Cumulative Volume of fluid that has been pumped. To
reset the cumulative volume: Press and hold CUMULATIVE VOLUME RESET
changes to zero.
D. BATCH TOTAL: Displays the number of dispenses that have been completed in the current batch. To
reset the batch total: Press and hold BATCH RESET
E. SET DISPENSE VOLUME: Displays the selected volume of fluid for dispensing.
F. DISPENSE VOLUME COUNTER: Displays a countdown of the fluid volume during operation.
G. SET INTERVAL TIME: Displays the set time the pump pauses between dispenses.
H. INTERVAL TIME COUNTER: Displays a countdown of the set interval time during operation.
I. FLOW RATE: Displays the current flow rate in the unit of measurement selected by the user.
