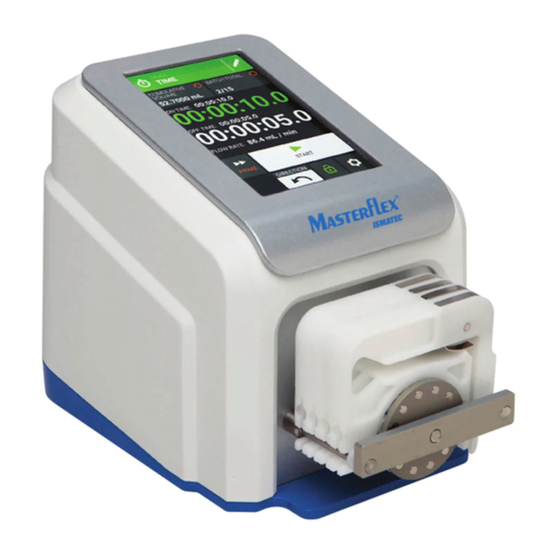

OPERATING MANUAL:
REGLO DIGITAL PUMP
DRIVES WITH ADVANCED
CONNECTIVITY
Model Nos.
78018-10
78018-12
78018-14
78018-20
78018-22
78018-24
78018-40
78018-42
A-1299-5201
Edition 01
Advertisement
Table of Contents
Related Manuals for Masterflex Ismatec Reglo 78018-10
Summary of Contents for Masterflex Ismatec Reglo 78018-10
- Page 1 Model Nos. 78018-10 78018-12 78018-14 78018-20 MASTERFLEX REGLO 78018-10 78018-22 ® 78018-24 78018-40 78018-42 MASTERFLEX REGLO 78018-40 ® A-1299-5201 Edition 01 (US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739 (Outside US & Canada) 1-847-549-7600 • 1-847-381-7050 www.masterflex.com • techinfo@masterflex.com...
- Page 2 © 2019 Cole-Parmer Instrument Company. All rights reserved. Masterflex® is a registered trademark of the Cole-Parmer Instrument Company. Trademarks bearing the symbol in this publication are registered in the US and in other countries. ® PUMP FOR LIQUIDS ORIGINAL INSTRUCTIONS...
-
Page 3: Table Of Contents
Device Information 3-14 SECTION 3: OPERATION 3-15 Mode Selection Screen 3-15 Continuous Mode 3-16 Continuous Mode Run Screen 3-16 Continuous Mode Operation 3-17 Saving Continuous Mode Settings as a New Program 3-18 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 4 Miniflex Pump Head Replacement 3-41 Troubleshooting 3-42 Error Definitions 3-43 Accessories 3-44 REGLO Accessories 3-44 Cassettes 3-44 Color-Coded Three-Stop Tubing 3-45 Specifications 3-46 Technical Assistance 3-48 Product Return 3-48 Warranty 3-48 Disposal 3-48 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 5: Section 1: Introduction
The REGLO range features Ethernet and Wi-Fi connections for web-based remote control and monitoring using the MasterflexLive™ website (see www.masterflex.com), and remote analog control and monitoring through the pump drive’s DB-25 female connection port. -
Page 6: Available Models
Takes MS/CA Click’n’go tube cassettes for easy loading and removal. • Can take up to two channels or up to four channels (depending on the model) allowing simultaneous multiple fluid channels on the same pump. Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 7: Peristaltic Miniflex Models
Go to www.masterflex.com for further information. Non-Peristaltic Pump Models The REGLO is also available in a Gear Pump model (78018-50) and a Piston Pump model (78018-60). Go www.masterflex.com for further information. Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 8: Section 2: Basic Setup & Settings
SECTION 2: BASIC SETUP & SETTINGS Touchscreen Pump Head Handle Pump Head Miniflex Models Touchscreen Roller-Head Cassette Cassette Models DB-25 Port Power Switch Power Cable Locking Barrel Connector Ethernet Port USB Port Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 9: Touchscreen Icons
Calibration Complete Program Clockwise Ramp Down Close/Cancel Ramp Up Confirm Record Volume Continuous Remote Counterclockwise Reset Delete Screen Lock Display Brightness Settings Edit Start Language Stop New Program Time Pause Volume Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 10: Before Starting The Drive
Recalibrate tubing regularly to maintain the best flow rate accuracy (for further information see "Tube Calibration" on page 3-8). • For tubing selection and compatibility go to www.masterflex.com. • Remove the pump drive’s power cord from the mains power outlet when cleaning or performing maintenance on the drive. -
Page 11: Loading Tubing
Allow the tubing to hang freely to prevent twisting. c. Insert the second stopper of the tubing into the cassette’s rear tube channel. 3. Replace the cassette onto the roller-head. Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 12 20-30 minutes. • For applications with a high differential pressure (>1 bar), the use of a cassette with a pressure lever is recommended. Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 13: Miniflex Models
Seated over the roller-head. c. Sitting in the V-shaped grooves located on either side of the pump head. 3. Turn the pump head handle clockwise to close the pump head. Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 14 When using new tubing it is possible that the pump will not prime and/or will not dispense fluid (depending on the type of tubing used). If this occurs, it is recommended that you wet the tubing and then run the pump with the tubing for approximately 20-30 minutes. Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 15: Priming The Pump Drive
4. Switch the drive on using the power switch located at the rear of the drive. 5. Navigate to the Continuous, Time or Volume Mode screens. 6. Press and hold PRIME until no bubbles are visible in the tubing. Priming will stop when PRIME is released. Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 16: Tube Calibration
NOTE: If required, the pump can be run dry while conditioning the tube. 7. Press and hold PRIME to prime the pump. Priming will stop when PRIME is released. Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 17 The best results are obtained after tubing has been run in the pump for approximately 20-30 minutes. • Steps 9–14 can be repeated as necessary to optimize the accuracy of the tubing calibration. Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 18: Settings
2. Tap DEVICE NAME. The Device Name screen will be displayed. 3. Enter the desired pump name using the onscreen keypad (up to 8 characters). 4. Tap CONFIRM to save or CANCEL to discard changes. 3-10 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 19: Setting The Time
5. If required, enter the network PASSWORD using the onscreen keypad. 6. Tap CONNECT to join the network or CANCEL to cancel. 7. Tap CONFIRM to return to the Settings screen. 3-11 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 20: Ethernet Settings
The Settings screen will be displayed. 2. SCROLL through the Settings screen pages to locate DISPLAY BRIGHTNESS. 3. Use the slider to adjust the touchscreen brightness to the desired level. 3-12 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 21: Auto Start
Select the desired current or voltage operating range from the available list. c. Tap CONFIRM to save or CANCEL to discard changes. The Analog Output screen will be displayed. 6. Tap CONFIRM 3-13 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 22: Device Information
Settings screen pages to locate DEVICE INFORMATION. 3. Tap DEVICE INFORMATION. The Device Information screen will be displayed. See also "Software & Firmware Updates" on page 3-39, and "Restore Factory Settings" on page 3-39. 3-14 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 23: Section 3: Operation
Selection screen can be accessed from any of the mode screens by tapping the MODE NAME BANNER. Continuous Mode Time Mode Volume Mode Remote Mode Page Scroll Add New Program Settings Tap the desired mode or program to access individual mode or program screens. 3-15 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 24: Continuous Mode
Drive" on page 3-7). G. START/STOP: Tap START to begin operation. Once operation has commenced STOP will be displayed. H. FLOW DIRECTION: Tap DIRECTION to select either clockwise or counterclockwise 3-16 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 25: Continuous Mode Operation
8. Tap STOP when the drive operation is no longer required. NOTE: In Continuous Mode the drive will continue to operate at the displayed flow rate and direction until stopped. 3-17 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 26: Saving Continuous Mode Settings As A New Program
• Once saved, new programs are added in alphabetical order to the bottom of the Mode Selection screen. • If there are multiple programs tapping SCROLL will display additional pages. 3-18 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 27: Time Mode
I. FLOW RATE: Displays the current flow rate in the unit of measurement selected by the user. J. PRIME: Press and hold to prime the pump drive (for further information see "Priming the Pump Drive" on page 3-7). 3-19 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 28: Time Mode Edit Screen
Time Mode Edit screen (for further information see "Tube Calibration" on page 3-8). • If required, prime the pump before operation (for further information see "Priming the Pump Drive" on page 3-7). 3-20 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 29 . The pump will now operate until the batch total is completed or until PAUSE STOP is tapped. 11. If required, adjustments can be made to any of the Time Mode option settings during operation. To make any adjustments: 3-21 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 30: Saving Time Mode Settings As A New Program
• Once saved, new programs are added in alphabetical order to the bottom of the Mode Selection screen. • If there are multiple programs tapping SCROLL will display additional pages. 3-22 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 31: Volume Mode
H. INTERVAL TIME COUNTER: Displays a countdown of the set interval time during operation. I. FLOW RATE: Displays the current flow rate in the unit of measurement selected by the user. 3-23 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 32: Volume Mode Edit Screen
• Confirm that the tubing has been calibrated by checking that Calibration Complete is displayed on the Volume Mode Edit screen (for further information see "Tube Calibration" on page 3-8). 3-24 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 33 Enter the desired number of dispenses in a batch using the onscreen keypad. NOTE: If required, tap INFINITE ∞ to select an infinite number of dispense cycles. If infinite is selected, the pump will run continuously. 3-25 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 34: Saving Volume Mode Settings As A New Program
• Once saved, new programs are added in alphabetical order to the bottom of the Mode Selection screen. • If there are multiple programs tapping SCROLL will display additional pages. 3-26 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 35: Anti-Drip
6. If required, adjustments can be made to flow rate during operation. To make adjustments: a. Tap STOP and then repeat steps 4–6 above. b. Tap START to complete the pump operation once the desired changes have been made. 3-27 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 36 Volume Mode Edit screen. If saved, the recorded dispense volume will now be displayed under VOLUME. 9. Tap CONFIRM . The Volume Mode Run screen will be displayed. 3-28 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 37: Remote Mode
B. EDIT: Tap to access the Remote Mode Edit screen. From the Remote Mode Edit screen adjustments can be made to analog inputs and outputs for voltage and current (for further information see "Analog Input" on page 3-31). 3-29 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 38: Using Masterflexlive
To unlock the screen: Press and hold LOCKED until the icon changes to UNLOCKED . NOTE: Stop is disabled when the screen is locked. 3-30 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 39: Analog Input
To unlock the screen: Press and hold LOCKED until the icon changes to UNLOCKED . NOTE: Stop is disabled when the screen is locked. • www.masterflex.com for further information on using analog remote control and monitoring. 3-31 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 40: Saving Remote Mode Settings As A New Program
• Once saved, new programs are added in alphabetical order to the bottom of the Mode Selection screen. • If there are multiple programs tapping SCROLL will display additional pages. 3-32 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 41: Custom Program Modes
2. Tap TIME. The Time New Program screen will be displayed. 3. Tap PROGRAM1. If required, delete the characters using the back arrow on the onscreen keypad and 3-33 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 42 • Once saved, new programs are added in alphabetical order to the bottom of the Mode Selection screen. • If there are multiple programs tapping SCROLL will display additional pages. 3-34 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 43: Adding A New Program: Volume Mode
8. Tap DIRECTION to select either clockwise or counterclockwise flow direction. 9. Tap BATCH TOTAL to adjust the number of dispenses in each batch cycle. The Batch Total screen will be displayed. 3-35 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 44: Adding A New Program: Remote Mode
Tap CONFIRM to save or CANCEL to discard changes and return to the Remote New Program screen. 8. Tap DIRECTION to select either clockwise or counterclockwise flow direction. 3-36 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 45: Using Program Modes
• "Adding a New Program: Continuous Mode" on page 3-33. • "Adding a New Program: Time Mode" on page 3-33. • "Adding a New Program: Volume Mode" on page 3-35. 3-37 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 46: Deleting A Program
The Program Edit screen will be displayed. 2. Tap DELETE PROGRAM 3. Tap DELETE to delete the program and return to the Mode Selection screen or CANCEL to return to the previous screen. 3-38 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 47: Section 4: Service & Maintenance
The Settings screen will be displayed. 2. SCROLL through the Settings screen pages to locate DEVICE INFORMATION. 3. Tap DEVICE INFORMATION. 4. Tap FACTORY RESET and follow the onscreen prompts. 3-39 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 48: Db-25 Electrical Connections
Open Head Sensor Relay Output (N.O.) General Alarm Relay Output Common Not Used Not Used Open Head Sensor Relay Output Common General Alarm Relay Output (N.O.) 11–13 Not Used 24–25 Not Used 3-40 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 49: Miniflex Pump Head Replacement
5. Load tubing and run a dispense calibration to confirm the new pump head is operating correctly (for further information see "Loading Tubing" on page 3-3, and "Tube Calibration" on page 3-8). 3-41 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 50: Troubleshooting
Touchscreen unrespon- Wearing thick latex Remove gloves before using the touchscreen. sive. gloves can make the screen less responsive. 3-42 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 51: Error Definitions
Bad EEPROM checksum for Factory Cal. Actions: Error will be cleared after 10 seconds and parameters will be reset to default values. If error persists see "Technical Assistance" on page 3-48. 3-43 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 52: Accessories
Section 4: Service & Maintenance ACCESSORIES REGLO Accessories To purchase accessories or for further information visit www.masterflex.com. The following accessories are available for the REGLO Digital Pump Drive: Description Part Number Footswitch with 6 ft (1.8 m) cable and DB-25 male connector... -
Page 53: Color-Coded Three-Stop Tubing
WHITE/WHITE/WHITE 1.02 WHITE/RED/WHITE 1.09 RED/RED/RED 1.14 RED/GRAY/RED 1.22 GRAY/GRAY/GRAY 1.33 YELLOW/YELLOW/YELLOW 1.42 YELLOW/BLUE/YELLOW 1.52 BLUE/BLUE/BLUE 1.65 BLUE/GREEN/BLUE 1.75 GREEN/GREEN/GREEN 1.85 PURPLE/PURPLE/PURPLE 2.06 PURPLE/BLACK/PURPLE 2.29 PURPLE/ORANGE/PURPLE 2.54 PURPLE/WHITE/PURPLE 2.79 BLACK/WHITE/BLACK 3.17 3-45 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... -
Page 54: Specifications
(0-20 mA @ 249 Ω; ± 50 V common mode range) Voltage input (0-10 VDC @ 10 kΩ; ± 50 V common mode range) RJ45 Ethernet USB, Type A (5 VDC @ 0.5 A) 3-46 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 55 Exposed material is painted aluminum and ABS plastic COMPLIANCE All Models UL 61010-1 US/CAN For CE mark: EN61010-1, Low Voltage Directive EN61326-1, EMC Directive EN50581, RoHS Directive Pump Head EN809, Machinery Directive 3-47 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex...
-
Page 56: Technical Assistance
Once the useful life of the product has ended, please ensure proper disposal according to local laws. Plastic and electronic components should be disposed of at a recycling facility. Please refer to local regulations regarding proper disposal. 3-48 Masterflex REGLO Digital Pump Drive with Advanced Connectivity Masterflex... - Page 57 US & Canada only *EN809 manufactured by: Toll Free 1-800-MASTERFLEX | 1-800-637-3739 Cole-Parmer Instrument Company 28W092 Commercial Avenue, Barrington, IL 60010 Outside US & Canada techinfo@masterflex.com | www.masterflex.com 1-847-549-7600 | 1-847-381-7050...
