Masterflex L Series Quick Start Manual

Masterflex L Series Quick Start Manual

Digital modular dispensing drives

Advertisement

Quick Links

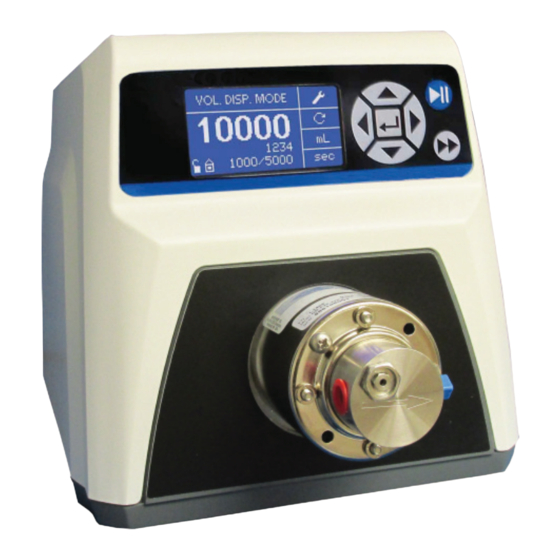

Digital Gear Pump Drive and Systems
DESCRIPTION
Digital Drive, 36-3600 rpm
Digital Gear Pump System, 0.092 mL/rev, 331.2 mL/min max
Digital Gear Pump System, 0.316 mL/rev, 1137.6 mL/min max
Digital Gear Pump System, 0.64 mL/rev, 2304 mL/min max
Digital Gear Pump System, 0.91 mL/rev, 3276 mL/min max
Digital Gear Pump System,1.17 mL/rev, 4212 mL/min max
Digital Gear Pump System, 0.261 mL/rev, 939.6 mL/min max
Digital Gear Pump System, 0.092 mL/rev, 331.2 mL/min max
Digital Gear Pump System, 0.017 mL/rev, 61.2 mL/min max
Gear Pump Heads—316SS Body and PTFE Seals
GEAR SET
mL/rev
N21
0.316
N23
0.64
N25
0.91
V21
0.042
V23
0.084
X21
0.017
Gear Pump Heads—316SS Body and PTFE or Viton Seals
GEAR SET
mL/rev
P23
0.26
P25
0.58
P35
1.17
T23
0.092
US & Canada only
Toll Free 1-800-MASTERFLEX | 1-800-637-3739
Outside US & Canada
1-847-381-7050
A-1299-1145B Edition 05
CAT. NO.
75211-70
74014-02
74014-12
74014-22
74014-32
74014-42
74014-52
74014-62
74014-72
Max. mL/min
CAT. NO.
1140
07002-17
2300
07002-23
3280
73011-16
150
07002-26
300
07002-27
60
07002-25
Max. mL/min
CAT. NO.
940
73004-00
2090
07003-02
4210
07003-04
330
07002-14
*EN809 manufactured by:
Masterflex LLC
28W092 Commercial Avenue, Barrington, IL 60010
techinfo@masterflex.com | www.masterflex.com
®
MASTERFLEX
L/S
DIGITAL MODULAR
DISPENSING DRIVES
Quick Start
®
SERIES
Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the L Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Masterflex L Series

  • Page 1 07003-02 1.17 4210 07003-04 0.092 07002-14 US & Canada only *EN809 manufactured by: Toll Free 1-800-MASTERFLEX | 1-800-637-3739 Masterflex LLC 28W092 Commercial Avenue, Barrington, IL 60010 Outside US & Canada techinfo@masterflex.com | www.masterflex.com 1-847-381-7050 Quick Start Guide A-1299-1145B Edition 05...
  • Page 2 FLOW RATE SAFETY DANGER: Remove power from the pump before any cleaning operation is started. CAUDAL PRECAUTIONS WARNINGS: Remove power from the pump before attempting any maintenance. DÉBIT DURCHFLUSSRATE The Power switch on the Back Panel is not the main disconnect. A contactor or other device that INDICE DI FLUSSO routinely disconnects and reapplies the AC line to the drive to start and stop the motor can cause drive hardware damage.
  • Page 3 VOL DISP. MODE VOL DISP. MODE Product Accessories VOLUMEN DISP. VOLUMEN DISP. DISTR. VOLUME DISTR. VOLUME 07523-92 Footswitch w/DB-25 male connector MENG.FÖRD.MOD. MENG.FÖRD.MOD. MOD DIST VOLUME MOD DIST VOLUME 07523-94 DB-25 male connector for remote control 定量输注模式 分量給液モード (connector only) 07523-95 Cable assembly, DB-25 male connector and 25-ft (7.9m) cable w/stripped wire ends...
  • Page 4 Graphic Interface Keypad Legend CONTINUOUS MODE SETUP PUMP DIRECTION MODO CONTINUO MONTAJE DIRECCIÓN BOMBA MODE CONTINU INSTALLATION DIRECTION POMPE DAUERMODUS SETUP PUMPRICHTUNG MOD CONTINUA IMPOSTAZIONE DIREZIONE POMPA セットアップ START/STOP INICIO/DETENCIÓN DÉMARRER/ARRÊTER START/STOPP AVVIO/ARRESTO FLOW RATE CAUDAL DÉBIT DURCHFLUSSRATE INDICE DI FLUSSO ENTER ENTRE ENTRER...
