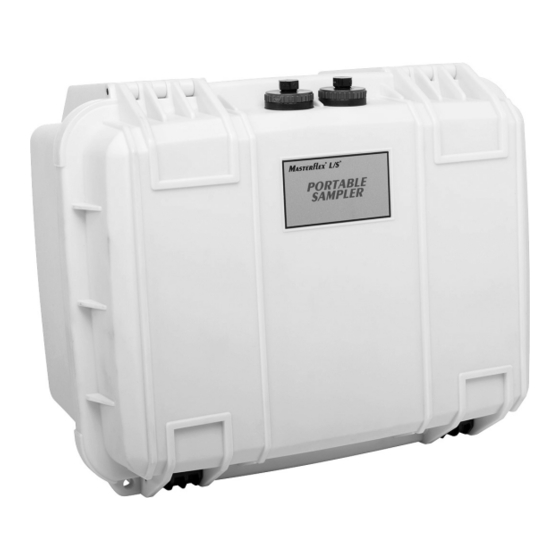

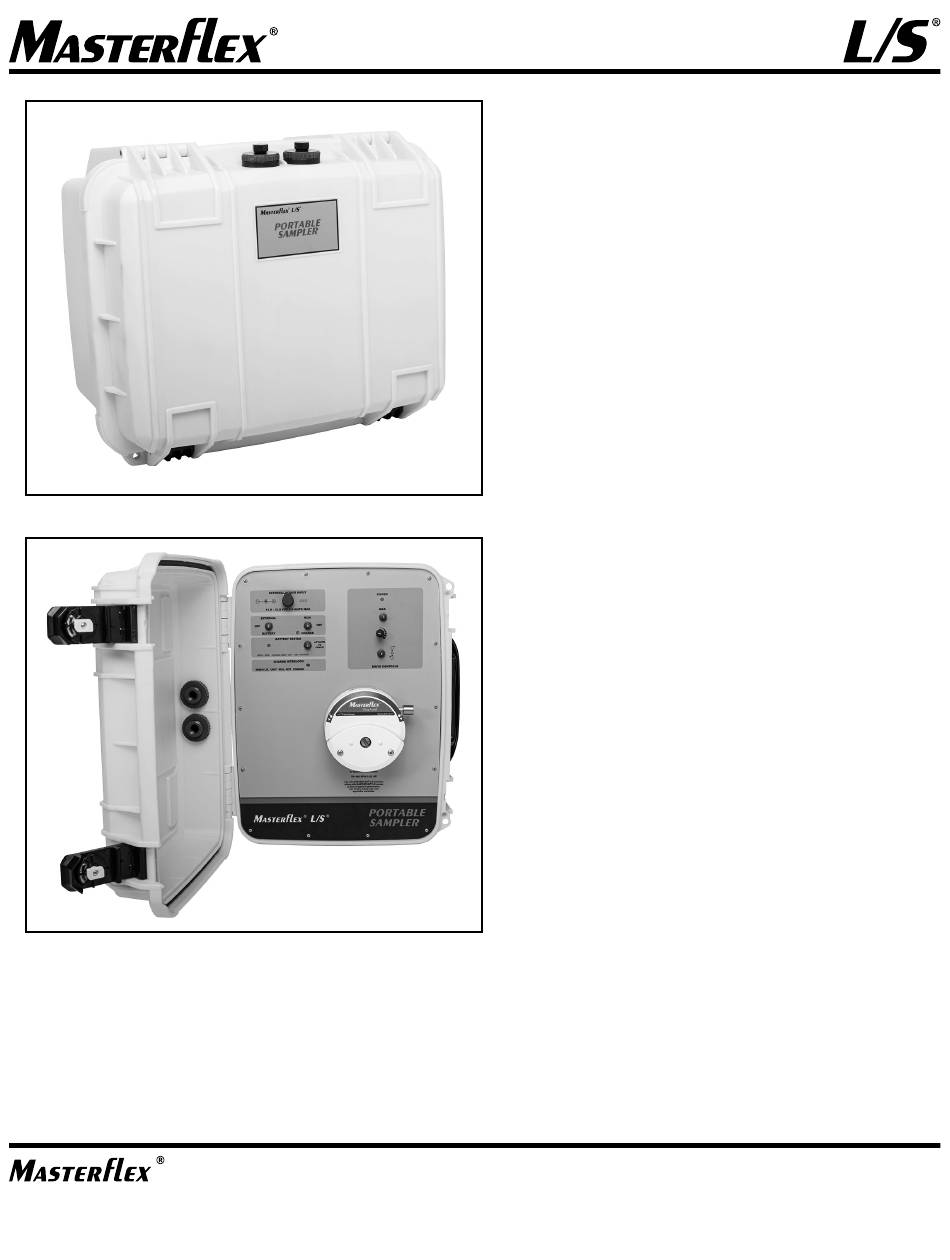

- Page 1 OPERATING MANUAL: PORTABLE SAMPLING DRIVES Model Nos. 07571-02 07571-02 Portable Sampling Drive A-1299-0828B Edition 10 (US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739 (Outside US & Canada) 1-847-549-7600 • 1-847-381-7050 www.masterflex.com • techinfo@masterflex.com...
- Page 2 Preface ® © 2019 Cole-Parmer Instrument Company. All rights reserved. Masterflex – Reg TM Cole-Parmer Instrument Company. Trademarks bearing the symbol in this publication are registered in the U.S. and in other countries. ® PUMP FOR LIQUIDS ORIGINAL INSTRUCTIONS C-FLEX, NORPRENE, PHARMED, TYGON—Reg TM Saint-Gobain Performance Plastics Corp.
- Page 3 Mode of Operation Switch (RUN/CHARGE) in the “CHARGE” position and all other switches in the off position. This will help prevent accidental activation of the drive mechanism so fingers or loose clothing will not get caught in the pump drive mechanism. Masterflex Portable Sampling Drive Operating Manual...
- Page 4 This product is not designed for, nor intended for use in patient connected applications; including, but not limited to, medical and dental use, and Production Use accordingly has not been submitted for FDA approval. Limitation Portable Sampling Drive Operating Manual Masterflex...
-
Page 5: Table Of Contents
SPECIFICATIONS ......... . . 7-1 Section 8 WARRANTY, PRODUCT RETURN, and TECHNICAL ASSISTANCE . . 8-1 Masterflex Portable Sampling Drive Operating Manual... - Page 7 Pump Head Sealing Gasket ........Masterflex...
-
Page 9: Introduction
Supply/Converter or from an automotive 12V DC electrical system if used with the Automotive Power Adapter accessory. It is designed to accept and power one MASTERFLEX® L/S® Standard, QUICK LOAD®, EASY-LOAD® or PTFE Tubing Pump Head for fl uid transfer and sampling in the fi... -
Page 11: Setup
Th e drive does not include a Pump Head or tubing. Th e drive is capable of running one (1) of the following Pump Heads: MASTERFLEX® L/S® Standard, L/S QUICK LOAD, L/S EASY-LOAD or L/S PTFE Tubing Pump Head. - Page 12 For optimum performance and ease of use, the EASY-LOAD or PTFE Tubing Pump Head is recommended. WARNING: Tubing breakage may result in fluid being sprayed from the pump. Use appropriate measures to protect the operator and equipment. Portable Sampling Drive Operating Manual Masterflex...
-
Page 13: Operation
J– Max F– Battery Status Indicator I– Speed Control E– Battery Status Enabling Switch H– Pump Rotational Direction Selection G– Charge Interlock Indicator and On/Off Switch Pump Head Sealing Gasket Figure 1- Control Panel Masterflex Portable Sampling Drive Operating Manual... -
Page 14: Controls And Functions
Selection Switch (H). K. DRIVE POWER INDICATOR A green LED which illuminates when the Rotational Direction Selection (ON/OFF) Switch is in a position other than off . Th is indicates that the drive mechanism is powered. Portable Sampling Drive Operating Manual Masterflex... -
Page 15: Drive Operation
Place the Power Source Selection Switch (B), (EXTERNAL/BATTERY) to the “BATTERY” position. B. Place the Mode of Operation Selection Switch (C), (RUN/CHARGE) to the “RUN” position. Masterflex Portable Sampling Drive Operating Manual... - Page 16 “RUN” position. C. SelectPumpRotational Direction Selection On/Off Switch (H), CW or CCW. (See Figure 1.) (When changing directions, turn off the power first, which is the center or OFF position of the Rotational Direction Switch.) Portable Sampling Drive Operating Manual Masterflex...
- Page 17 CW to increase flow rate or CCW to decrease flow rate. F. To “Prime the Tubing”, toggle the “MAX” Switch (J), up or down and hold to make the pump run at maximum speed. Masterflex Portable Sampling Drive Operating Manual...
-
Page 19: Maintenance
C. Place the Mode of Operation Selection Switch (C) (CHARGE/RUN) to the “CHARGE” position. D. The charge indicator will illuminate when charging circuit is powered. E. The battery will fully charge in 8–12 hours from a fully discharged state. Masterflex Portable Sampling Drive Operating Manual... -
Page 20: Battery Replacement
E. Using a 5/16 in nut driver, loosen and remove the four (4) nuts and bracket holding the battery restraining bar in place. F. Remove the battery. Figure 2. Battery Replacement Portable Sampling Drive Operating Manual Masterflex... - Page 21 C. Gently remove the control panel from the housing and disconnect the wires from the battery. D. Remove the brushes using a screwdriver and rotate the brush holder 90° CCW. The brush should pop out. E. Vacuum any brush dust from the brush holder openings. Masterflex Portable Sampling Drive Operating Manual...
-
Page 22: Motor Brush Replacement
Remove the release liner from the adhesive backing of the new gasket and position the new gasket within the gasket outline shown on the control panel. Pump Head Sealing Gasket Figure 4. Pump Head Sealing Gasket Portable Sampling Drive Operating Manual Masterflex... -
Page 23: Replacement Parts
Gasket, Pump Head (pkg of 6) 07571-57 Sealing Boots, Switches and Speed Control (pkg. of 6) 07571-58 Knob and Cap, Speed Control 07571-59 Motor Brush Replacement Kit, set of two 07571-60 O-Ring, Case Seal 46" Length Masterflex Portable Sampling Drive Operating Manual... -
Page 25: Troubleshooting
D. If using a PTFE pump head, install and start the tubing per the instructions in the pump head manual. Excessive tightening of the occlusion bed can jam the drive mechanism. Tighten the occlusion bed gradually as indicated in the pump head manual. Masterflex Portable Sampling Drive Operating Manual... - Page 26 The drive is protected against polarity reversal and will not operate if the polarities are reversed. K. If none of the above solutions work, contact your authorized dealer for service. Portable Sampling Drive Operating Manual Masterflex...
- Page 27 G. The drive is protected against polarity reversal and will not operate if the polarities are reversed. The sleeve is negative, the center is positive. H. If none of the above solutions work, contact your authorized dealer for service. Masterflex Portable Sampling Drive Operating Manual...
-
Page 29: Accessories
Part No. Description 07570-04 Tubing weight, flow-through fits L/S® size 15, 24 or 25 tubing 07571-50 Automotive Power Adapter, Current Limited 07571-52 Auxiliary Power Pack w/Charger 115V AC 07571-54 Auxiliary Power Pack w/Charger 230V AC Masterflex Portable Sampling Drive Operating Manual... -
Page 31: Specifications
Section 7 Operating Speed 70 to 400 rpm Operating Voltage/Frequency: Model 07571-02 115V AC nominal 50/60 Hz (100–130) V AC @ 120mA AC 230V AC nominal 50/60 Hz (200–260) V AC @ 60mA AC 12V DC nominal (11–16)V DC @2.4A DC... -
Page 33: Warranty, Product Return, And Technical Assistance
Section 8 and Technical Assistance Warranty Use only MASTERFLEX precision tubing with MASTERFLEX pumps to ensure optimum performance. Use of other tubing may void applicable warranties. Th is product is warranted against defects in material or workmanship, and at the... - Page 34 APPENDIX A RECOMMENDED PUMP HEADS, TUBING SIZES, FORMULATIONS AND MODEL NUMBERS TUBING MODEL NUMBERS PUMP ® ® ® ® ® PHARMED VITON TYPE TUBING TYGON TYGON ® ® MODEL SILICONE C-FLEX NORPRENE PTFE Fluoroelastomer PUMP HEAD SIZE Standard 07013-20 96400-13 06424-13 06409-13 06429-13...
- Page 35 APPENDIX B LIFT VERSUS TUBING SIZE, FORMULATION & FLOW ALL FLOWS SHOWN ARE ML/MIN @70°F (21.1°C) ® ® ® LIFT TUBING SILICONE TYGON TYGON NORPRENE PTFE FEET SIZE C-FLEX PHARMED BPT ® 1085 1060 1040 1030 15′ Max LIFT 15′ Max LIFT 4 mm 6 mm Notes:...
- Page 36 US & Canada only *EN809 manufactured by: Toll Free 1-800-MASTERFLEX | 1-800-637-3739 Cole-Parmer Instrument Company 28W092 Commercial Avenue, Barrington, IL 60010 Outside US & Canada techinfo@masterflex.com | www.masterflex.com 1-847-549-7600 | 1-847-381-7050...
