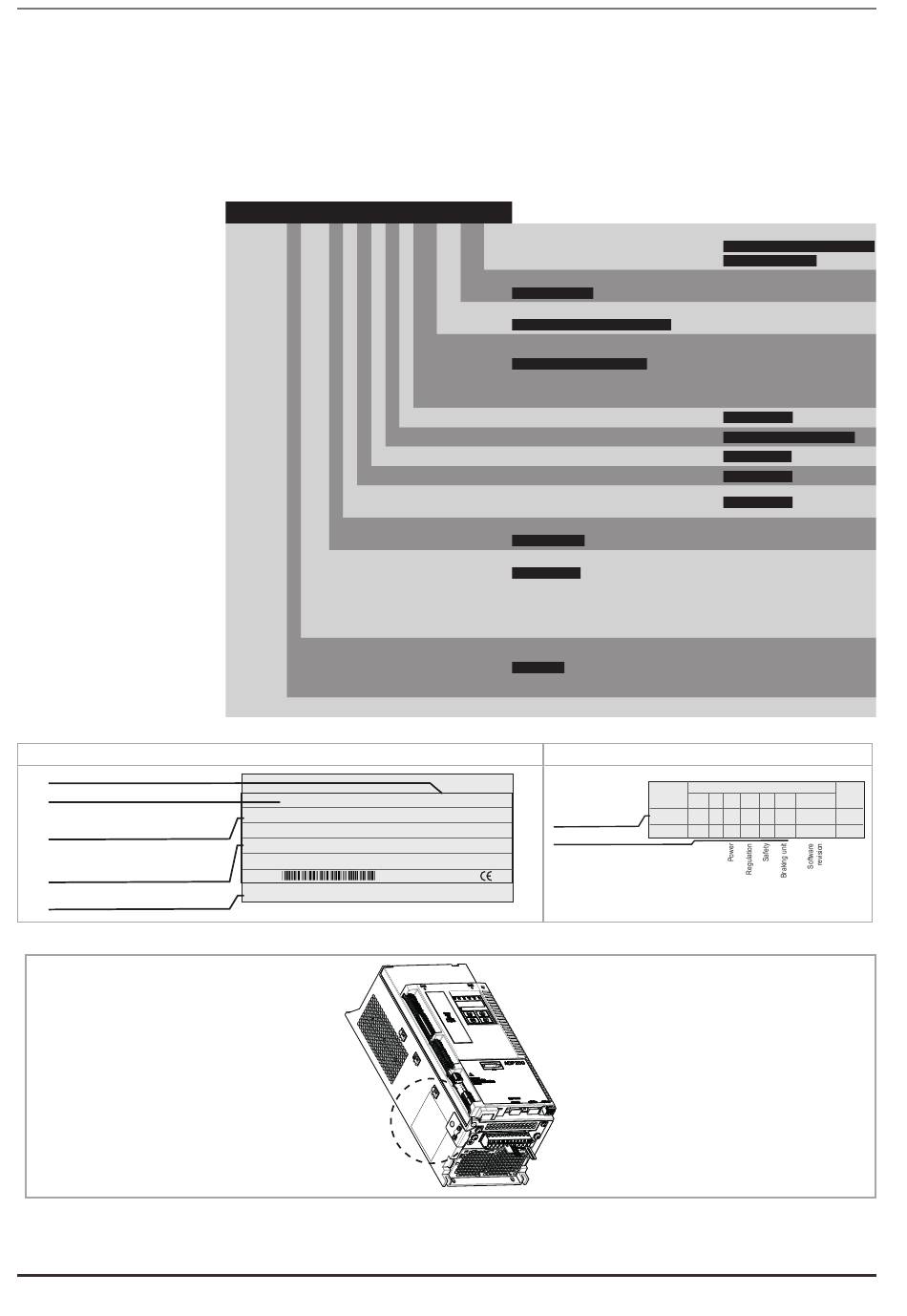

2.4 Product identification

The basic technical data of the inverter are included in the product code and data plate.
The inverter must be selected according to the rated current of the motor.
The rated output current of the drive must be higher than or equal to the rated current of the motor used.
Name of model (code)
Serial number
Drive model
Input (mains supply, frequency, AC Input
Current at constant torque)
Output (Output voltage, frequency, power,
current, overload)
Approvals
Position of plates on the drive
10
ADP200 2 075 -K B P -F-4-C-RS-ER -24 -I01
Data plate
Type : ADP200-2075-KBP -4-C-RS
Inp: 230Vac-480Vac (Fctry set=400) 50/60Hz 3Ph
24A@400Vac 21A@480Vac
Out : 0-480Vac 300Hz 3Ph 7.5kW@400Vac 10 Hp @ 460Vac
18.5A @400V Ovld . 178%-60s 16.7A@460V Ovld.170%-60s
Code
ADP200 • Quick installation guide - Specifications and connection
I/O card version:
[Empty] = standard I/O card EXP-IO-
D8A4R2-ADP
24 VDC external power supply:
24 = included,
Encoder Repetition:
ER = with encoder repetition;
Encoder card:
RS = Resolver
ED = EnDat;
SI = Sinusoidal Encoder;
CANBus:
Rated voltage:
EMI Filter:
PID IMM application:
Braking unit:
X = not included
Keypad:
K = included
Inverter power in kW:
075 = 7.5kW
110 = 11kW
150 = 15kW
185 = 18.5kW
220 = 22kW
Mechanical dimensions of the drive:
2 = size 2
3 = size 3
Servodrive, ADP200 series
S/N: 09012345
Firmware revision
Cards revision
Made in Italy
IO1 = optional I/O card EXP-
IO-D10A3R2-ADP
[empty] = not included
[Empty] = not included
DE = Digital Encoder;
(standard);
HI = Hiperface;
SC = Sinusoidal SinCos
Encoder;
C = included
4 = 400Vca, three-phase
F = included
P = included
B = included
(1-line x 4-character alpha-
numerical LED display)
300 = 30kW
370 = 37kW
450 = 45kW
550 = 55kW
750 = 75kW
4 = size 4
5 = size 5
5S = size 5 slim
Firmware and card revision plate
Firmware HW release
Release
D F P R
B A S F
S/N 09012345 Prod.
CONF
S BU SW . CFG
10.10.10 A1
