Model
Code
Page
101. Special tools
101
11
6000-- 8750
1. 1. 1995

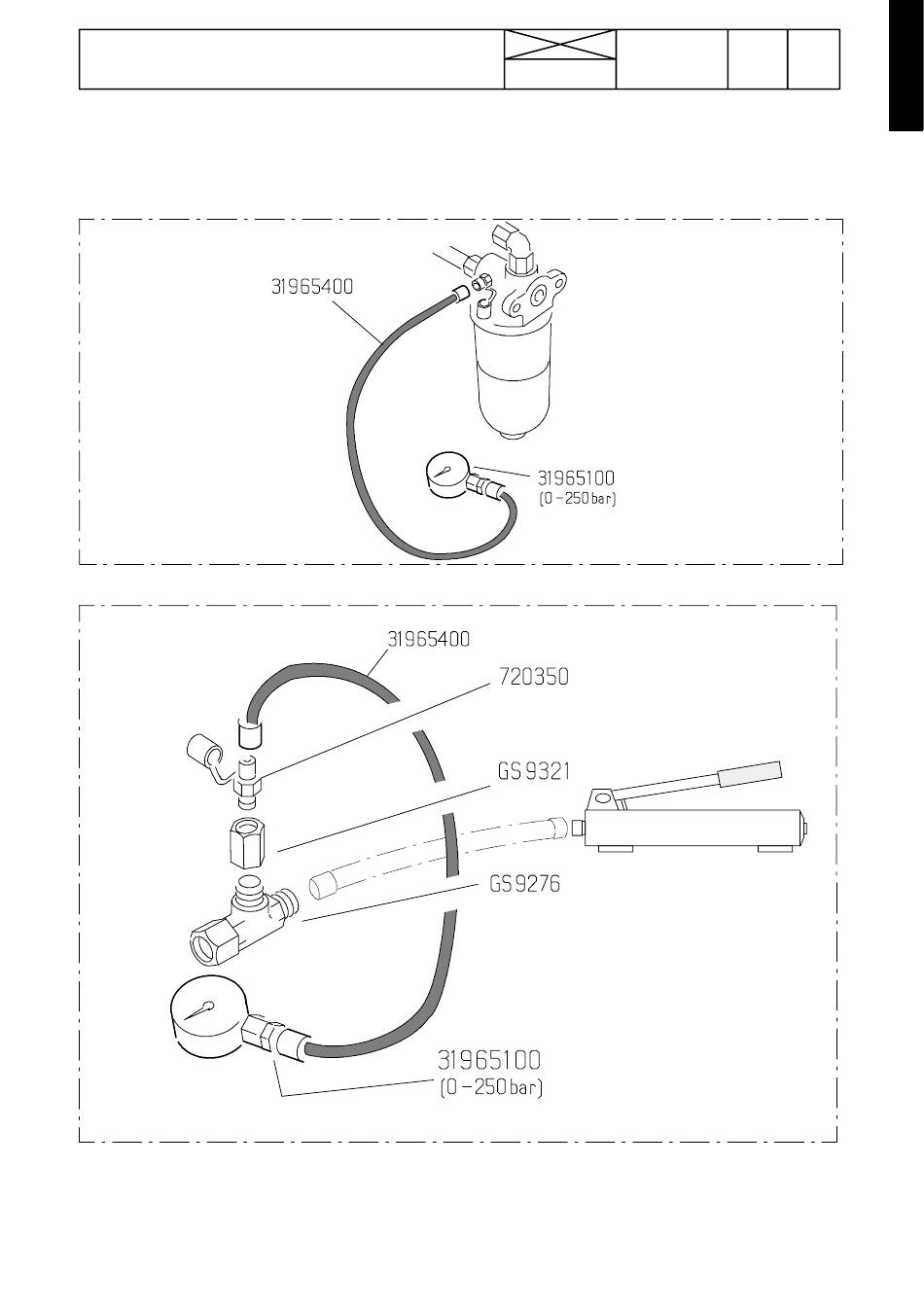

92. Pressure measuring equipment
Note! Measuring equipment shown on pages 101/11---13 are included in the pressure measuring kit 31965000 which can be
ordered from Tractor Works. These equipment can also be ordered separately.
Measuring steering system working pressure (pressure at test point 14,0 ---15,5 MPa).
A. Measuring opening pressure of steering system shock valve (opening pressure 19,0 ---21,5 MPa).
B. Measuring opening pressure of power lift shock valve (opening pressure 20 ---21 MPa).
Note! Connector GS9276 has thread 3/4---16 for connecting the hand pump. The hand pump is not included in the pressure mea-
suring kit 31965000.
1289
