5.6.6 USB Port
Panel socket USB-B.
Pin
Signal mark
1
+5 V
2
USB data -
3
USB data +
4
GND

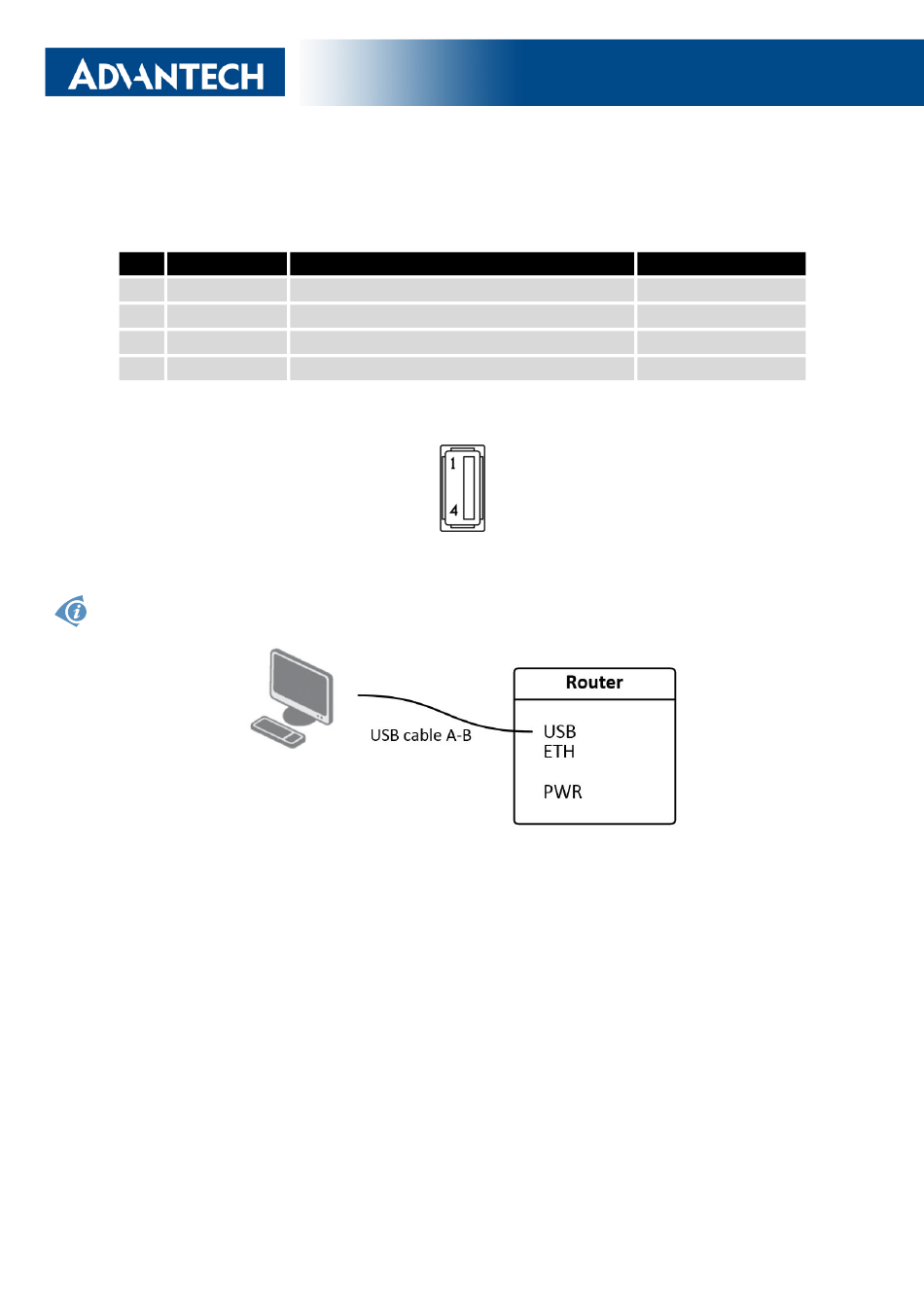

Example of the USB router connection:
Figure 14: USB – Example of router connection
Description
Positive pole of 5 V DC supply voltage
USB data signal – negative pole
USB data signal – positive pole
Negative pole of DC supply voltage
Table 6: Connection of USB connector
Figure 13: USB connector
15
ER75s
Data flow direction
Input/Output
Input/Output
