EDGE Industrial Router
ER75i v2
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B+B SmartWorx ER75i v2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Advantech B+B SmartWorx ER75i v2

Summary of Contents for Advantech B+B SmartWorx ER75i v2

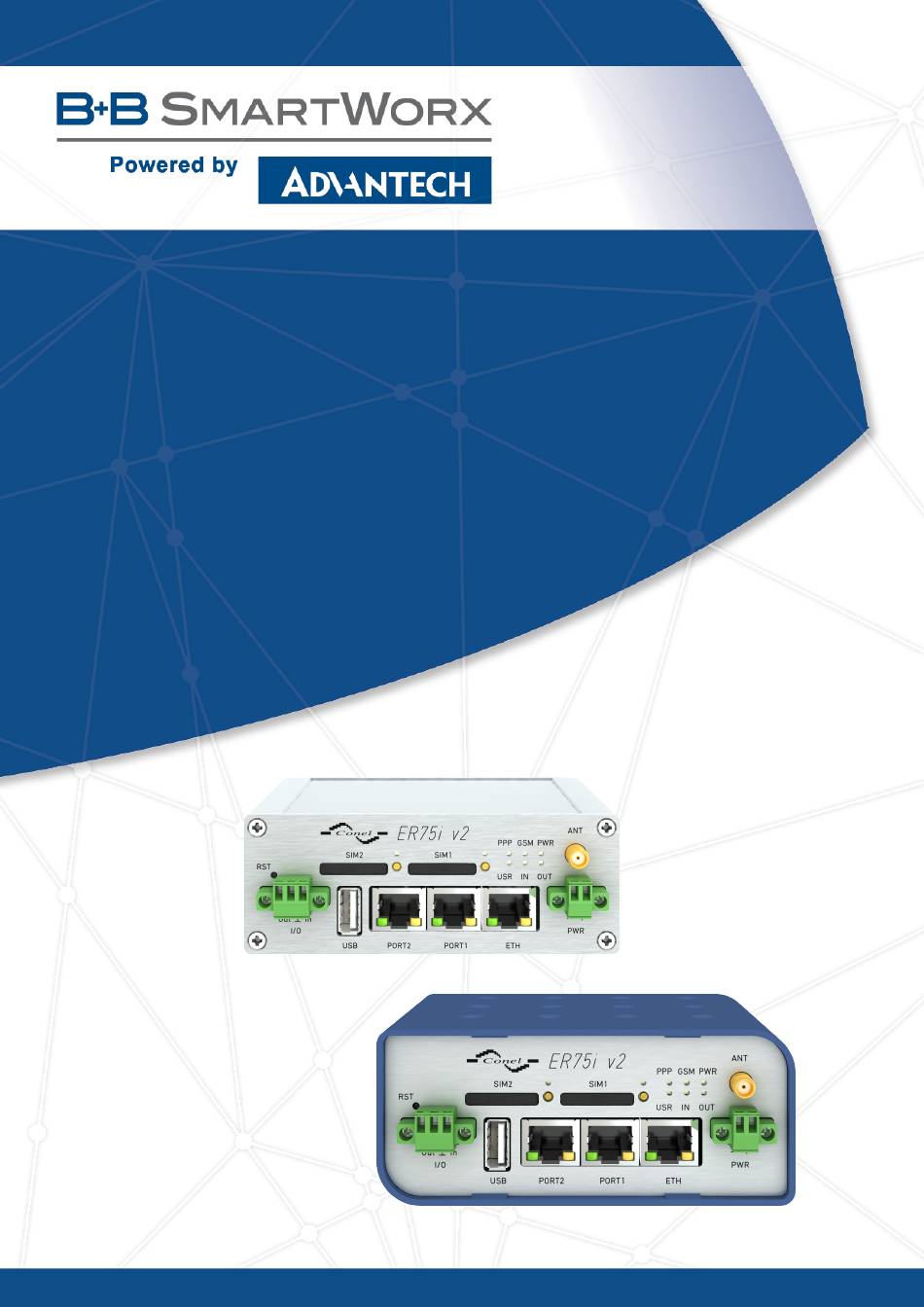

  • Page 1 EDGE Industrial Router ER75i v2 USER’S MANUAL...
  • Page 2 GPL licence Source codes under GPL licence are available free of charge by sending an email to: cellularsales@advantech-bb.com. Advantech B+B SmartWorx s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Manual Rev. 1 released in CZ, July 25, 2016...

  • Page 3: Table Of Contents

    CONTENTS Contents 1 Safety Instruction 2 WEEE directive 3 Router Description 4 Contents of Package 5 Router Design 5.1 Router versions ........5.2 Delivery identification .
  • Page 4 CONTENTS 7.1 Basic parameters ........7.2 Standards and regulations .
  • Page 5 LIST OF FIGURES List of Figures Contents of package ....... . . Front panel ER75i v2B .
  • Page 6 LIST OF TABLES List of Tables Router versions ........Delivery identification .

  • Page 7: Safety Instruction

    1. SAFETY INSTRUCTION 1. Safety Instruction Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. To prevent possible injury and damage to appliances and to ensure compliance with all relevant provisions, use only the original accessories.

  • Page 8: Weee Directive

    2. WEEE DIRECTIVE 2. Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2002/96/EC) directive has been introduced to ensure that electrical/electronic products are recycled using the best available recovery techniques to minimize the impact on the environment. This product contains high quality materials and components which can be recycled.

  • Page 9: Router Description

    3. ROUTER DESCRIPTION 3. Router Description EDGE industrial router ER75i v2 is used to wirelessly connect various equipments and de- vices via Ethernet interface 10/100 to the Internet or intranet. Thanks to high security level and wide coverage of GPRS/EDGE technology provided by mobile phone operators, it is mostly used in industrial applications, for remote maintenance and service of machines, or for data transfer from solar or wind power plants.

  • Page 10: Contents Of Package

    4. CONTENTS OF PACKAGE 4. Contents of Package Basic delivered set of router includes: router, power supply, crossover UTP cable, up to two external antennas, clip for the DIN rail, paper start guide. Figure 1: Contents of package Temperature range for power supply is reduced to 0 C to +40 C! As optional accessories can also be supplied the following expansion ports (one for Basic version or two for Full version): RS232, RS485/422, MBUS, ETHERNET, CNT, SWITCH, WIFI, WMBUS or SDH.

  • Page 11: Router Design

    5. ROUTER DESIGN 5. Router Design 5.1 Router versions ER75i v2 router is supplied in the following versions (see table below). All versions are available in plastic or metal box according to customer requirements. Router versions Router Box ER75i v2B Plastic ER75i v2B SL Metal...

  • Page 12: Label Er75I V2B

    5. ROUTER DESIGN 5.2 Delivery identification Trade name Type name Other ER75i v2B ER-75i-v2 Basic version in the plastic box ER75i v2B SL ER-75i-v2 Basic version in the metal box ER75i v2F ER-75i-v2 Full version in the plastic box ER75i v2F SL ER-75i-v2 Full version in the metal box Table 2: Delivery identification...

  • Page 13: Ordering Codes For Basic Versions

    5. ROUTER DESIGN 5.3 Order codes 5.3.1 Basic versions Expansion port Ordering code Version without expansion port ER75i v2B set Version with Ethernet expansion port ER75i v2B ETH set Version with RS232 expansion port ER75i v2B RS232 set Version with RS485 expansion port ER75i v2B RS458 set Version with MBUS expansion port ER75i v2B MBUS set...

  • Page 14: Basic Dimensions Of Plastic Box (Bottom And Front View)

    5. ROUTER DESIGN 5.4 Basic dimensions of the router box 5.4.1 Plastic box Figure 12: Basic dimensions of plastic box (bottom and front view) 5.4.2 Metal box Figure 13: Basic dimensions of metal box (bottom and front view)

  • Page 15: Space Around Antennas (Plastic)

    5. ROUTER DESIGN 5.5 Mounting recommendations possibility to be put on a work surface, DIN rail EN 60715 with included clip CPD2 (or CKD2 for metal version). For the most of applications with a built-in router in a switch board it is possible to recognize two kinds of environments: no public and industry environment of low voltage with high interference, public environment of low voltage without high interference.

  • Page 16: Cable Routing (Plastic)

    5. ROUTER DESIGN For every cables we recommend to bind the bunch, we recommend for this use: – Length of the bunch (combination of power supply and data cables) can be maxi- mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable leads towards the switch –...

  • Page 17: Default Position Of Din Holder

    5. ROUTER DESIGN 5.6 Removing from the DIN rail DIN holder is suitable for DIN rail according to EN 60715 standard only. Default position of CPD2 holder (or CKD2 for metal version), which is used for mounting the router on a DIN rail, is shown in the following figure: Figure 20: Default position of DIN holder For removing from the DIN rail it is necessary to lightly push upward the router so that the...

  • Page 18: Front Panel Er75I V2F

    5. ROUTER DESIGN 5.7 Description of the front panel On the front panel is the following: Caption Connector Description 2-pin Connector for the power supply. RJ45 Connector for connection into the local computer network. PORT1 RJ45 Connector for expansion port RS232, RS458/422, MBUS, ETHERNET, CNT or SWITCH.

  • Page 19: Status Indication

    5. ROUTER DESIGN 5.7.1 Status indication About router status inform eight LED indicators on the front panel. ETH port, PORT1 and PORT2 have two additional LEDs that provide information about port status. Caption Color State Description Green Blinking Router is ready Starting of the router Fast blinking Updating firmware...

  • Page 20: Power Connector

    5. ROUTER DESIGN 5.7.2 Power connector PWR Panel socket 2-pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+9 to +36 V DC) GND(-) Negative pole of DC supply voltage Table 7: Connection of power connector Figure 23: Power connector Power supply for router is required between +9 V to +36 V DC supply.

  • Page 21: Connecting Of The Antenna

    5. ROUTER DESIGN 5.7.3 Antenna connector ANT (and AUX) Main antenna is connected to the router using the SMA connector on the front panel. If WIFI or WMBUS expansion port is equipped on customer’s request, the second SMA antenna connector is also available on the front panel. Through this connector can be connected the additional antenna (it is reverse connector R-SMA in case of the WIFI expansion port).

  • Page 22: Ejected Sim Holder

    5. ROUTER DESIGN 5.7.4 SIM card reader The SIM card reader for 3 V and 1,8 V SIM cards is placed on the front panel of the router. For getting the router to work is necessary to insert an activated SIM card with an unblocked PIN code.

  • Page 23: Ethernet Connector

    5. ROUTER DESIGN 5.7.5 Ethernet Port ETH Panel socket RJ45. Signal mark Description Data flow direction TXD+ Transmit Data – positive pole Input/Output TXD- Transmit Data – negative pole Input/Output RXD+ Receive Data – positive pole Input/Output — — — —...

  • Page 24: Port1 Cable Connection

    5. ROUTER DESIGN 5.7.6 PORT1 The PORT1 is equipped on customer’s request with one of the offered expansion ports: RS232 MBUS RS485 RS422 SWITCH (together with PORT2) ETHERNET Description and examples of expansion ports connection can be found in user’s guide for corresponding expansion port.

  • Page 25: Port2 Cable Connection

    5. ROUTER DESIGN Plug cable for the second expansion port into the RJ45 connector labeled as PORT2 (see figure below). Figure 30: PORT2 cable connection 5.7.8 USB Port Panel socket USB-A. Signal mark Description Data flow direction +5 V Positive pole of 5 V DC supply voltage, 0.5 A USB data - USB data signal –...

  • Page 26: O Connector

    5. ROUTER DESIGN Figure 32: I/O connector I/O user interface is designed for processing of binary input and control (setting) binary output. Binary output is not switched to ground in the default configuration. Maximum load binary output is 30 V / 100 mA. The constant current supplied by the binary input is 3 mA. Connect I/O cable into the I/O connector on the front panel of the router and tighten locking screws (see figure below).

  • Page 27: Router Reset

    5. ROUTER DESIGN 5.7.10 Reset When PWR LED starts flashing on the front panel, it is possible to restore the default con- figuration of the router by pressing the RST button on the front panel. After pressing this button the default configuration is restored and then router reboots (green LED will be on). For pressing the RST button could be used a narrow screwdriver.

  • Page 28: First Use

    6. FIRST USE 6. First Use 6.1 Connecting the router before first use Before putting the router into operation it is necessary to connect all components which are required to run your applications. Don’t forget to insert SIM card. The router can not operate without connected antenna, SIM card and power supply. If the antenna is not connected, router can be damaged.

  • Page 29: Entering The Ip Address Of The Router

    6. FIRST USE 6.2 Start The router is put into operation when the power supply is connected to this router. By default, the router will automatically start to log on to the default APN. DHCP server will start to assign addresses for devices on the Ethernet port ETH0. Router behavior can be changed via the web interface.

  • Page 30: Router Web Interface

    6. FIRST USE After successfully entering login information user gains access to the router via his internet browser. Figure 39: Router web interface A detailed description of the router settings via the Web interface can be found in the document Configuration manual for v2 routers.

  • Page 31: Technical Parameters

    7. TECHNICAL PARAMETERS 7. Technical Parameters 7.1 Basic parameters ER75i v2 Temperature range Operating -40 C to +70 C Storage -40 C to +85 C Humidity Operating 0 to 95 % relative humidity non condensing Storage 0 to 95 % relative humidity non condensing Altitude Operating 2000 m / 70 kPa...

  • Page 32: Technical Parameters Of Module

    7. TECHNICAL PARAMETERS 7.3 Technical parameters of module EDGE module Frequency bands EGSM850, EGSM900, GSM1800 and GSM1900 Transmit power Class 4 (2 W) for EGSM850 Class 4 (2 W) for EGSM900 Class 1 (1 W) for GSM1800 Class 1 (1 W) for GSM1900 Table 14: Technical parameters of module 7.4 Technical parameters of processor 32b ARM microprocessor...

  • Page 33: Recommended Literature

    8. RECOMMENDED LITERATURE 8. Recommended Literature Advantech B+B SmartWorx: Start guide for v2 routers, Advantech B+B SmartWorx: Configuration manual for v2 routers, Advantech B+B SmartWorx: User’s manual – Expansion port RS232, Advantech B+B SmartWorx: User’s manual – Expansion port RS485/422, Advantech B+B SmartWorx: User’s manual –...

  • Page 34: Troubleshooting

    9. TROUBLESHOOTING 9. Troubleshooting If you can not connect to the router from your PC, your network card may be configured the way it is not possible to connect to the router. Take one or more of the following steps to solve the problem: Select the communication rate 10 MB/s in the properties of your network card.
  • Page 35 9. TROUBLESHOOTING Ethernet connection fails or isn’t establishing. It is possible to turn auto negotiation off and set a rate and duplex manually on the Ethernet interface of the router. DynDNS doesn’t function. With private APN this is not functional. If the same IP address is recorded in your canonic name as dynamically assigned address, it means that the operator is using NAT or firewall.

  • Page 36: Customers Support

    During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Advantech B+B SmartWorx s.r.o. hereby declares that the router narrated in this user’s guide fits all basic demands of directive 1999/5/EC (R&TTE). Router fits values of coefficient SAR defined by association ICNIRP and values of "About protection of health before non-ionized radiation".

This manual is also suitable for:

B+b smartworx er75i v2bB+b smartworx er75i v2b slB+b smartworx er75i v2fB+b smartworx er75i v2f sl
