Page 1: User Manual

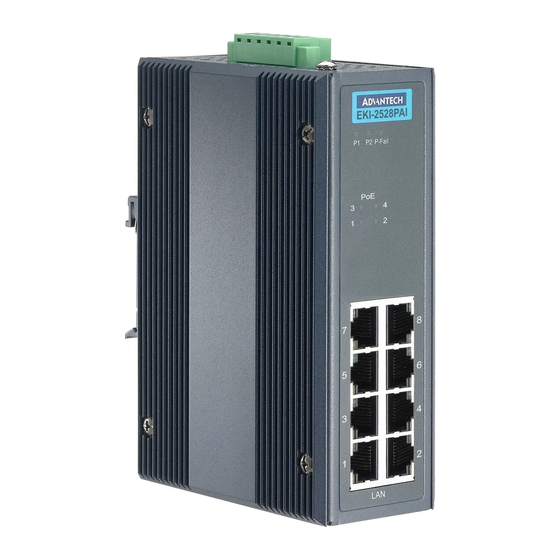

EKI-2528PAI 8-port Industrial Unmanaged Ethernet Switch with 4-port PoE User Manual... - Page 2 The documentation and the software included with this product are copyrighted 2007 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd.
- Page 3 Because of Advantech′s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight.
- Page 4 Step 2. Contact your distributor, sales representative, or Advantech’s customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number...
- Page 5 Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User's Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.
- Page 6 Don't touch any components on the CPU card or other cards while the PC is 2. Disconnect power before making any configuration changes. The sudden rush of power as you connect a jumper or install a card may damage sensitive electronic components. EKI-2528PAI Manual ed1.doc ed1...
-
Page 7: Table Of Contents
Table 2.1: EKI-2528PAI LED Definition .....9 2.2 Dimensions (units: mm) ........10 Figure 2.1: Front View of EKI-2528PAI.....10 Figure 2.2: Side View of EKI-2528PAI ......11 Figure 2.3: Rear View of EKI-2528PAI......12 Figure 2.4: Top View of EKI-2528PAI.......13 2.3 Mounting ............14 2.3.1 Wall mounting.......... - Page 8 EKI-2528PAI Manual ed1.doc ed1 viii...
- Page 9 Overview Sections include: Introduction Features Specifications Packing List Safety Precaution Chapter1...
-
Page 10: Overview
Fail LED will turn on and send an alarm through a relay output for notifying user. 1.1.4 Flexible Mounting EKI-2528PAI is extremely compact (48.6 x 140 x 95 mm) and can be mounted on a DIN-rail or a panel, so it is suitable for any space-constrained environment. 1.1.5... - Page 11 LED indicators make troubleshooting quick and easy. Each 10/100 Base-TX port has 2 LEDs that display the link status, transmission speed and collision status. Also the three power indicators P1, P2 and P-Fail help you diagnose immediately. Chapter1...
-
Page 12: Features
• Provides surge protection (EFT) 3,000 V for power line • Supports 6,000 V ESD protection for Ethernet • Supports +24/48 V power input • Provides flexible mounting: DIN-rail, Wall Mounting • Supports operating temperature from -40 ~ 75 ℃ EKI-2528PAI Manual ed1.doc ed1... -
Page 13: Specification
1.3 Specification Communications IEEE 802.3, 802.3u, 802.3x, 802.3af Compatibility 10/100Base-TX Up to 100 m Transmission Distance Up to 100 Mbps Transmission Speed Interface 8 x RJ-45 Connectors 6-pin removable screw terminal (power & relay) Unit: P1, P2, P-Fail LED Indicators TX port: Link/Active, Duplex/Collision Power 72 Watts (Max.)@48 V... - Page 14 Certifications U.S.A.: FCC Part 15 CISPR 22 IEC61000-4-2/3/4/5/6/8 EN61000-6-1/2/3/4 IEC60068-2-32 Free Fall IEC60068-2-27 Shock IEC60068-2-6 Vibration EKI-2528PAI Manual ed1.doc ed1...
-
Page 15: Packing List
1.4 Packing List • 1 x EKI-2528PAI Industrial Ethernet Switch • 1 x eAutomation Industrial Communication CD-ROM and User manual • 2 x Wall Mounting Bracket and Screws • 1 x DIN-rail Mounting Bracket and Screws • 1 x EKI-2528PAI Startup Manual •... - Page 16 Installation Sections include: LED Indicators Dimensions Mounting Network Connection Power Connection EKI-2528PAI Manual ed1.doc ed1...
-
Page 17: Installation
2.1 LED Indicators There are few LEDs display the power status and network status located on the front panel of EKI-2528PAI, each of them has its own specific meaning as the table below. Table 2.1: EKI-2528PAI LED Definition Color... -
Page 18: Dimensions (Units: Mm)
2.2 Dimensions (units: mm) Figure 2.1: Front View of EKI-2528PAI EKI-2528PAI Manual ed1.doc ed1... -
Page 19: Figure 2.2: Side View Of Eki-2528Pai
Figure 2.2: Side View of EKI-2528PAI Chapter2... -
Page 20: Figure 2.3: Rear View Of Eki-2528Pai
Figure 2.3: Rear View of EKI-2528PAI EKI-2528PAI Manual ed1.doc ed1... -
Page 21: Figure 2.4: Top View Of Eki-2528Pai
Please refer to page 16 for pin assignment. Figure 2.4: Top View of EKI-2528PAI Chapter2... -
Page 22: Mounting
EKI-2528PAI can be wall-mounted by using the included mounting kit. Then, hang on the EKI-2528PAI to the nails on the wall. First, use the screws included in the package to combine the EKI-2528PAI and metal mounting kit. And then you can install the device firmly via the components, please see Figure 2.5 as below. -
Page 23: Din-Rail Mounting
The DIN-rail kit is screwed on the industrial switch when out of factory. If the DIN-rail kit is not screwed on the industrial switch, please screw the DIN-rail kit on the switch first. First, hang the EKI-2528PAI to the DIN-rail with angle of inclination. See figure 2.6. Figure 2.6: Installation to DIN-rail Step 1... -
Page 24: Figure 2.7: Installation To Din-Rail Step 2
Then, let the device down straight to slide over the rail smoothly. See Figure 2.7 Figure 2.7: Installation to DIN-rail Step 2 EKI-2528PAI Manual ed1.doc ed1... -
Page 25: Network Connection
2.4 Network Connection The EKI-2528PAI has 6 x RJ-45 ports that support connection to 10 Mbps Ethernet, or 100 Mbps Fast Ethernet, and half or full duplex operation. EKI-2528PAI can be connected to other hubs or switches through a twisted-pair straight through the cable or a crossover cable up to 100m long. -
Page 26: Troubleshooting
Troubleshooting EKI-2528PAI Manual ed1.doc ed1... -
Page 27: Chapter 3 Troubleshooting
Chapter 3 Troubleshooting Power Input Verify that is using the right power cord/adapter 48 V , please don’t use the power adaptor with DC output voltage higher than 48V, or it will burn this converter down. Cable Select the proper UTP cable to construct user network. Please check that is using the right cable. - Page 28 Pin Assignment & Wiring EKI-2528PAI Manual ed1.doc ed1...
-
Page 29: Appendix A Pin Assignment & Wiring
Appendix A Pin Assignment & Wiring It is suggested to adopt ELA/TIA as the wiring of the RJ-45. Figure A.1: RJ-45 Pin Assignment Figure A.2: EIA/TIA-568B Figure A.2: EIA/TIA-568A Chapter2...
